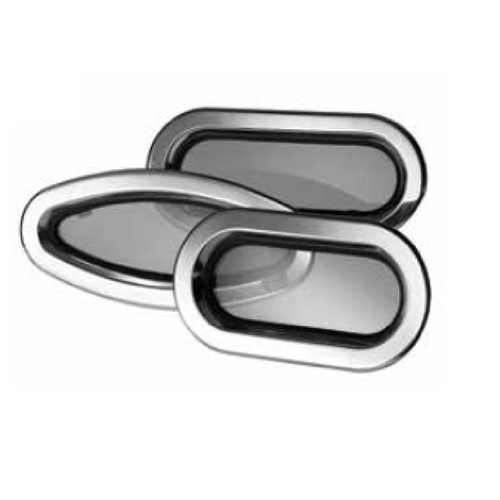

Portlight - Stainless Steel - Opening

Manufactured from mirror polished stainless steel, these portlights are supplied fitted with friction hinges and low profile handles. The portlights present a modern clean look, thanks to the hinge positioning and integrated handles which allow a clear view. This range can be installed on 9mm to 30mm thick surfaces.

Features:

• Join-less polished stainless steel outer frame
• Handles and hinges are fitted to the outer edge of the lens for unobstructed visibility
• Quick action closing handles
• Friction hinges to hold the smoked acrylic window open
• White ABS trim (Chrome for size 8), including insect screen
• CE Approved for Area 2A

  Other Details:

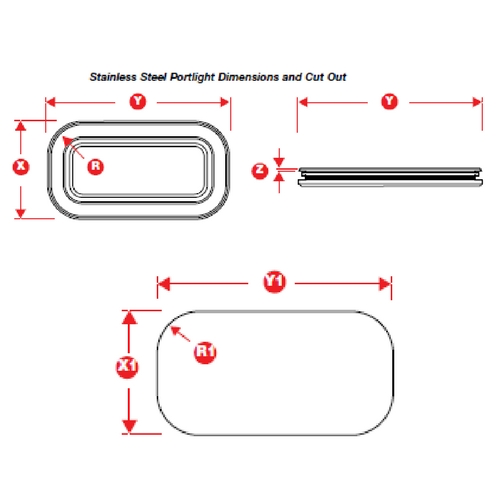

  BLA Code	Size	Version	Trim Colour	Outside X x Y L x W mm	Cut Out X1 x Y1 L x W mm	Radii R mm	Radii R1 mm	Height Z mm	Acrylic mm
  170980	0	Opening	White	176 x 323	156 x 303	62	52	4	8
  170982	1	Opening	White	191 x 367	171 x 347	62	52	4	8
  170984	1RE	Opening	White	191 x 367	171 x 347	95.5	85.5	4	10
  170986	7RE	Opening	White	191 x 425	171 x 405	95.5	85.5	4	10
  170988	8	Opening	Chrome	196 x 452	Refer Instructions	N/A	-	4	10
