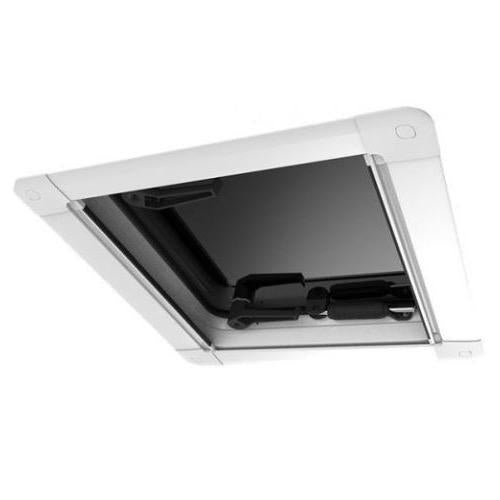

Roller Screen

Easy to assemble, fit, maintain and adjust, our new shade range is the perfect addition to our great hatch & portlight range. All components have been specially selected for their suitability in withstanding the harsh marine environment. The chosen polymers and fabrics are designed to look good within the interior of any boat and are easy to keep clean and offer excellent resistance to damp conditions. Simple and clean in design our range will complement the internal styling of your boat and provide you with a perfect solution to insect and light protection.

Materials & Functions

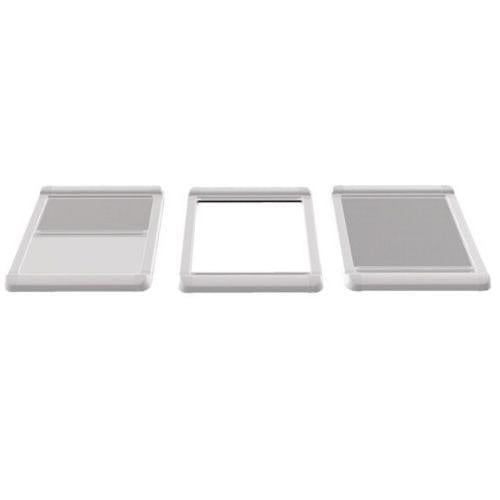

• Flyscreen material - allowing airflow whilst keeping insects out
• Blackout material - water repellent, UV stable & wipe clean
• Sleek aesthetic handle system which locks in place with magnets
• Easy to operate, magnet system to connect both shades

  In the Box
• Delivered pre-assembled in 4 pieces to reduce box size & distributor storage space
• Sides snap onto end assemblies
• Rubber seal can then be pushed into the groove
• Trim can be added (sold separately)

  Mounting & Integration
• Mounting through headlining with optional extra PVC flexible trim
• Each edge has double-sided foam tape, along with a screw in each corner to secure
• Mounting with supplied silicon seal

  Maintenance & Installation
• Tension in blind can be adjusted to account for different mountings
  ie: Horizontal - Vertical
• Pop off magnetic cover
• Release spring lock
• Adjust 1 turn at a time. CW to loosen, CCW to tighten
• Push spring lock back into housing ensuring its seated correctly
• Test by pulling blind fully out. Repeat adjustment if necessary
• Return cover

  Internal Workings
• Easy to disassemble
• All fittings snap-fit
• All none plastic parts made from 316-grade stainless steel to avoid corrosion

  Other Details:



  BLA Code	Size	Internal (mm)		External (mm)
  		W	Z	X	Y
  170320	10	262	262	344	398
  170322	20	349	204	431	340
  170324	30	459	329	541	465
  170326	40	423	423	505	559
  170328	44	444	444	526	580
  170329	50	509	379	591	515
  170330	54	509	394	591	530
  170332	60	509	509	591	645
  170334	70	629	629	711	765
