VETUS DECK HATCH, CUT-OUT SIZE 424 X 294MM, R=75MM, TYPE PLANUS 4532 CATEGORY A II

Stylish budget model!

These hatches have a satin sheen anodized aluminum frame with a 75 mm corner radius and a 10 mm ‘dark smoke’ coloured acrylic lid. A friction hinge allows the hatches to remain open at any angle up to 180°. Type PLANUS is suitable for design category A, Area II. The first image is one version of our PLANUS hatches. The hatches differ in shape and in the number of hinges, adjusters and handles. This information can be found in the additional information.



Satin sheen anodized aluminum frame. “Dark smoke” coloured acrylic. Lid can be held open at any angle up to 90°.

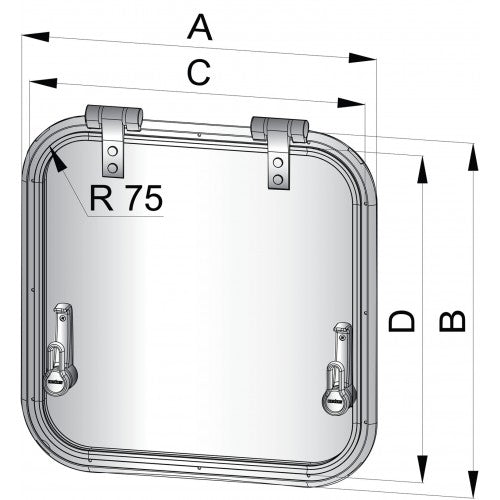

EXTERNAL DIMENSIONS A X B (MM), 474 x 344

CUT-OUT DIMENSIONS C X D (MM), 424 x 294

NUMBER OF HINGES, 2

NUMBER OF ADJUSTERS, dna

NUMBER OF HANDLES, 2

TYPE MOSQUITO SCREEN, No
