Airmar B164 50/200kHz, 1kW, 0° Tilted Element™, Raymarine A, DT

SKU: B164-0-RAY

$1,899.00 $1,928.88

Description

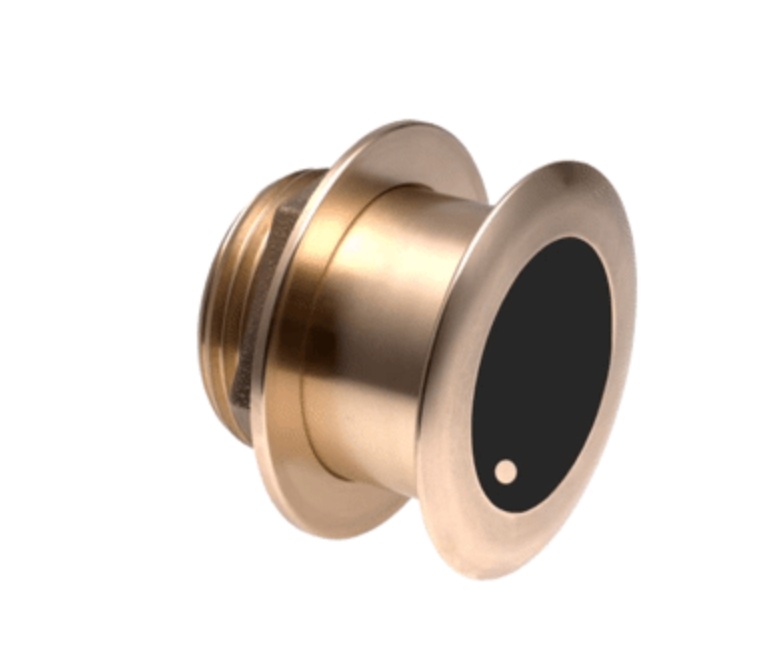

Step up to 1 kW — without a fairing. The Airmar B164 is a 1 kW flush-mount, Tilted Element™ thru-hull transducer perfect for fast, trailered vessels that cannot accommodate a high-performance fairing. The bronze housing extends less than 6.35 mm (1/4") below the hull, so it can sit on trailer rollers and bunks without issue. The ceramic arrays are tilted inside the housing, providing a perfect vertical beam with maximum energy directed straight down.

Available in three Tilted Element models:

Fixed 20° — for 16° to 24° hull deadrise angles
Fixed 12° — for 8° to 15° hull deadrise angles
Fixed 0° — for 0° to 7° hull deadrise angles

This listing is for the 0° Tilted Element version with a Raymarine 9-Pin (RAYA) connector, suited for hull deadrise angles of 0° to 7°. Bronze housing — suitable for fibreglass or wood hulls.

Features

Depth and fast-response water temperature sensing
1 kW power output

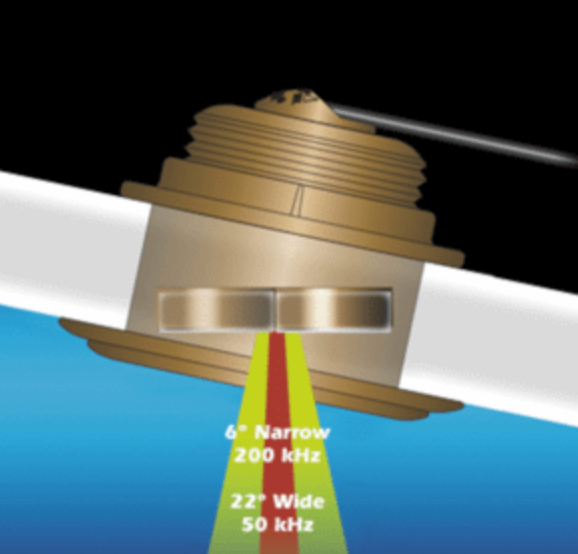

Dual-frequency elements:
- 50 kHz — 22° beamwidth, max depth 549 m (1,800')
- 200 kHz — 6° beamwidth, max depth 244 m (800')
Interfaces with any 600 W or 1 kW echosounder
Low-profile bronze housing — extends less than 6.35 mm (1/4") below the hull
No effect on boat running performance
Engineered for centre-console and trailered boats
Bronze housing for fibreglass or wood hulls
Also available in stainless steel housing (SS164) for all hull materials
Patented Xducer ID® technology

Specifications

Power Rating: 1 kW
Frequency: 50 / 200 kHz (Conventional Dual Frequency)
Beamwidth: 22°x20° (50 kHz) / 6° (200 kHz)
Max Depth: 549 m (1,800') at 50 kHz | 244 m (800') at 200 kHz
Tilt Angle: 0°
Deadrise Range: 0° to 7°
Max Deadrise: Up to 24°
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Housing Material: Bronze
Hull Compatibility: Fibreglass or wood
Acoustic Window: Urethane
Hole Size: 95 mm (3-3/4")
Usable Shaft Length: 71 mm (2.80")
Cable Length: 10 m (33')
Connector: Raymarine 9-Pin (RAYA)
Mix and Match Series: 9-Pin 1000 Watt
Max Vessel LOA: Up to 11 m (36')
Weight: 2.7 kg (6 lb)
Common Use: Fishing, Leisure/Yachting
Country of Origin: USA
