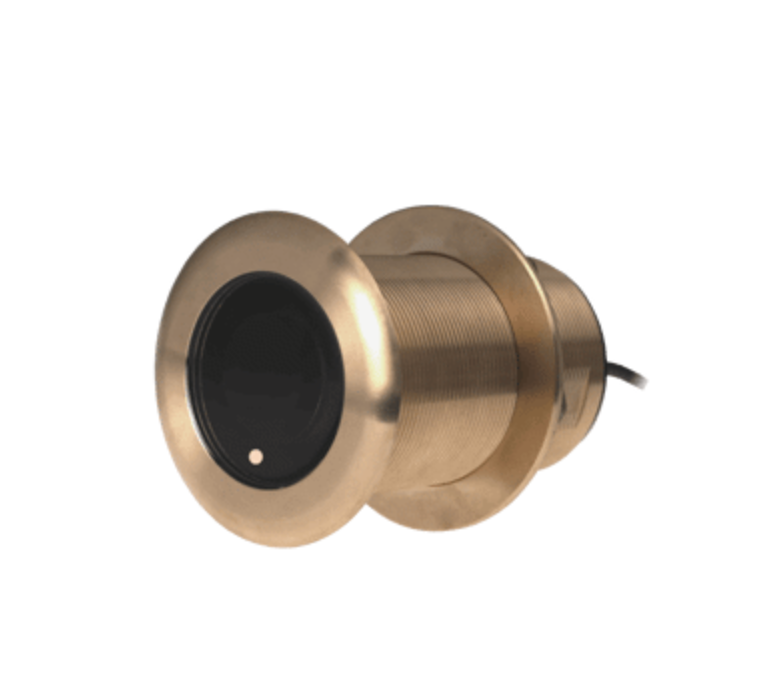

Airmar B75 Medium CHIRP, 600W, 12° Tilted Element™, Raymarine 11-Pin, DT

SKU: B75C-12-M-11R

$1,279.00 $1,305.85

Description

Airmar's low-profile, CHIRP-ready B75M transducer is the perfect addition to smaller boats such as centre consoles. Operating in the medium-frequency band (80–130 kHz), it delivers up to 50 kHz of total bandwidth in a single installation — with outstanding bottom detail in shallow and medium depths down to 274 m (900'). The medium band offers greater depth penetration than high-frequency transducers while maintaining excellent resolution.

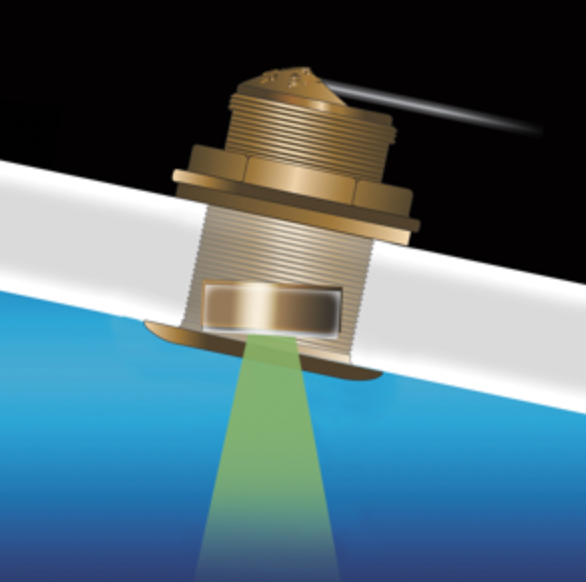

The B75M uses Airmar's patented Tilted Element™ technology, with the ceramic element fixed at a set angle within the housing. When installed flush to the hull, the tilt corrects for hull deadrise, orienting the beam directly downward for maximum echo returns and more accurate depth readings.

Available in three Tilted Element models:

Fixed 20° — for 16° to 24° hull deadrise angles
Fixed 12° — for 6° to 15° hull deadrise angles
Fixed 0° — for 0° to 7° hull deadrise angles

This listing is for the 12° Tilted Element version with a Raymarine 11-Pin connector, suited for hull deadrise angles of 8° to 15°. Available as an OEM connector model or as a Mix and Match™ version (9 m cable with standard connector + 1 m adapter). Bronze housing — suitable for fibreglass or wood hulls.

Features

Depth and fast-response water temperature sensing
600 W power output — max depth 274 m (900')
Medium frequency: 80–130 kHz | Beamwidth: 24°–16°
Good shallow-water performance and bottom detail with deeper reach than high-frequency band
Low-profile thru-hull housing — good display resolution at speed
Suitable for stepped, planing, or displacement hulls
Bronze housing for fibreglass or wood hulls
Also available in stainless steel housing (SS75M) for all hull materials
Patented Xducer ID® technology

Specifications

Power Rating: 600 W
Frequency: 80–130 kHz (Medium Band, CHIRP-Ready Single-Band)
Beamwidth: 24°–16°
Max Depth: 274 m (900')
Tilt Angle: 12°
Deadrise Range: 8° to 15°
Max Deadrise: Up to 24°
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Housing Material: Bronze
Hull Compatibility: Fibreglass or wood
Acoustic Window: Urethane
Cable Length: 10 m (33')
Connector: Raymarine 11-Pin (11R)
Mix and Match Series: 12-Pin CHIRP
Hole Size: 70 mm (2-13/16")
Usable Shaft Length: 95 mm (3.75")
Max Vessel LOA: Up to 8 m (26')
Weight: 1.4 kg (3 lb)
Common Use: Fishing
Cross Reference: A80034
Country of Origin: USA
