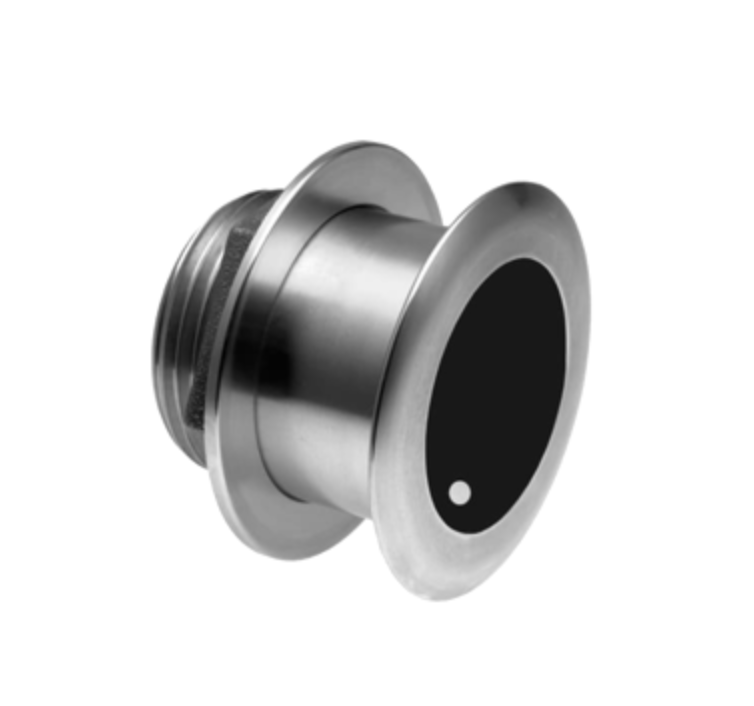

Airmar SS175 Low Chirp, 1kW, 12° Tilted Element™, Raymarine 11-Pin, DT

SKU: SS175C-12-L-11R

$2,999.00 $3,179.00

Description

Airmar's low-profile, CHIRP-ready SS175L transducer is the perfect addition to smaller boats such as centre consoles. Operating in the low-frequency band (40–60 kHz), it delivers excellent deep-water coverage and tracking — up to 762 m (2,500') depth — with 1 kW of power and up to 20 kHz of total bandwidth in a single installation.

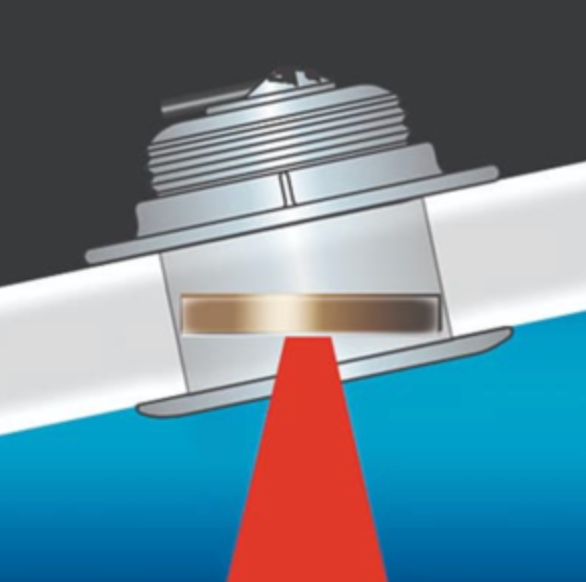

The SS175L uses Airmar's patented Tilted Element™ technology, with the ceramic element fixed at a set angle within the housing. When installed flush to the hull, the tilt corrects for hull deadrise, orienting the beam directly downward for maximum echo returns and more accurate depth readings.

Available in three Tilted Element models:

Fixed 20° — for 16° to 24° hull deadrise angles
Fixed 12° — for 8° to 15° hull deadrise angles
Fixed 0° — for 0° to 7° hull deadrise angles

This listing is for the 12° Tilted Element version with a Raymarine 11-Pin connector. Available as an OEM connector model or as a Mix and Match™ version (9 m cable with standard connector + 1 m adapter).

Features

Depth and fast-response water temperature sensing
1 kW power output — max depth 762 m (2,500')
Low frequency: 40–60 kHz | Beamwidth: 32°–21°
Low-profile thru-hull housing — good display resolution at speed
Suitable for stepped, planing, or displacement hulls
Stainless steel housing — compatible with all hull materials
Patented Xducer ID® technology
Also available in bronze housing (B175L) for fibreglass or wood hulls

Specifications

Power Rating: 1 kW
Frequency: 40–60 kHz (Low Band, CHIRP-Ready Single-Band)
Beamwidth: 32°–21°
Max Depth: 762 m (2,500')
Tilt Angle: 12°
Deadrise Range: 8° to 15°
Max Deadrise: Up to 24°
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Housing Material: Stainless Steel
Acoustic Window: Urethane
Cable Length: 10 m (33')
Connector: Raymarine 11-Pin (11R)
Mix and Match Series: 12-Pin CHIRP
Hole Size: Fibreglass/wood 95 mm (3-3/4") | Metal 105 mm (4-1/8")
Max Vessel LOA: Up to 11 m (36')
Weight: 2.7 kg (6 lb)
Common Use: Fishing
Country of Origin: USA
