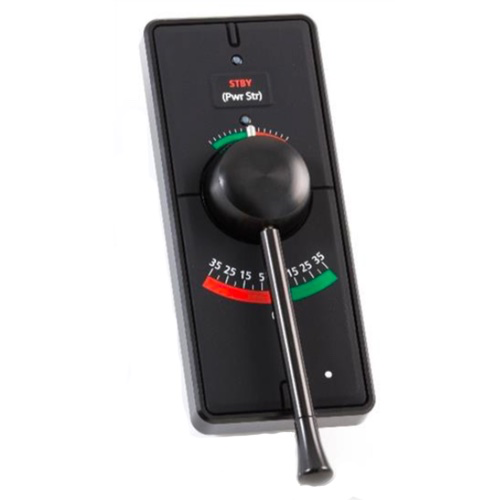

Raymarine Follow-On Tiller Controller for Evolution Autopilots A80532

SKU: A80532

$1,750.00 $1,869.00

Description

The Evolution Follow-On Tiller can be installed at bridge wing stations, aft docking stations, or even into the arms of pilothouse helm chairs. The intuitive design lets captains make precise steering adjustments with a simple turn of the lever or dial.

Key Features:

Brings precision power steering control to remote locations and auxiliary maneuvering stations
Sleek, low profile design enables fits to just about anywhere
Selectable proportional or bang-bang modes for steering or maneuvering applications
Simple SeaTalkng networking supports up to 4 remote tiller stations
Compatible with Evolution™ Autopilot Systems for Power Boats

Maximum Flexibility

The Follow-On Tiller controller supports both proportional (Full Follow-Up) and bang-bang (Non-Follow-Up) modes for maximum flexibility. The controller comes pre-fitted with a return spring to bring the controller back to the 0° center position automatically upon release. The return spring can be removed if desired.

In proportional mode, the rudder follows the tiller precisely, degree for degree, and the rudder returns to amidships whenever the tiller is in its center 0° position. In bang-bang mode, the amount of deflection of the tiller controls the speed of rudder travel in the direction signaled. Moving the tiller to the center 0° position stops the rudder immediately in position. The operator must always manually drive the rudder back to amidships in bang-bang mode.

The Follow-On Tiller controller is designed for use on Raymarine Evolution Autopilot Systems installed on powerboats only. It is not compatible with Evolution wheel drive, tiller drive, or linear drive systems configured for sailing vessels. Setup and calibration of the Follow-On Tiller Controller is easily performed using the system's primary autopilot control head or autopilot-enabled LightHouse 2 or LightHouse 3 Multifunction Displays.

General Specifications:

Steering Angle: +/- 35 degrees
Mounting Option: Surface Mount
Environment: Above deck to IPX6 and IPX7
Power Supply: 12V DC Via STNG
Current Consumption: 30mA
Housing: Front, anodised front panel, with rubberized keypad
Temperature: Operating -25 °C to +55 °C. Storage temperature -30 °C to +70 °C
Weight: 447g (15.77 oz)
Dimensions: 55mm (Width) x 133mm (Length) x 13mm (Height above mounting surface) / 20.4mm (Height below mounting surface) – Arm length 79.6mm
