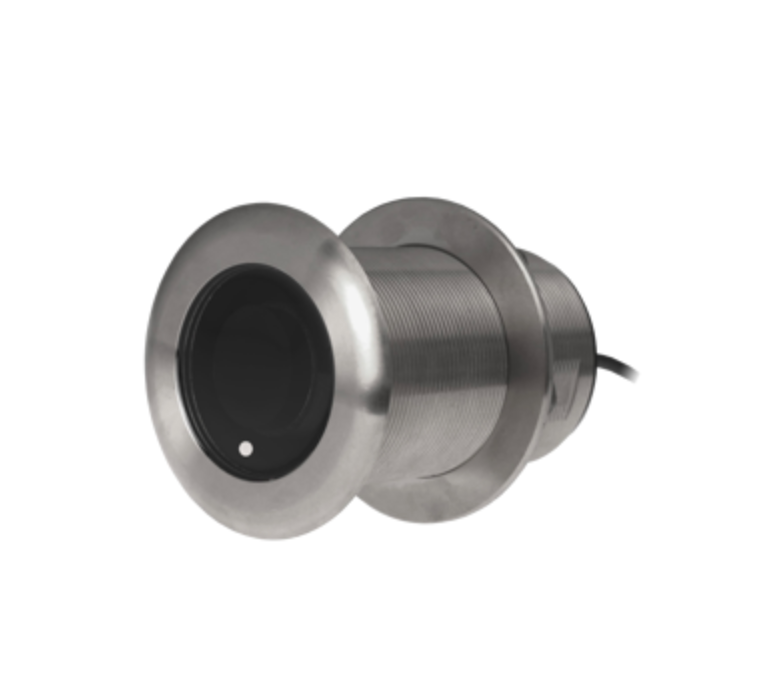

Airmar SS75 High CHIRP, 600W, 0° Tilted Element™, Raymarine 11-Pin, DT

SKU: SS75C-0-H-11R

$1,459.00 $1,569.19

Description

Airmar's low-profile, CHIRP-ready SS75H transducer is the perfect addition to smaller boats such as centre consoles. Operating in the high-frequency band (130–210 kHz), it delivers a narrow beamwidth ideal for pinpointing fish holding tight to wrecks, reefs, and structure — with outstanding target separation on baitfish and schooling gamefish. The SS75H delivers up to 80 kHz of total bandwidth in a single installation for exceptional bottom detail and fish-target resolution.

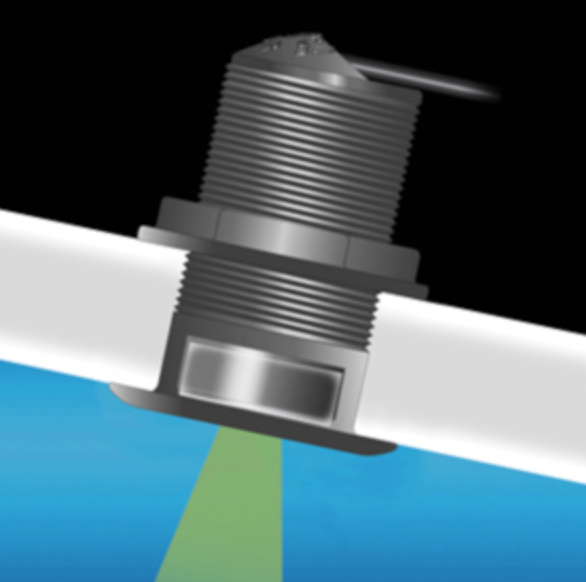

The SS75H uses Airmar's patented Tilted Element™ technology, with the ceramic element fixed at a set angle within the housing. When installed flush to the hull, the tilt corrects for hull deadrise, orienting the element horizontally for maximum echo returns.

Available in three Tilted Element models:

Fixed 20° — for 16° to 24° hull deadrise angles
Fixed 12° — for 6° to 15° hull deadrise angles
Fixed 0° — for 0° to 7° hull deadrise angles

This listing is for the 0° Tilted Element version with a Raymarine 11-Pin connector. Available as an OEM connector model or as a Mix and Match™ version (9 m cable with standard connector + 1 m adapter).

Features

Depth and fast-response water temperature sensing
600 W power output — max depth 214 m (700')
High frequency: 130–210 kHz | Beamwidth: 15°–9°
Excellent shallow-water performance, bottom detail, and clear fish-target returns
Low-profile thru-hull housing — good display resolution at speed
Suitable for stepped, planing, or displacement hulls
Stainless steel housing — compatible with all hull materials
Also available in bronze housing (B75H) for fibreglass or wood hulls
Patented Xducer ID® technology

Specifications

Power Rating: 600 W
Frequency: 130–210 kHz (High Band, CHIRP-Ready Single-Band)
Beamwidth: 15°–9°
Max Depth: 214 m (700')
Tilt Angle: 0°
Deadrise Range: 0° to 7°
Max Deadrise: Up to 24°
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Housing Material: Stainless Steel
Acoustic Window: Urethane
Cable Length: 10 m (33')
Connector: Raymarine 11-Pin (11R)
Mix and Match Series: 12-Pin CHIRP
Hole Size: Fibreglass/wood 70 mm (2-13/16") | Metal 79 mm (3-1/8")
Max Vessel LOA: Up to 8 m (26')
Weight: 1.4 kg (3 lb)
Common Use: Fishing, Commercial Fishing
Country of Origin: USA
