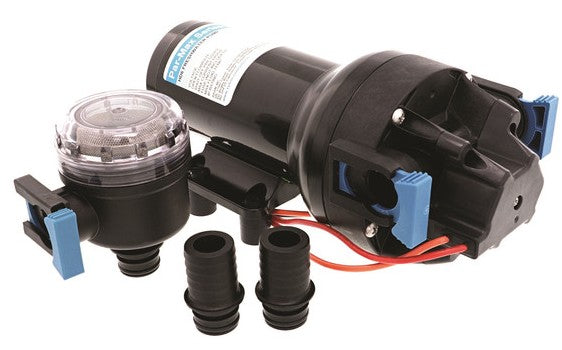

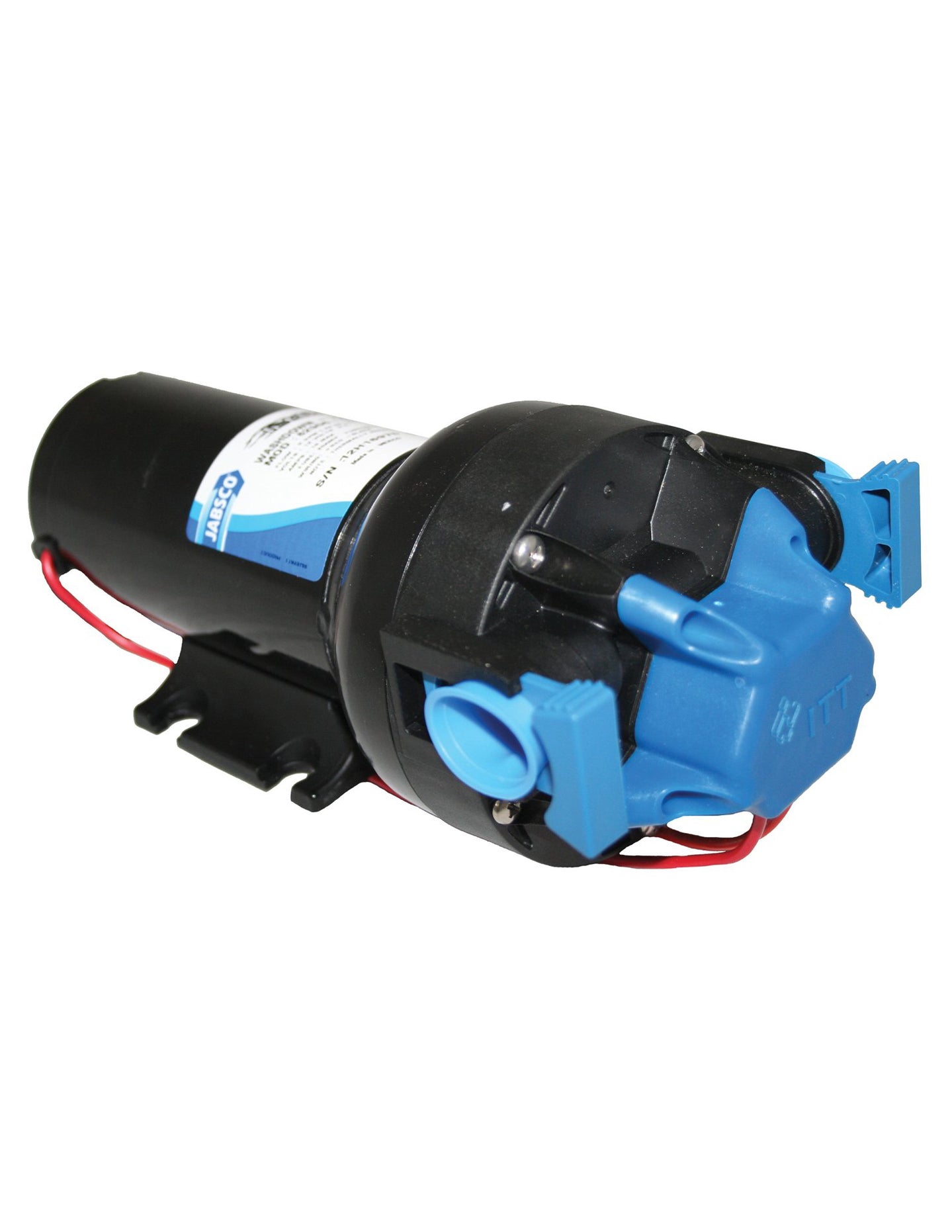

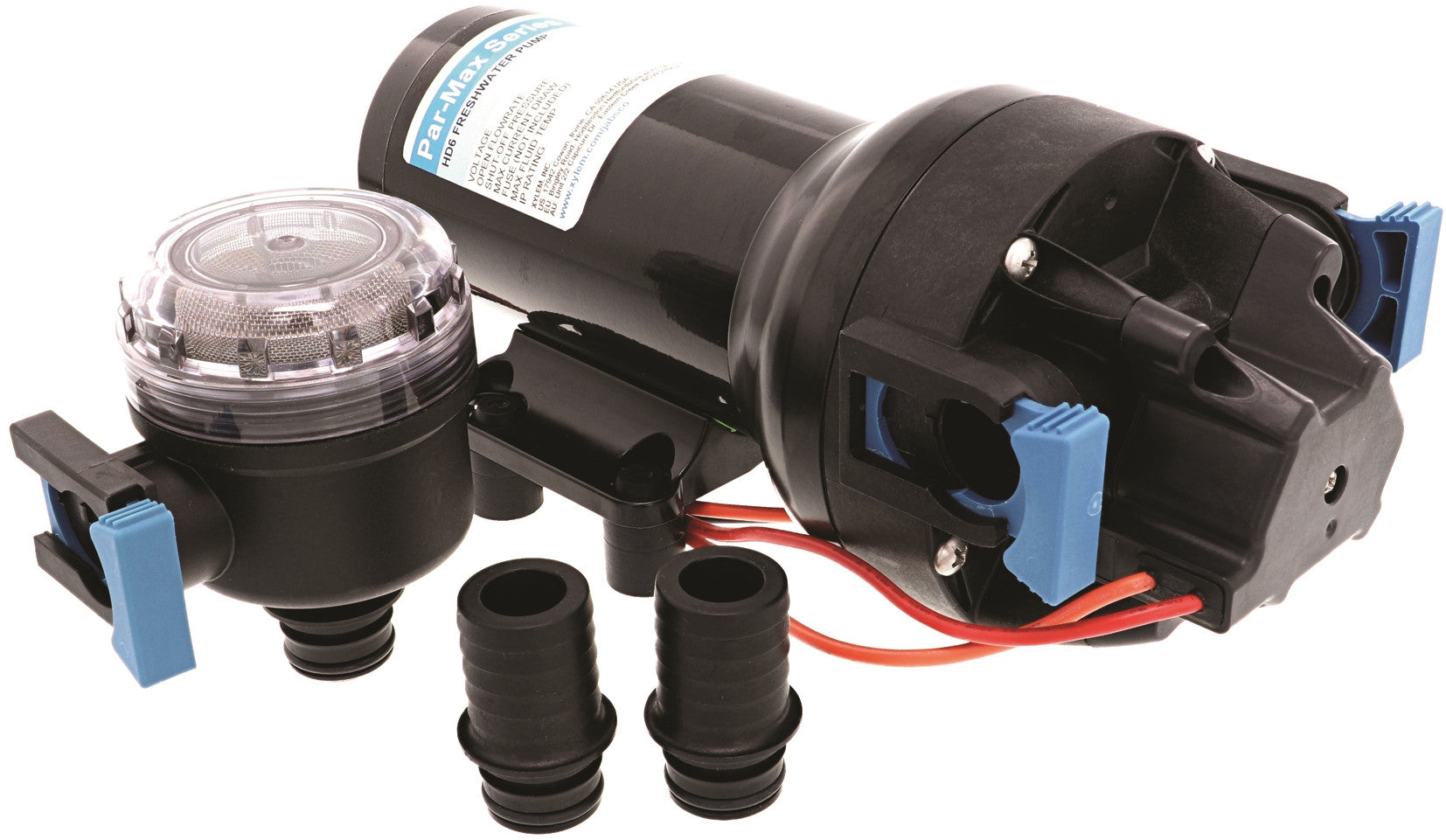

JABSCO 22.7 LITRE PAR-MAX PLUS 6.0 FRESHWATER PRESSURE PUMP 24V 6.0 60 PSI

24 volt 60 PSI Par-Max 6.0 HD JABSCO P602J-218S-3A


These Heavy Duty (HD) Par-Max 6 freshwater pressure pumps off er robust construction and extra high performance. These new modern design pumps have a 5 chamber diaphragm with reinforced polypropylene pumphead and off er pressure up to 60PSI. These heavy Duty (HD) models include a heavy duty wider diameter motor with a powder coated shell, cast aluminum end bells and lower housing - to improve pressure capability and off er longer life and exceptional performance.

The ideal robust heavy duty pump for providing freshwater automatically to up to 5 x 20mm outlets on pleasure craft up to approx the 18 metre (60 Ft) range. Includes a 40 mesh plug-in large port inlet strainer in the box with the pump. This HD 5 chamber automatic pressure pump gives flow up to 6 US Gallons per minute (22.7 litres per minute) and pressure up to 60 PSI. Serves up to 5 x 20mm outlets onboard including galley, shower and additional faucets.

The Par-Max 6.0 HD gives very smooth water flow even at low demand due to its built-in pulsation dampening by-pass valve which controls unwanted cycling and reduces noise. Inlet filter, corrosion resistant motor, soft rubber vibration dampening mounts and quick connect plug-in hose ports included - 2 x 20mm barbed for hose. Uses LARGE size Jabsco plug-in ports. 12 volt or 24 volt - in 40PSI or 60 PSI cut-out pressure versions.

Features and Benefits -

• Fully automatic operation with integrated sealed pressure switch
• Pressure switch 40PSI or 60PSI cut off
• High capacity flow up to 22.7 litres 6 US gallons per minute
• Serves up to 5 x 20mm outlets on board simultaneously
• Modern 5 chamber design gives ultra smooth flow and quiet operation
• Built-in internal by-pass lowers water pulsation
• Self primes to 2.1 metres (7 feet)
• Can be installed vertically or horizontally
• Can be run dry for short periods without damage
• Powerful heavy duty ignition protected motor with thermal protection TCO
• Vibration dampening base plate & feet for quiet efficient operation
• LARGE 23mm port size plug-in hose ports - 2 x 20mm barbed included
• Available in 12 volt & 24 volt in both 40PSI & 60PSI versions
