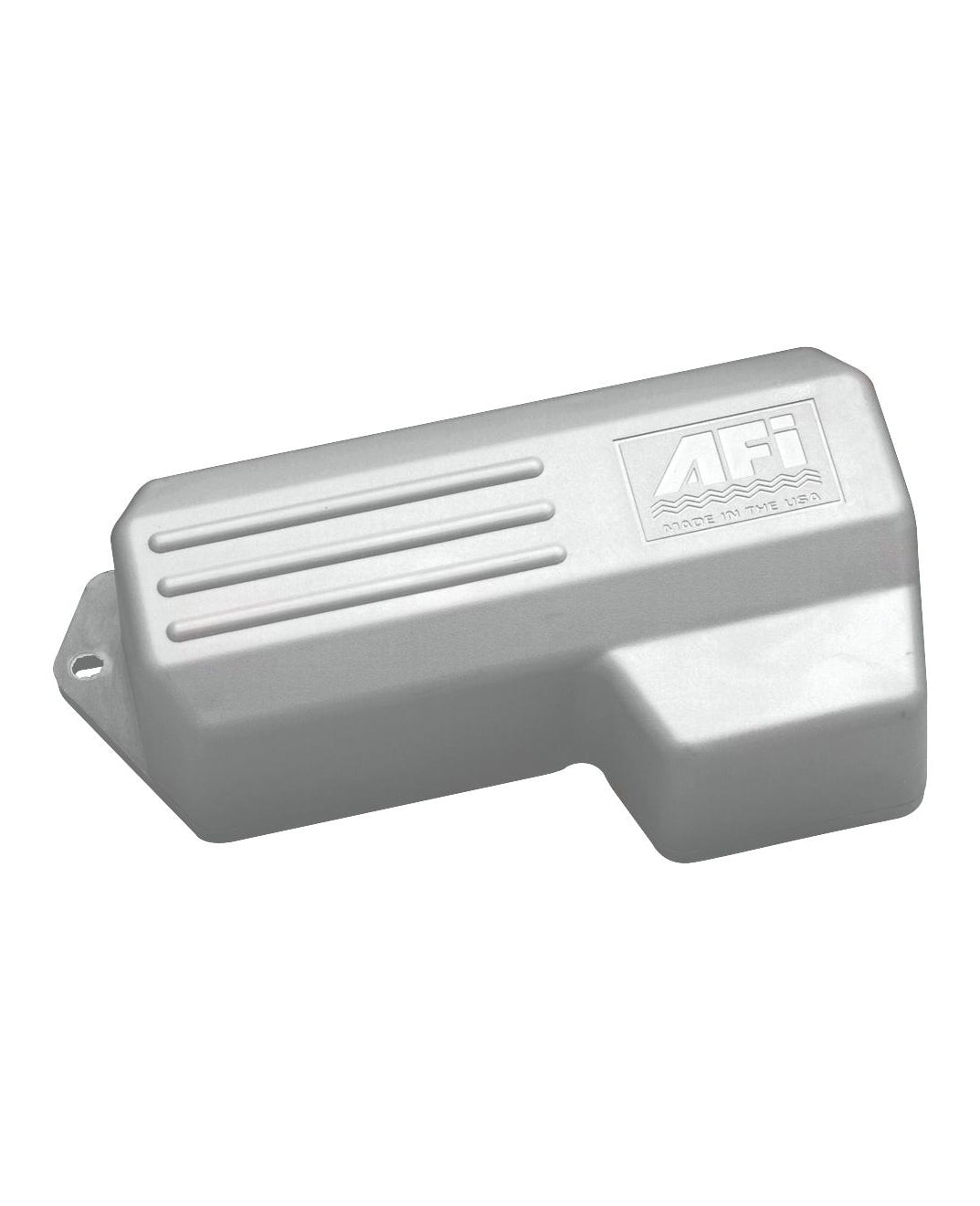

AFI 1000 WATERPROOF WIPER MOTOR 40mm SHAFT LENGTH

or 4 interest free payments of $77.25

Regular price $309.00

Available: In stock
The AFI 1000 heavy duty wiper motor is fully waterproof with a thermoplastic cover and powers wiper arm & blade combinations up to 450mm (18") length. 2 drive shaft lengths are avaiable. Fully waterproof heavy duty motor Sealed UV resistant...
Quantity
SKU: RWB5806 Categories: , ,

The AFI 1000 heavy duty wiper motor is fully waterproof with a thermoplastic cover and powers wiper arm & blade combinations up to 450mm (18") length. 2 drive shaft lengths are avaiable.

  • Fully waterproof heavy duty motor
  • Sealed UV resistant thermo-plastic cover
  • Solid brass 16mm diameter drive shaft and knurled nut
  • Single speed motor
  • Coast to park feature. Adjustable right or left park.
  • RF shielded circuitry
  • 110 deg sweep angle. Adjustable 50, 65, 80 or 110 degrees
  • Includes 5 amp fuse & fuse holder
  • Full 3 year limited warrenty. CE certified.

No load current 0.8 to 1.2 amp. Stall current 10 amps.

Stall torque 63kgf/cm 6.2 Nm

Motor Length : 169mm  Width : 84  Depth : 51mm - plus drive arm

12 volt only. 2 shaft lengths are available

Vendor:

bosunsboat

SKU:

RWB5806

Weight:

1.0 kg
