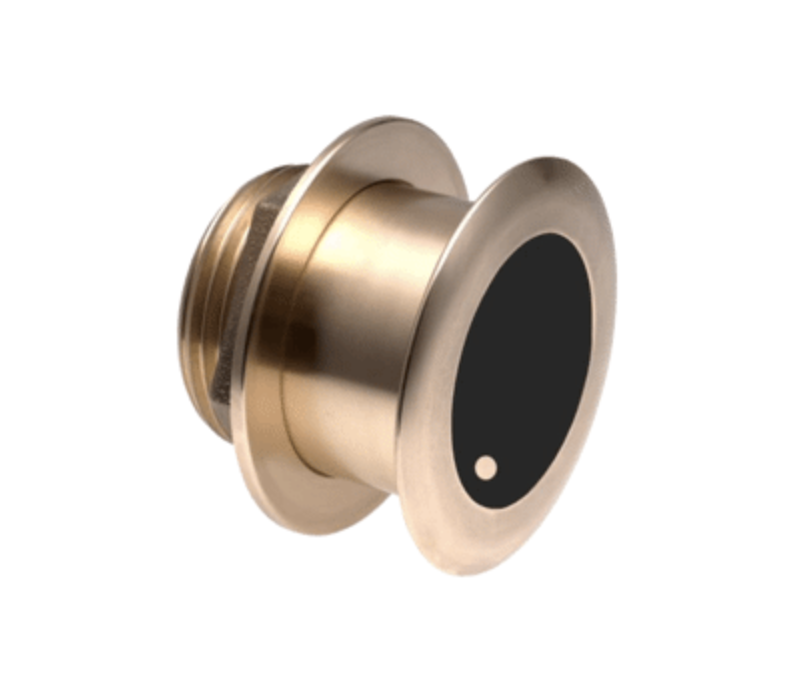

Airmar B164 50/200kHz, 1kW, 20° Tilted Element, Raymarine A, DT

SKU: B164-20-RAYA

$1,849.00 $1,928.88

Description

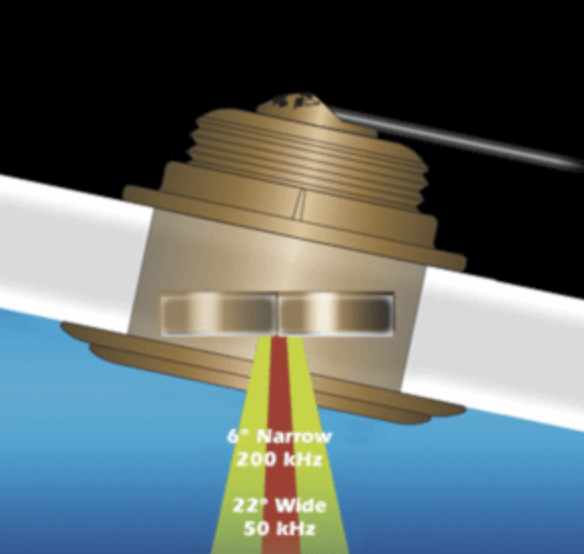

Step up to 1 kW — without a fairing. The B164 is a flush-mount, Tilted Element thru-hull transducer engineered for fast, trailered vessels that cannot accommodate a high-performance fairing. The bronze housing extends less than 6.35 mm (1/4") below the hull, allowing the boat to sit on trailer rollers and bunks without issue. The ceramic arrays are tilted inside the housing to deliver a perfectly vertical beam with maximum energy directed straight down.

This 20° tilted version suits hull deadrise angles of 16° to 24°. Available with an OEM connector or as a Mix and Match™ version.

Features

Depth and fast-response water-temperature sensing
1 kW of power
50 kHz: 22° beamwidth | Max depth: 549 m (1,800')
200 kHz: 6° beamwidth | Max depth: 244 m (800')
Interfaces with any 600 W or 1 kW echo sounder
Engineered for centre-console and trailered boats
Low-profile bronze housing — extends less than 6.35 mm (0.25") below the hull
No effect on boat running performance
Also available in stainless steel (SS164) for all hull materials
Patented Xducer ID technology

Specifications

Frequency Band: 50/200 kHz
Power Rating: 1 kW
Conventional Beam: 22°x20° / 6°
Single or Dual Frequency: Conventional Dual Frequency
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Tilted Element: Yes — 20° tilt
Deadrise Range: 16° to 24°
Max Deadrise: Up to 24°
Material: Bronze
Acoustic Window: Urethane
Hull Material: Fiberglass or Wood
Max Vessel LOA: Up to 11 m (36')
Connector: Raymarine 9-Pin
Display Connector: RAYA
Sensor Connector: MM1
Mix and Match Series: 9-Pin 1000 Watt
Max Depth: Low 549 m (1,800') | High 244 m (800')
Hole Size: 95 mm (3-3/4")
Usable Shaft Length: 71 mm (2.80")
Cable Length: 10 m (33')
Weight: 2.7 kg (6 lb.)
Common Use: Leisure/Yachting, Fishing
Country of Origin: USA
