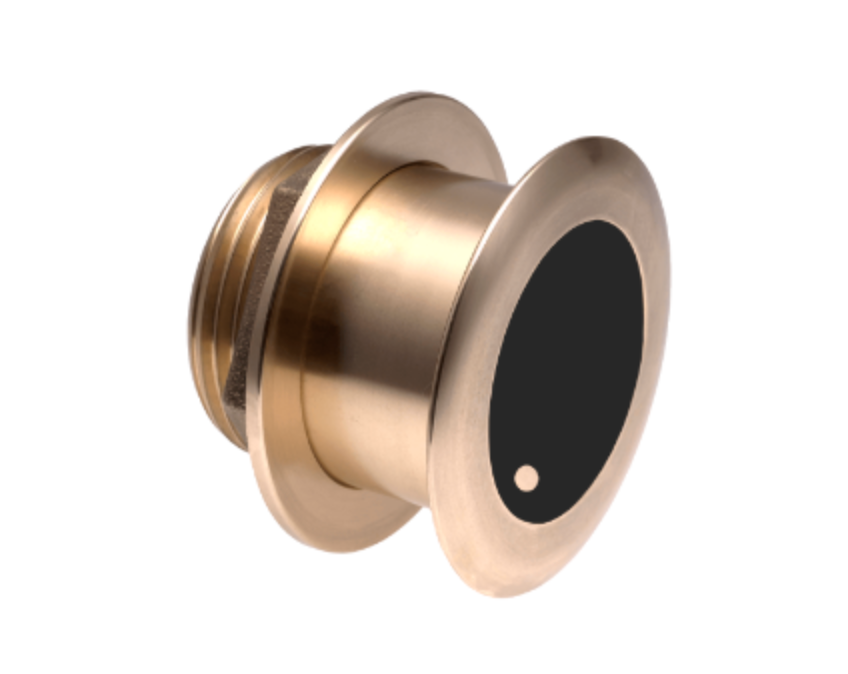

Airmar B175 High CHIRP, 1kW, 20° Tilted Element, Raymarine 11-Pin, DT

SKU: B175C-20-H-11R

$2,069.00 $2,184.28

Description

Airmar's low-profile, CHIRP-ready B175H is the perfect addition to smaller boats such as centre consoles. Transmitting across 130–210 kHz with up to 80 kHz of total bandwidth from a single installation, it delivers a narrow beamwidth — excellent for pinpointing fish holding tight to wrecks, reefs, and structures, with outstanding target separation on baitfish and schooling gamefish. Superior shallow-water performance and bottom detail.

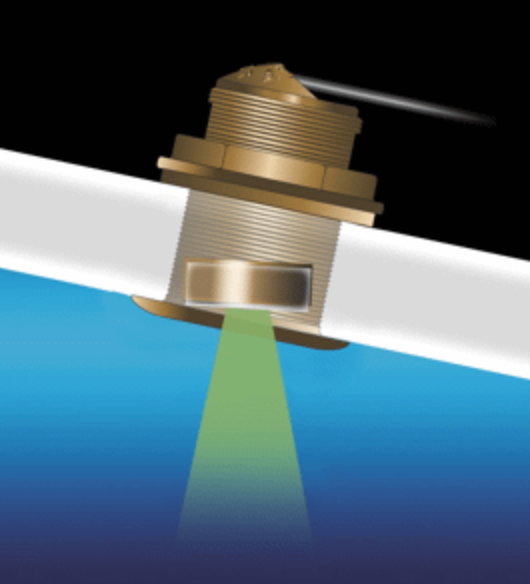

The Tilted Element design fixes the ceramic element at a set angle within the housing. When installed flush to the hull, the tilt corrects for hull deadrise and orients the element horizontally — maximising echo returns for more accurate depth readings. This 20° tilted version suits hull deadrise angles of 16° to 24°. Available with an OEM connector or as a Mix and Match™ version.

Features

Depth and fast-response water-temperature sensing
1 kW power | Max depth: 304 m (1,000')
High frequency: 130–210 kHz | Beamwidth: 10°–6° (features list: 15°–9°)
80 kHz total bandwidth from one transducer
Superior shallow-water performance, bottom detail, and fish-target separation
Low-profile thru-hull housing — good display resolution at speed when installed correctly
Recommended for stepped, planing, or displacement hulls
Bronze housing — suitable for fiberglass or wood hulls
Also available in stainless steel (SS175H) for all hull materials
Patented Xducer ID technology

Specifications

Frequency Band: High
Power Rating: 1 kW
High Frequency: 130–210 kHz
High Frequency Beamwidth: 15°–9°
Single or Dual Frequency: CHIRP-Ready Single-Band
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Tilted Element: Yes — 20° tilt
Deadrise Range: 16° to 24°
Max Deadrise: Up to 24°
Material: Bronze
Acoustic Window: Urethane
Hull Material: Fiberglass or Wood
Max Vessel LOA: Up to 11 m (36')
Connector: Raymarine 11-Pin
Display Connector: 11R
Sensor Connector: MMC
Mix and Match Series: 12-Pin CHIRP
Hole Size: Fiberglass/wood 95 mm (3-3/4") | Metal 105 mm (4-1/8")
Usable Shaft Length: 71 mm (2.80")
Cable Length: 10 m (33')
Weight: 2.7 kg (6 lb.)
Max Depth: 304 m (1,000')
Common Use: Leisure/Yachting, Fishing
Country of Origin: USA
Cross Reference: A80050
