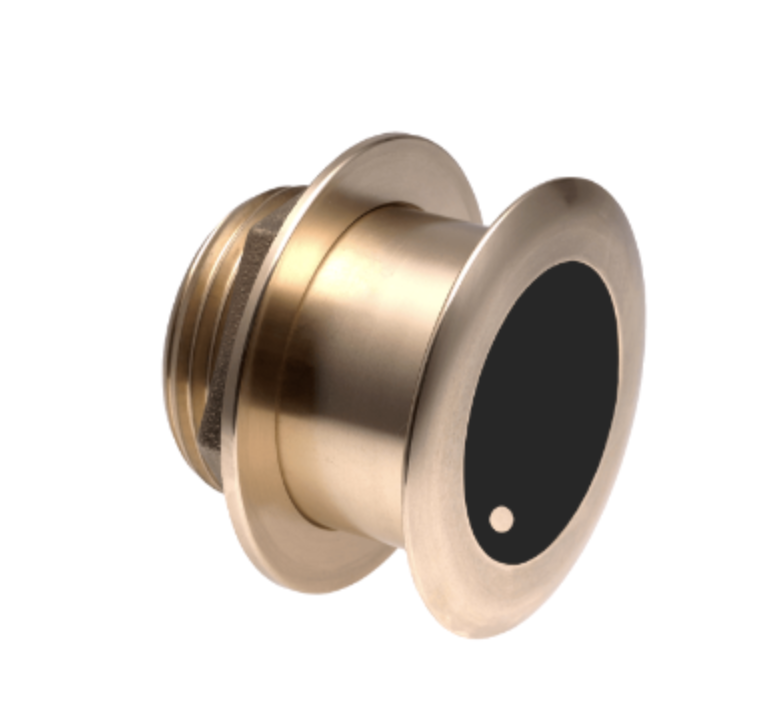

Airmar B175 Low CHIRP, 1kW, 0° Tilted Element, Raymarine 11-Pin, DT

SKU: B175C-0-L-11R

$2,409.00 $2,844.28

Description

Airmar's low-profile, CHIRP-ready B175L transmits across low frequencies from 40 to 60 kHz, delivering excellent coverage and tracking with up to 20 kHz of total bandwidth from a single installation — ideal for tremendous deep-water performance down to 762 m (2,500').

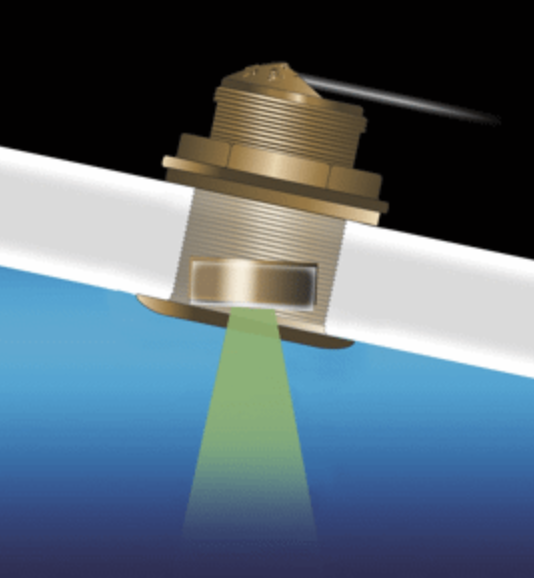

The Tilted Element design fixes the ceramic element at a set angle within the housing. When installed flush to the hull, the tilt corrects for hull deadrise and orients the beam directly downward — maximising echo returns for more accurate depth readings. This 0° tilted version suits hull deadrise angles of 0° to 7°. Available with an OEM connector or as a Mix and Match™ version.

Features

Depth and fast-response water-temperature sensing
1 kW power for great deep-water performance
Low frequency: 40–60 kHz | Beamwidth: 32°–21° | Max depth: 762 m (2,500')
Low-profile thru-hull housing — good display resolution at speed when installed correctly
Recommended for stepped, planing, or displacement hulls
Bronze housing — suitable for fiberglass or wood hulls
Also available in stainless steel (SS175L) for all hull materials
Patented Xducer ID technology

Specifications

Frequency Band: Low
Power Rating: 1 kW
Low Frequency: 40–60 kHz
Low Frequency Beamwidth: 32°–21°
Single or Dual Frequency: CHIRP-Ready Single-Band
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Tilted Element: Yes — 0° tilt
Deadrise Range: 0° to 7°
Max Deadrise: Up to 24°
Material: Bronze
Acoustic Window: Urethane
Hull Material: Fiberglass or Wood
Max Vessel LOA: Up to 11 m (36')
Connector: Raymarine 11-Pin
Display Connector: 11R
Sensor Connector: MMC
Mix and Match Series: 12-Pin CHIRP
Hole Size: Fiberglass/wood 95 mm (3-3/4") | Metal 105 mm (4-1/8")
Usable Shaft Length: 71 mm (2.80")
Cable Length: 10 m (33')
Weight: 2.7 kg (6 lb.)
Max Depth: 762 m (2,500')
Country of Origin: USA
