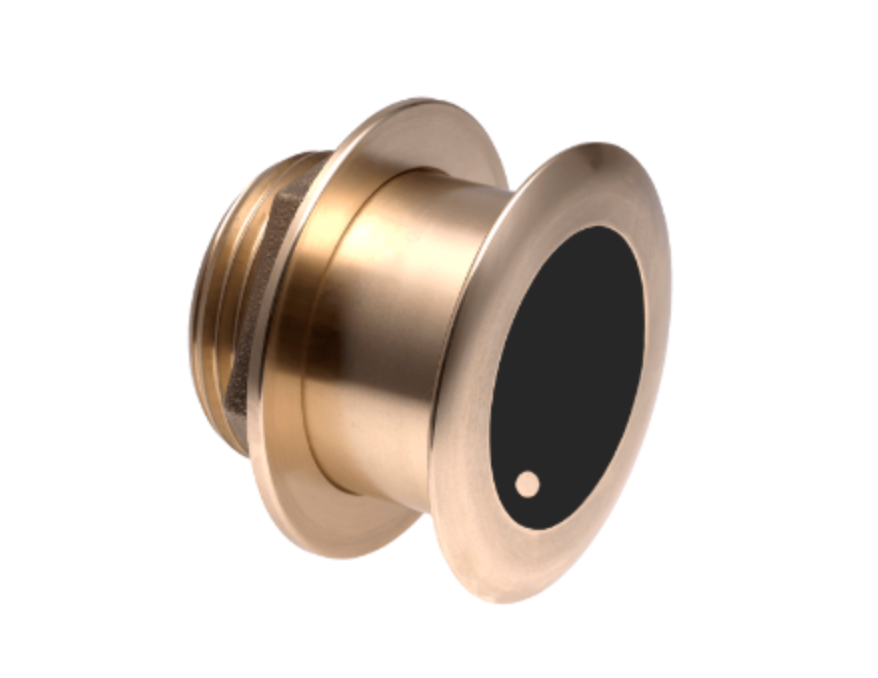

Airmar B175 Medium CHIRP, 1kW, 0° Tilted Element, Raymarine 11-Pin, DT

SKU: B175C-0-M-11R

$1,749.00 $1,854.28

Description

The B175M's medium frequency delivers the ideal combination of coverage, extended depth range, and clean target and structure returns in mid to deeper water. Operating at 85–135 kHz with 50 kHz of total bandwidth, it reveals fish at medium depths up to 457 m (1,500') with ultra-clear target resolution and excellent shallow to mid-depth performance, bottom detail, and fish-target separation.

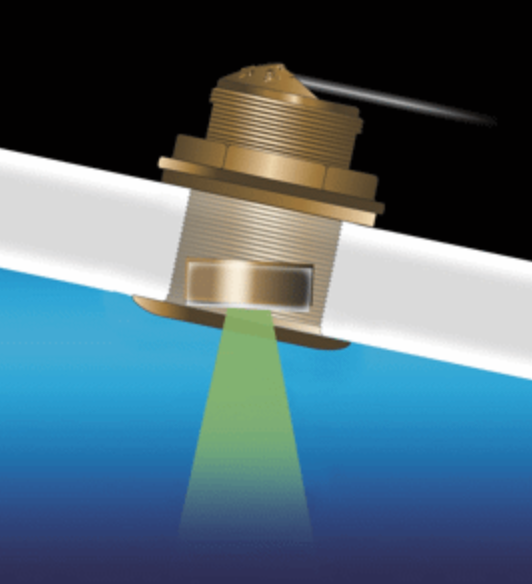

The Tilted Element design fixes the ceramic element at a set angle within the housing. When installed flush to the hull, the tilt corrects for hull deadrise and orients the element horizontally — maximising echo returns for more accurate depth readings. This 0° tilted version suits hull deadrise angles of 0° to 7°. Available with an OEM connector or as a Mix and Match™ version.

Features

Depth and fast-response water-temperature sensing
1 kW of power
Medium frequency: 85–135 kHz | Beamwidth: 16°–11° | Max depth: 457 m (1,500')
50 kHz total bandwidth from one transducer
Low-profile thru-hull housing — good display resolution at speed when installed correctly
Recommended for stepped, planing, or displacement hulls
Bronze housing — suitable for fiberglass or wood hulls
Also available in stainless steel (SS175M), thru-hull with fairing (B285M), and in-hull (M135M) mounts
Patented Xducer ID technology

Specifications

Frequency Band: Medium
Power Rating: 1 kW
Medium Frequency: 85–135 kHz
Medium Frequency Beamwidth: 16°–11°
Single or Dual Frequency: CHIRP-Ready Single-Band
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Tilted Element: Yes — 0° tilt
Deadrise Range: 0° to 7°
Max Deadrise: Up to 24°
Material: Bronze
Acoustic Window: Urethane
Hull Material: Fiberglass or Wood
Max Vessel LOA: Not specified
Connector: Raymarine 11-Pin
Display Connector: 11R
Sensor Connector: MMC
Mix and Match Series: 12-Pin CHIRP
Hole Size: Fiberglass/wood 95 mm (3-3/4") | Metal 105 mm (4-1/8")
Usable Shaft Length: 55 mm (2.18")
Cable Length: 10 m (33')
Weight: 2.7 kg (6 lb.)
Max Depth: 457 m (1,500')
Common Use: Fishing
Country of Origin: USA
Cross Reference: A80043
