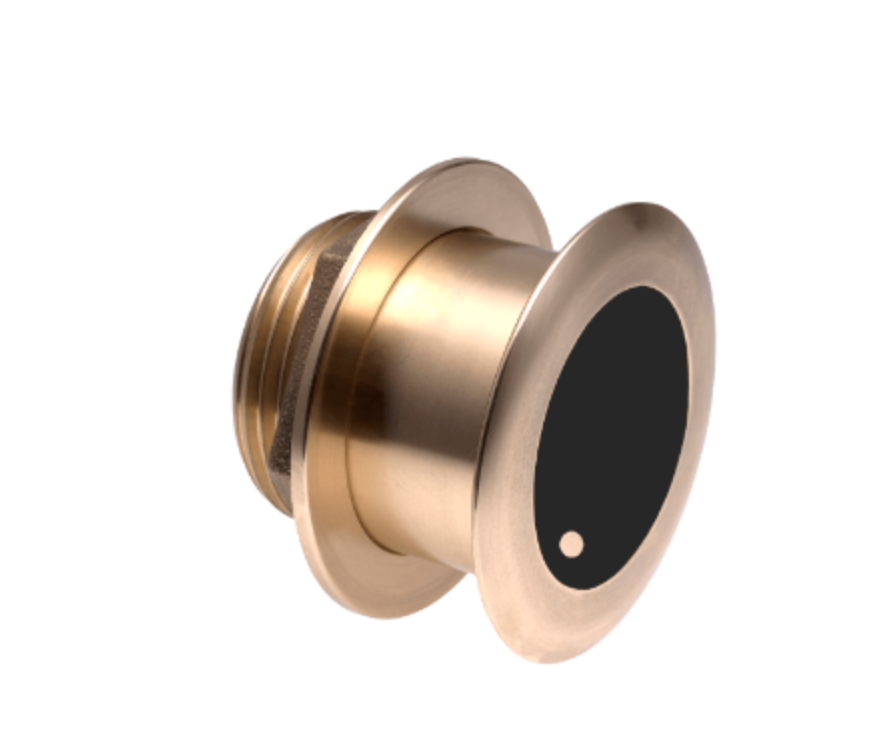

Airmar B175 Medium CHIRP, 1kW, 12° Tilted Element, Raymarine 11-Pin Transducer

SKU: B175C-12-M-11R

$1,799.00 $1,854.28

Description

The Airmar B175M is a high-power, medium-frequency CHIRP thru-hull transducer built for serious fishing in mid to deep water. Operating at 85–135 kHz with 1 kW of power, it delivers clean target and structure returns to depths of 457 m (1,500'), with excellent bottom detail and fish-target separation from shallow water down.

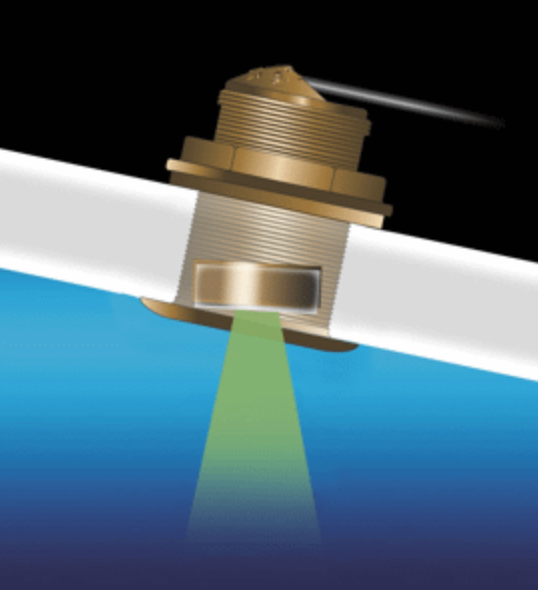

This model features Airmar's Tilted Element™ design — the ceramic element is fixed at a set angle within the housing so the transducer installs nearly flush to the hull while the element remains horizontal, maximising echo returns regardless of hull deadrise.

The B175M is available in three Tilted Element versions to suit your hull:

0° tilt — for hull deadrise 0° to 7°
12° tilt — for hull deadrise 8° to 15°
20° tilt — for hull deadrise 16° to 24°

Available with an OEM connector matched to your fishfinder, or as a Mix and Match™ version with a 9 m (29.5') cable and standard connector plus a 1 m (3') adapter cable. Confirm your fishfinder's connector type before ordering.

Features

Medium CHIRP: 85–135 kHz, 50 kHz total bandwidth
1 kW power output
Depth range to 457 m (1,500')
Beamwidth: 16°–11°
Depth and fast-response water temperature sensing
Tilted Element™ — corrects for hull deadrise without angled installation
Low-profile thru-hull housing; good display resolution at speed
Suited to stepped, planing, or displacement hulls
Bronze housing for fiberglass or wood hulls
Also available: SS175M (stainless), B285M (thru-hull), M135M (in-hull)
Patented Xducer ID® technology

Specifications

Frequency Band: Medium CHIRP
Frequency Range: 85–135 kHz | Beamwidth: 16°–11°
Power Rating: 1 kW
Max Depth: 457 m (1,500')
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Tilt Angle (this model): 12°
Deadrise Range: 8° to 15°
Max Deadrise: 24°
Material: Bronze
Hull Compatibility: Fiberglass or wood
Hole Size: 95 mm / 3-3/4" (fiberglass/wood); 105 mm / 4-1/8" (metal)
Connector: Raymarine 11-Pin
Usable Shaft Length: 55 mm (2.18")
Cable Length: 10 m (33')
Mix and Match Series: 12-Pin CHIRP
Acoustic Window: Urethane
Country of Origin: USA
Weight: 2.7 kg (6 lb)
Cross Reference: A80046
