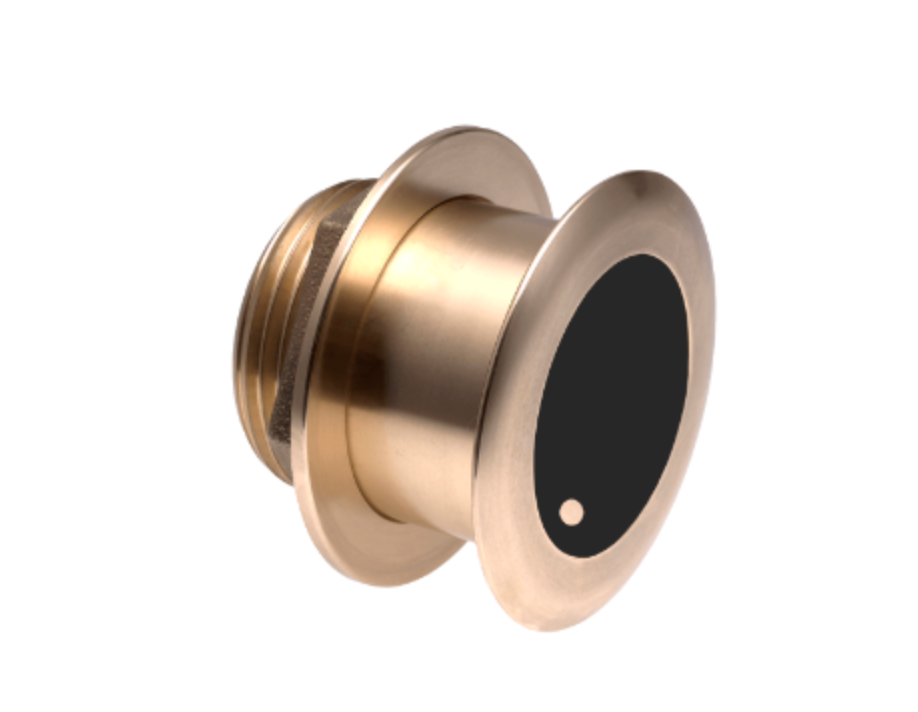

Airmar B175 Medium Ultra-Wide CHIRP, 1kW, 0° Tilted Element, Raymarine 11-Pin Transducer

SKU: B175C-0-MW-11R

$3,199.00 $3,383.75

Description

The Airmar B175MW is a revolutionary medium-frequency ultra-wide CHIRP thru-hull transducer designed for anglers targeting pelagic species in the upper water column. Its extraordinary 57°–73° port-starboard beamwidth (16° average fore-aft) delivers maximum coverage under the boat — a level of lateral coverage simply not achievable with conventional transducers.

Operating at 60–100 kHz with 1 kW of power and a max depth of 400 m (1,300'), the B175MW excels at mid-depth performance and fish-target separation. Paired with models such as the B275LHW, it gives anglers a broad frequency set (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

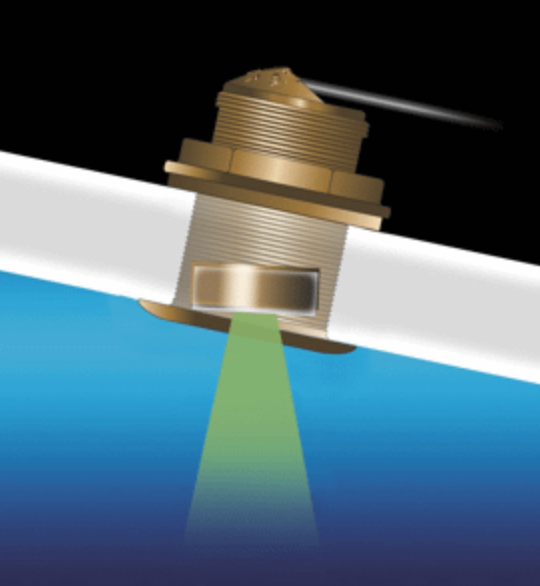

This model features Airmar's Tilted Element™ design — the ceramic element is fixed at a set angle within the housing so the transducer installs nearly flush to the hull while the element remains horizontal, maximising echo returns regardless of hull deadrise.

The B175MW is available in three Tilted Element versions to suit your hull:

0° tilt — for hull deadrise 0° to 7°
12° tilt — for hull deadrise 8° to 15°
20° tilt — for hull deadrise 16° to 24°

Available with an OEM connector matched to your fishfinder, or as a Mix and Match™ version with a 9 m (29.5') cable and standard connector plus a 1 m (3') adapter cable. Confirm your fishfinder's connector type before ordering.

Features

Medium Ultra-Wide CHIRP: 60–100 kHz, 40 kHz total bandwidth
Ultra-wide beamwidth: 57°–73° port/starboard, 16° average fore/aft
1 kW power output
Max depth: 400 m (1,300')
Maximum coverage under the boat for pelagic species targeting
Superior mid-depth performance and fish-target separation
Depth and fast-response water temperature sensing (−10° to 40°C)
Tilted Element™ — corrects for hull deadrise without angled installation
Low-profile thru-hull; good display resolution at speed
Bronze housing for fiberglass or wood hulls
Suited to stepped, planing, or displacement hulls up to 11 m (36') LOA
Patented Xducer ID® technology

Specifications

Frequency Band: Medium Ultra-Wide CHIRP
Frequency Range: 60–100 kHz
Beamwidth: 57°–73° (port/starboard) × 16° average (fore/aft)
Power Rating: 1 kW
Max Depth: 400 m (1,300')
Functions: Depth, Temperature
Water Temperature Range: −10° to 40°C (14° to 104°F)
Mounting Style: Tilted Element Thru-Hull
Tilt Angle (this model): 0°
Deadrise Range: 0° to 7°
Max Deadrise: 24°
Max Vessel LOA: 11 m (36')
Material: Bronze
Hull Compatibility: Fiberglass or wood
Hole Size: 95 mm (3-3/4")
Connector: Raymarine 11-Pin
Cable Length: 9 m (30') / 10 m (33')
Mix and Match Series: 12-Pin CHIRP
Acoustic Window: Urethane
Country of Origin: USA
Weight: 2.7 kg (6 lb)
