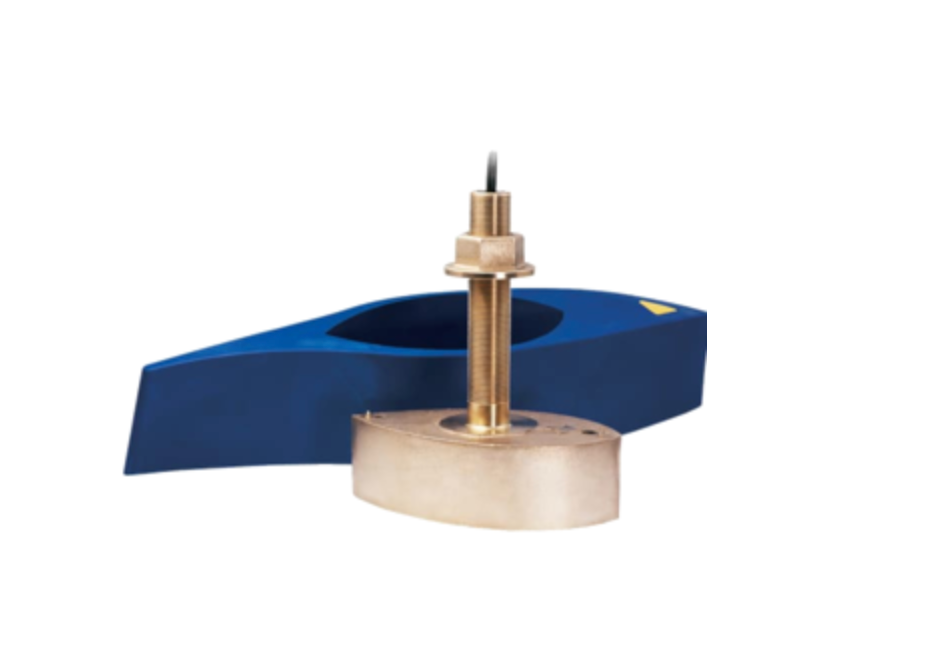

Airmar B265 Low-High CHIRP, 1kW, with Fairing Block, Raymarine 11-Pin, DT

SKU: B265C-LH-11R

$3,099.00 $3,237.15

Description

Specific frequencies excel at detecting certain species: Bluefin Tuna at 60 kHz, squid at 133 kHz, and cod at 175 kHz. The B265LH covers all these frequencies and every other frequency across its high and low bandwidths — delivering excellent resolution, bottom discrimination, and bait and gamefish separation at all depths.

A seven-element low-frequency array operates between 42 and 65 kHz for excellent deep-water performance down to 914 m (3,000'). The high-frequency ceramic operates between 130 and 210 kHz with a narrow 10°–6° beam — perfect for picking apart structure and pinpointing tight-holding fish. Includes a high-performance Fairing Block for optimal broadband performance at speeds over 30 knots. Available with an OEM connector or as a Mix and Match™ version.

Features

Depth and fast-response water-temperature sensing
1 kW power for great deep-water performance
Low frequency: 42–65 kHz | Beamwidth: 25°–16° | Max depth: 914 m (3,000')
High frequency: 130–210 kHz | Beamwidth: 10°–6° | Max depth: 304 m (1,000')
103 kHz total bandwidth from one transducer
Covers popular fishing frequencies of 50 and 200 kHz plus full bandwidth
Bronze housing with high-performance Fairing Block for optimal high-speed performance
Also available as transom (TM265LH), pocket (PM265LH), cavity/welded-tank (CM265LH), and in-hull (M265LH) mounts
Patented Xducer ID technology

Specifications

Frequency Band: Low-High
Power Rating: 1 kW
Low Frequency: 42–65 kHz
Low Frequency Beamwidth: 25°–16°
High Frequency: 130–210 kHz
High Frequency Beamwidth: 10°–6°
Single or Dual Frequency: CHIRP-Ready Dual-Band
Functions: Depth, Temperature
Mounting Style: Thru-Hull with Fairing
Tilted Element: No
Material: Bronze
Acoustic Window: Urethane
Hull Material: Fiberglass or Wood
Max Vessel LOA: 8 m (25') and above
Deadrise Range: Up to 28° with fairing
Max Deadrise: Up to 20° with fairing
Connector: Raymarine 11-Pin
Display Connector: 11R
Sensor Connector: MMC
Mix and Match Series: 12-Pin CHIRP
Hole Size: 30 mm (1-3/16")
Usable Shaft Length: 121 mm (4.75")
Cable Length: 10 m (33')
Weight: 7.3 kg (16 lb.)
Max Depth: Low 914 m (3,000') | High 304 m (1,000')
Common Use: Fishing, Commercial Fishing
Country of Origin: USA
Cross Reference: A80010
