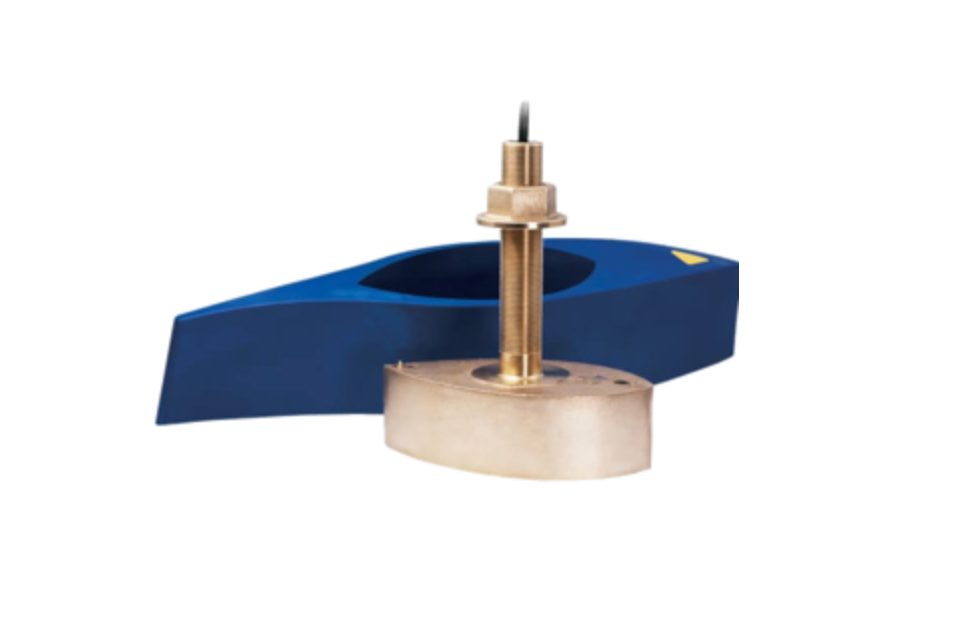

Airmar B265 Low-Medium CHIRP, 1kW, with Fairing Block, Raymarine 11-Pin, DT

SKU: B265C-LM-11R

$3,399.00 $3,661.43

Description

The B265LM is a CHIRP-ready thru-hull transducer perfectly suited for mid to deep-depth fishing. With 73 kHz of total bandwidth across two bands, this 1 kW powerhouse delivers clear target details, bottom discrimination, and bait and gamefish separation at all depths.

The low-frequency band (42–65 kHz) provides deep-water performance down to 914 m (3,000') — ideal for scouting or fishing in deeper water. The medium-frequency band (85–135 kHz) excels at identifying targets suspended close to the bottom, on structure, and within the water column down to 457 m (1,500'). Covers popular fishing frequencies of 50, 88, and 107 kHz. Includes a high-performance Fairing Block for optimal broadband performance at speeds over 30 knots. Available with an OEM connector or as a Mix and Match™ version.

Features

Depth and fast-response water-temperature sensing
1 kW power for great deep to mid-depth performance
Low frequency: 42–65 kHz | Beamwidth: 25°–16° | Max depth: 914 m (3,000')
Medium frequency: 85–135 kHz | Beamwidth: 16°–11° | Max depth: 457 m (1,500')
73 kHz total bandwidth from one transducer
Covers popular fishing frequencies of 50, 88, and 107 kHz
Bronze housing with high-performance Fairing Block for optimal high-speed performance
Also available as transom (TM265LM), pocket (PM265LM), cavity/welded-tank (CM265LM), and in-hull (M265LM) mounts
Patented Xducer ID technology

Specifications

Frequency Band: Low-Medium
Power Rating: 1 kW
Low Frequency: 42–65 kHz
Low Frequency Beamwidth: 25°–16°
Medium Frequency: 85–135 kHz
Medium Frequency Beamwidth: 16°–11°
Single or Dual Frequency: CHIRP-Ready Dual-Band
Functions: Depth, Temperature

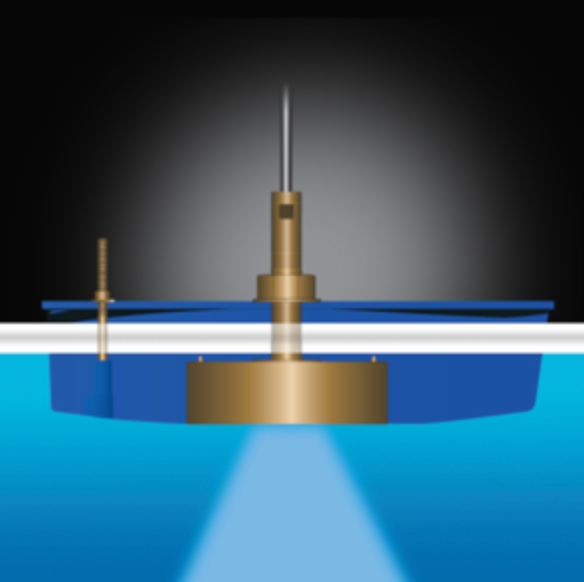

Mounting Style: Thru-Hull with Fairing
Tilted Element: No
Material: Bronze
Acoustic Window: Urethane
Hull Material: Fiberglass or Wood
Max Vessel LOA: 8 m (25') and above
Deadrise Range: Up to 28° with fairing
Max Deadrise: Up to 20° with fairing
Connector: Raymarine 11-Pin
Display Connector: 11R
Sensor Connector: MMC
Mix and Match Series: 12-Pin CHIRP
Usable Shaft Length: 121 mm (4.75")
Cable Length: 10 m (33')
Weight: 7.3 kg (16 lb.)
Max Depth: Low 914 m (3,000') | Medium 457 m (1,500')
Common Use: Fishing, Commercial Fishing
Country of Origin: USA
Cross Reference: A80011
