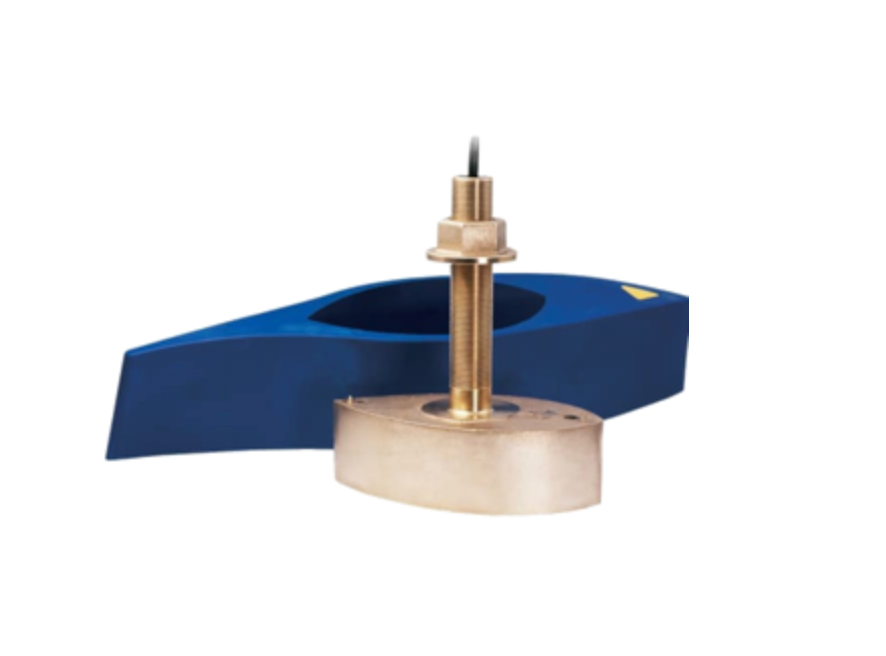

Airmar B275 Low-High Wide CHIRP, 1kW, with Fairing Block, Raymarine 11-Pin, DT

SKU: B275C-LHW-11R

$3,599.00 $3,927.00

Description

Get more coverage under your boat with Airmar's unique wide-beam, dual-frequency, CHIRP-ready B275LHW. The high band operates across 150–250 kHz with a fixed 25° beam for all frequencies — delivering superior resolution and twice the coverage compared to most high-frequency narrow-beam transducers, with clear fish arches on the display.

The high wide beam is ideal for both inshore and pelagic fishing where resolution and maximum coverage are essential down to 152 m (500'). The low-frequency band and 1 kW of power support excellent deep-water performance down to 914 m (3,000'). Includes a high-performance Fairing Block for optimal broadband performance at speeds over 30 knots. Available with an OEM connector or as a Mix and Match™ version.

Features

Depth and fast-response water-temperature sensing
1 kW power for great deep-water performance (low frequency)
Low frequency: 42–65 kHz | Beamwidth: 25°–16° | Max depth: 914 m (3,000')
High frequency: 150–250 kHz | Beamwidth: 25° constant | Max depth: 152 m (500')
123 kHz total bandwidth from one transducer
Covers popular fishing frequencies of 50 and 200 kHz plus full bandwidth
Superior shallow-water performance, bottom detail, and fish-target separation
Wide high beam yields more coverage for detecting fish in the upper water column

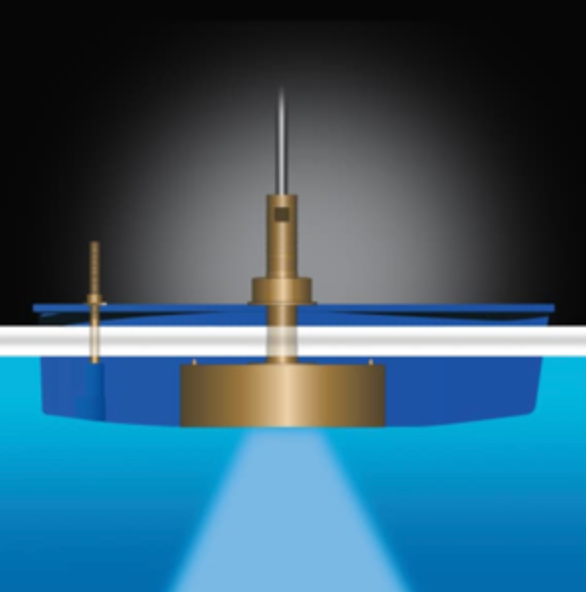

Bronze housing with high-performance Fairing Block for optimal high-speed performance
Also available as transom (TM275LHW) and pocket mount (PM275LHW)
Patented Xducer ID technology

Specifications

Frequency Band: Low-High Wide
Power Rating: 1 kW
Low Frequency: 42–65 kHz
Low Frequency Beamwidth: 25°–16°
High Frequency: 150–250 kHz
High-Wide Beamwidth: 25° constant
Single or Dual Frequency: CHIRP-Ready Dual-Band
Functions: Depth, Temperature
Mounting Style: Thru-Hull with Fairing
Tilted Element: No
Material: Bronze
Acoustic Window: Urethane
Hull Material: Fiberglass or Wood
Max Vessel LOA: 8 m (25') and above
Deadrise Range: Up to 28° with fairing
Max Deadrise: Up to 20° with fairing
Connector: Raymarine 11-Pin
Display Connector: 11R
Sensor Connector: MMC
Mix and Match Series: 12-Pin CHIRP
Hole Size: 30 mm (1-3/16")
Usable Shaft Length: 121 mm (4.75")
Cable Length: 10 m (33')
Weight: 7.3 kg (16 lb.)
Max Depth: Low 914 m (3,000') | High wide 152 m (500')
Common Use: Fishing, Commercial Fishing
Country of Origin: USA
Cross Reference: A80322
