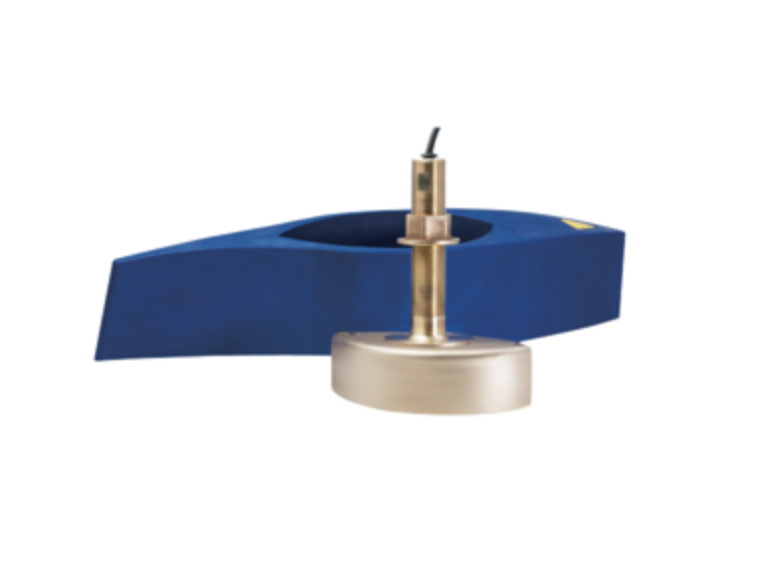

Airmar B285 Medium CHIRP, 1kW, with Fairing Block, Raymarine 11-Pin, DT

SKU: B285C-M-11R

$2,359.00 $2,482.85

Description

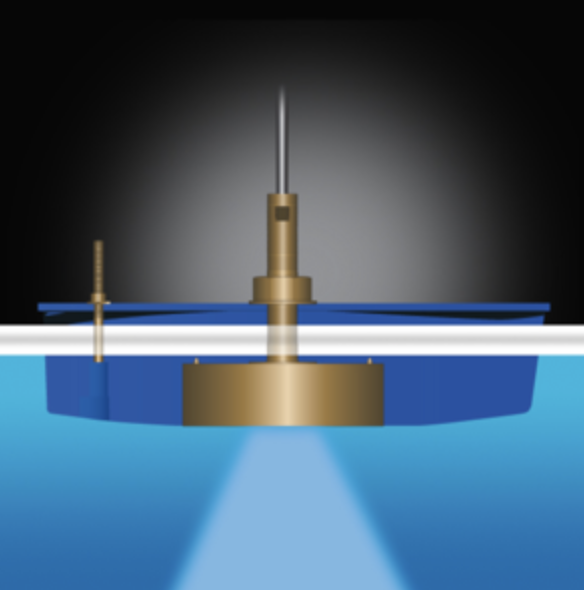

The B285M's medium frequency delivers the ideal combination of coverage, extended depth range, and clean target and structure returns in mid to deeper water. Operating at 85–135 kHz with 50 kHz of total bandwidth, it reveals fish at depths up to 457 m (1,500') with ultra-clear target resolution and excellent bottom detail. Covers popular fishing frequencies of 88 and 107 kHz plus everything in between.

Also ideal for single-channel sounder applications — simply create presets for 85 and 135 kHz and toggle between wide and narrow beams for scouting and pinpointing structure. Includes a high-performance Fairing Block for optimal broadband performance at speeds over 30 knots. Available with an OEM connector or as a Mix and Match™ version.

Features

Depth and fast-response water-temperature sensing
1 kW power | Max depth: 457 m (1,500')
Medium frequency: 85–135 kHz | Beamwidth: 16°–11° | 50 kHz total bandwidth
Covers popular fishing frequencies of 88 and 107 kHz
Bronze housing — suitable for fiberglass or wood hulls
Recommended for planing or displacement hulls
Includes high-performance Fairing Block for speeds over 30 knots
Also available as transom (TM185M), low-profile thru-hull (B175M), and in-hull (M135M) mounts
Patented Xducer ID technology

Specifications

Frequency Band: Medium
Power Rating: 1 kW
Medium Frequency: 85–135 kHz
Medium Frequency Beamwidth: 16°–11°
Single or Dual Frequency: CHIRP-Ready Single-Band
Functions: Depth, Temperature
Mounting Style: Thru-Hull with Fairing
Tilted Element: No
Material: Bronze
Acoustic Window: Urethane
Hull Material: Fiberglass or Wood
Max Vessel LOA: 8 m (25') and above
Deadrise Range: Up to 28° with fairing
Max Deadrise: Up to 26° with fairing
Connector: Raymarine 11-Pin
Display Connector: 11R
Sensor Connector: MMC
Mix and Match Series: 12-Pin CHIRP
Hole Size: 30 mm (1-3/16")
Usable Shaft Length: 121 mm (4.75")
Cable Length: 10 m (33')
Weight: 4.2 kg (9.2 lb.)
Max Depth: 457 m (1,500')
Common Use: Fishing, Commercial Fishing
Country of Origin: USA
