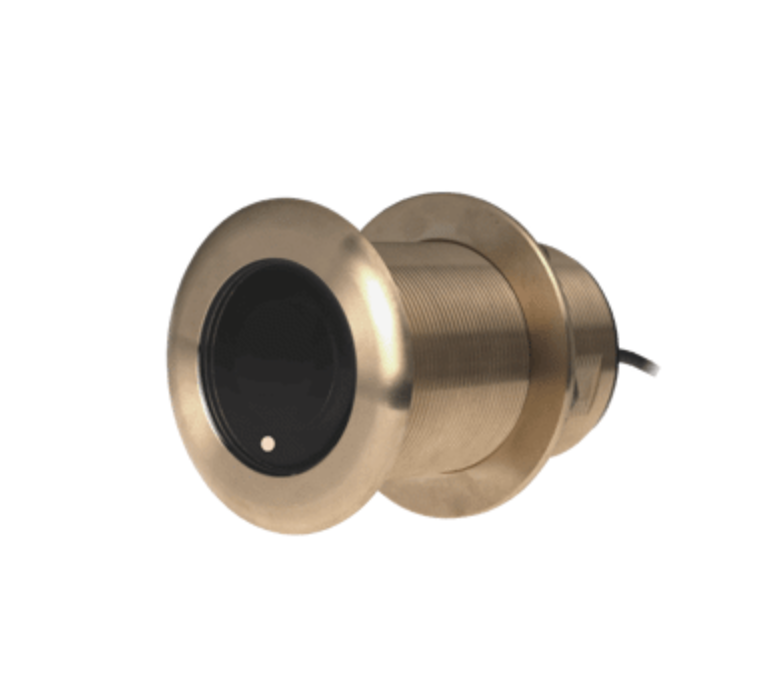

Airmar B75 High CHIRP, 600W, 12° Tilted Element, Raymarine 11-Pin, DT

SKU: B75C-12-H-11R

$1,419.00 $1,477.15

Description

Airmar's low-profile, CHIRP-ready B75H is the perfect addition to smaller boats such as centre consoles. Operating between 130 and 210 kHz, the high-frequency band delivers a narrow beamwidth — excellent for pinpointing fish holding tight to wrecks, reefs, and structures, with outstanding target separation on baitfish and schooling gamefish. Up to 80 kHz of total bandwidth from a single installation for clear bottom detail and fish target resolution.

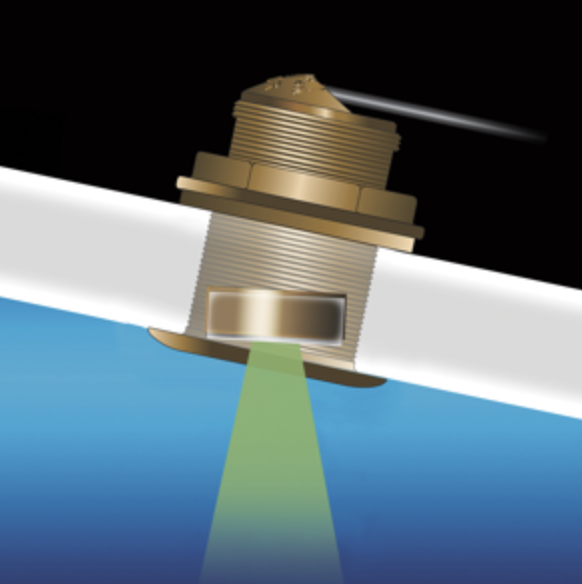

The Tilted Element design fixes the ceramic element at a set angle within the housing. When installed flush to the hull, the tilt corrects for hull deadrise and orients the beam directly downward — maximising echo returns for more accurate depth readings. This 12° tilted version suits hull deadrise angles of 6° to 15° (8° to 15° deadrise range per specs). Available with an OEM connector or as a Mix and Match™ version.

Features

Depth and fast-response water-temperature sensing
600 W power | Max depth: 214 m (700')
High frequency: 130–210 kHz | Beamwidth: 15°–9°
Great shallow-water performance, bottom detail, and clear fish-target returns
Low-profile thru-hull housing — good display resolution at speed when installed correctly
Recommended for stepped, planing, or displacement hulls
Bronze housing — suitable for fiberglass or wood hulls
Also available in stainless steel (SS75H) for all hull materials
Patented Xducer ID technology

Specifications

Frequency Band: High
Power Rating: 600 W
High Frequency: 130–210 kHz
High Frequency Beamwidth: 15°–9°
Single or Dual Frequency: CHIRP-Ready Single-Band
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Tilted Element: Yes — 12° tilt
Deadrise Range: 8° to 15°
Max Deadrise: Up to 24°
Material: Bronze
Acoustic Window: Urethane
Hull Material: Fiberglass or Wood
Max Vessel LOA: Up to 8 m (26')
Connector: Raymarine 11-Pin
Display Connector: 11R
Sensor Connector: MMC
Mix and Match Series: 12-Pin CHIRP
Hole Size: 70 mm (2-13/16")
Usable Shaft Length: 95 mm (3.75")
Cable Length: 10 m (33')
Weight: 1.4 kg (3 lb.)
Max Depth: 214 m (700')
Country of Origin: USA
Cross Reference: A80035
