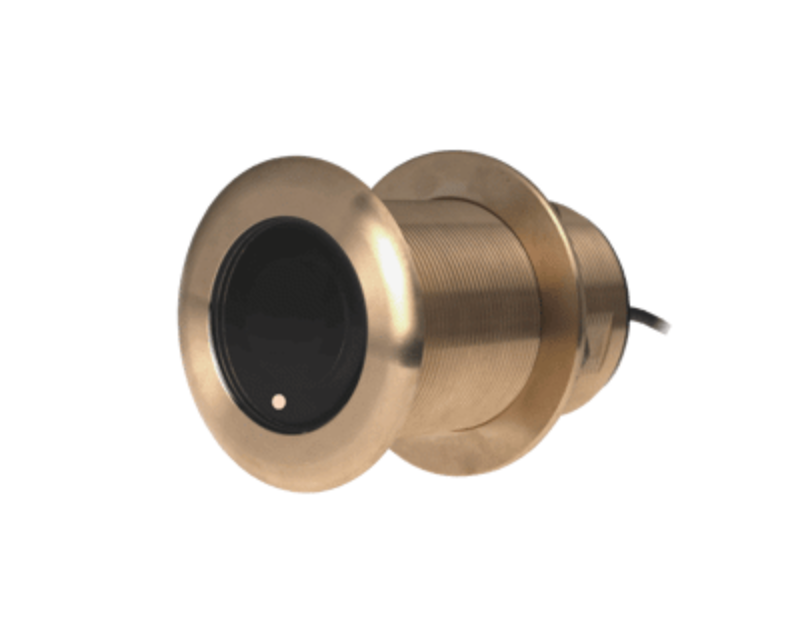

Airmar B75 High Wide CHIRP, 600W, 0° Tilted Element, Raymarine 11-Pin Transducer

SKU: B75C-0-HW-11R

$1,699.00 $1,775.72

Description

The Airmar B75HW is a compact, high-frequency wide-beam CHIRP thru-hull transducer purpose-built for smaller boats such as centre consoles. Its High Wide frequency band (150–250 kHz) delivers a constant 30° beamwidth for maximum coverage under the boat, combining outstanding target separation on baitfish and schooling gamefish with excellent shallow-water performance and bottom detail down to 106 m (350').

With 600 W of power and 100 kHz of total bandwidth from a single installation, the B75HW punches well above its compact size.

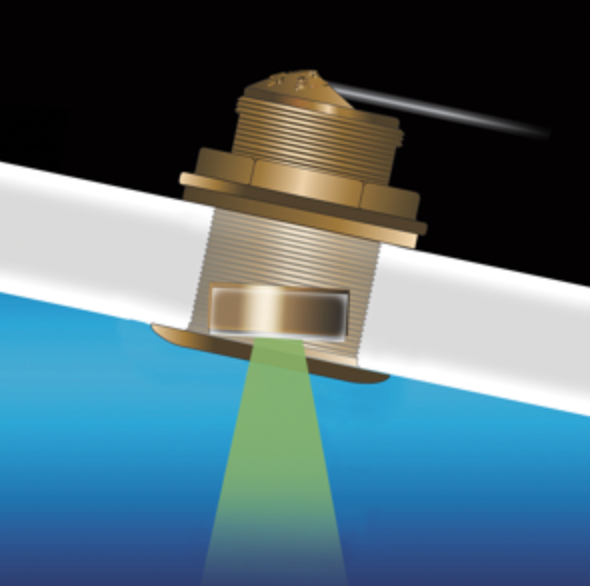

This model features Airmar's Tilted Element™ design — the ceramic element is fixed at a set angle within the housing so the transducer installs nearly flush to the hull while the element remains horizontal, maximising echo returns regardless of hull deadrise.

The B75HW is available in three Tilted Element versions to suit your hull:

0° tilt — for hull deadrise 0° to 7°
12° tilt — for hull deadrise 8° to 15°
20° tilt — for hull deadrise 16° to 24°

Available with an OEM connector matched to your fishfinder, or as a Mix and Match™ version with a 9 m (29.5') cable and standard connector plus a 1 m (3') adapter cable. Confirm your fishfinder's connector type before ordering.

Features

High Wide CHIRP: 150–250 kHz, constant 30° beamwidth, 100 kHz total bandwidth
600 W power output
Max depth: 106 m (350')
Outstanding target separation on baitfish and schooling gamefish
Superior shallow-water performance and bottom detail
Depth and fast-response water temperature sensing
Tilted Element™ — corrects for hull deadrise without angled installation
Low-profile thru-hull; good display resolution at speed
Bronze housing for fiberglass or wood hulls
Suited to stepped, planing, or displacement hulls up to 8 m (26') LOA
Patented Xducer ID® technology

Specifications

Frequency Band: High Wide CHIRP
Frequency Range: 150–250 kHz | Beamwidth: 30° (constant)
Power Rating: 600 W
Max Depth: 106 m (350')
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Tilt Angle (this model): 0°
Deadrise Range: 0° to 7°
Max Deadrise: 24°
Max Vessel LOA: 8 m (26')
Material: Bronze
Hull Compatibility: Fiberglass or wood
Hole Size: 70 mm (2-13/16")
Connector: Raymarine 11-Pin
Cable Length: 10 m (33')
Mix and Match Series: 12-Pin CHIRP
Acoustic Window: Urethane
Country of Origin: USA
Weight: 1.4 kg (3 lb)
