Airmar B765 Low-High CHIRP, 300/600W, Thru-Hull, Raymarine 11-Pin Transducer

SKU: B765C-LH-11R

$1,699.00 $1,774.15

Description

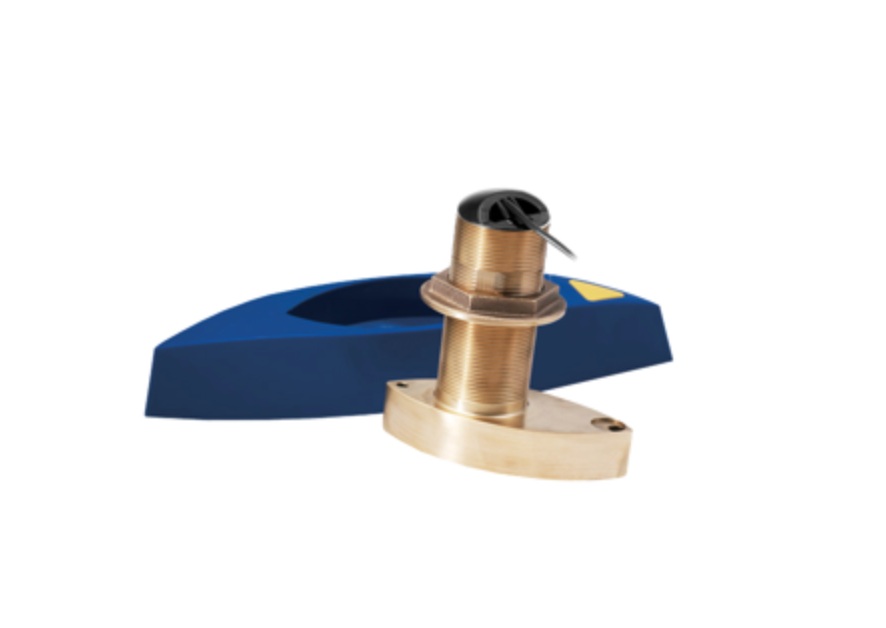

The Airmar B765LH is a compact thru-hull CHIRP transducer engineered for smaller fishing boats that demand big-transducer performance. Its dual-band design covers both low and high frequencies from a single unit, delivering exceptional depth penetration and target resolution across a wide range of conditions.

The included High-Performance Fairing maintains broadband performance at speeds over 30 knots (34 MPH).

Available with an OEM connector matched to your fishfinder, or as a Mix and Match™ version with a 9 m (29.5') cable and standard connector plus a 1 m (3') adapter cable. Confirm your fishfinder's connector type before ordering.

Features

Dual-band CHIRP: Low 40–75 kHz / High 130–210 kHz
Low frequency: 32°–21° beamwidth, max depth 366 m (1,200')
High frequency: 15°–9° beamwidth, max depth 213 m (700')
Depth and fast-response water temperature sensing
Covers popular fishing frequencies of 50 and 200 kHz
Bronze housing with High-Performance Fairing
Patented Xducer ID® technology
Suitable for vessels up to 9 m (30') LOA

Specifications

Frequency Band: Low–High CHIRP
Power Rating: 300 W (Low) / 600 W (High)
Low Frequency: 40–75 kHz | Beamwidth: 32°–21°
High Frequency: 130–210 kHz | Beamwidth: 15°–9°
Max Depth: 366 m / 1,200' (Low); 213 m / 700' (High)
Functions: Depth, Temperature
Material: Bronze
Hull Compatibility: Fiberglass or wood

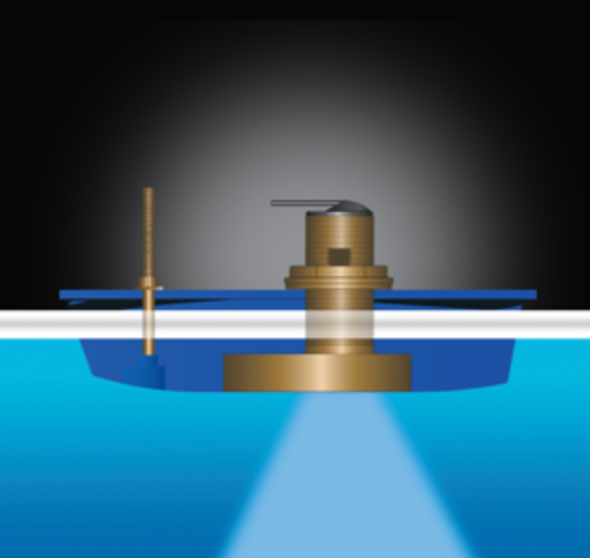

Mounting Style: Thru-Hull with Fairing
Max Deadrise: 24° (up to 25° with fairing)
Hole Size: 51 mm (2")
Connector: Raymarine 11-Pin
Usable Shaft Length: 121 mm (4.75")
Cable Length: 10 m (33')
Mix and Match Series: 12-Pin CHIRP
Acoustic Window: Urethane
Country of Origin: USA
Weight: 2.5 kg (5.5 lb)
Cross Reference: A80014
