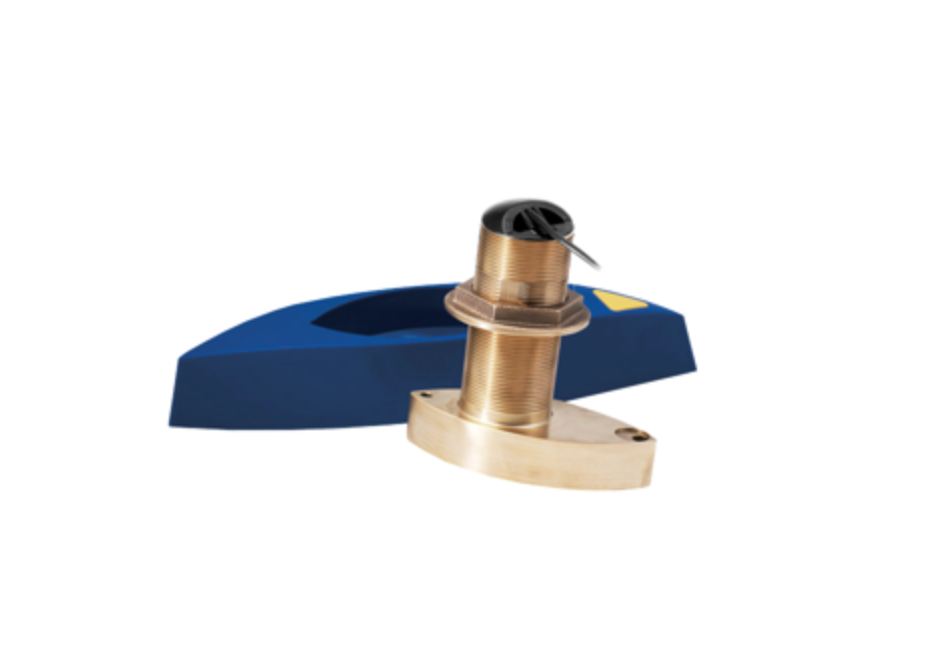

Airmar B765 Low-Medium CHIRP, 300/600W, Thru-Hull, Raymarine 11-Pin Transducer

SKU: B765C-LM-11R

$1,999.00 $2,061.72

Description

The Airmar B765LM is a compact thru-hull CHIRP transducer engineered for smaller fishing boats that demand big-transducer performance. Its dual-band Low-Medium design covers 40–75 kHz and 80–130 kHz from a single unit, delivering exceptional depth penetration alongside detailed bottom structure and tight-holding fish target resolution across a wide range of depths.

The included High-Performance Fairing maintains broadband performance at speeds over 30 knots (34 MPH).

Available with an OEM connector matched to your fishfinder, or as a Mix and Match™ version with a 9 m (29.5') cable and standard connector plus a 1 m (3') adapter cable. Confirm your fishfinder's connector type before ordering.

Features

Dual-band CHIRP: Low 40–75 kHz / Medium 80–130 kHz
Low frequency: 32°–21° beamwidth, max depth 366 m (1,200') at 300 W
Medium frequency: 24°–16° beamwidth, max depth 274 m (900') at 600 W
85 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 50, 88, and 107 kHz
Depth and fast-response water temperature sensing
Compact size suited to vessels up to 9 m (30') LOA
Bronze housing with High-Performance Fairing
Patented Xducer ID® technology

Specifications

Frequency Band: Low–Medium CHIRP
Power Rating: 300 W (Low) / 600 W (Medium)
Low Frequency: 40–75 kHz | Beamwidth: 32°–21°
Medium Frequency: 80–130 kHz | Beamwidth: 24°–16°
Max Depth: 366 m / 1,200' (Low); 274 m / 900' (Medium)
Functions: Depth, Temperature
Material: Bronze
Hull Compatibility: Fiberglass or wood

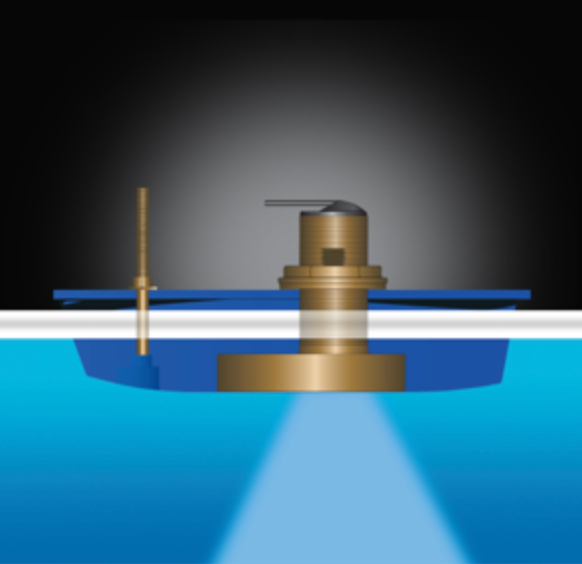

Mounting Style: Thru-Hull with Fairing
Max Deadrise: 24° (up to 25° with fairing)
Max Vessel LOA: 9 m (30')
Hole Size: 51 mm (2")
Usable Shaft Length: 121 mm (4.75")
Connector: Raymarine 11-Pin
Cable Length: 10 m (33')
Mix and Match Series: 12-Pin CHIRP
Acoustic Window: Urethane
Country of Origin: USA
Weight: 2.5 kg (5.5 lb)
