Airmar B785 Medium CHIRP, 600W, with Fairing Block, Raymarine 11-Pin, DT

SKU: B785C-M-11R

$1,389.00 $1,466.15

Description

The B785M is an economical, CHIRP-ready thru-hull transducer designed for offshore fishing and freshwater anglers. Operating at 80–130 kHz with 50 kHz of total bandwidth, it reveals fish in shallow and murky waters at medium depths up to 274 m (900') with ultra-clear target resolution. A perfectly suited CHIRP thru-hull for smaller fishing boats. Includes a high-performance Fairing Block for optimal broadband performance at speeds over 30 knots.

Features

Depth and fast-response water-temperature sensing
600 W of power
Medium frequency: 80–130 kHz | Beamwidth: 24°–16° | Max depth: 274 m (900')
50 kHz total bandwidth from one transducer
Covers popular fishing frequencies of 88 and 107 kHz
Excellent shallow to mid-depth performance, bottom detail, and fish-target separation
Recommended for planing or displacement hulls

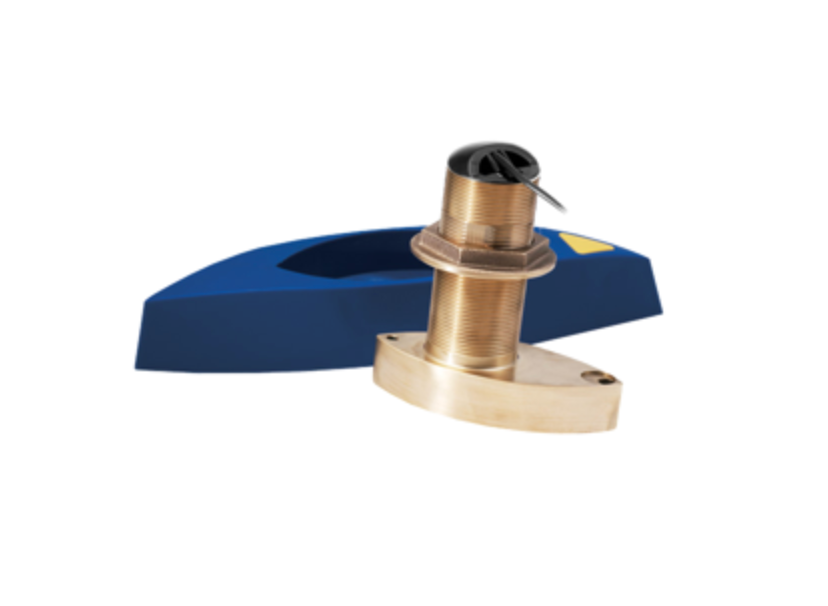

Bronze housing with high-performance Fairing Block for optimal high-speed performance
Also available as low-profile thru-hull (B75M)
Patented Xducer ID technology

Specifications

Frequency Band: Medium
Power Rating: 600 W
Medium Frequency: 80–130 kHz
Medium Frequency Beamwidth: 24°–16°
Single or Dual Frequency: CHIRP-Ready Single-Band
Functions: Depth, Temperature

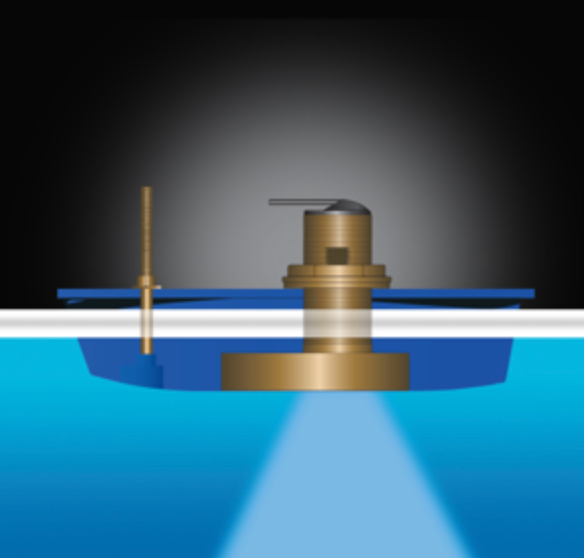

Mounting Style: Thru-Hull with Fairing
Tilted Element: No
Material: Bronze
Acoustic Window: Urethane
Hull Material: Fiberglass or Wood
Max Vessel LOA: Up to 9 m (30')
Deadrise Range: Up to 25° with fairing
Max Deadrise: Up to 24° with fairing
Connector: Raymarine 11-Pin
Display Connector: 11R
Sensor Connector: MMC
Mix and Match Series: 12-Pin CHIRP
Hole Size: 51 mm (2")
Usable Shaft Length: 121 mm (4.75")
Cable Length: 10 m (33')
Weight: 2.5 kg (5.5 lb.)
Max Depth: 274 m (900')
Common Use: Leisure/Yachting, Fishing
Country of Origin: USA
