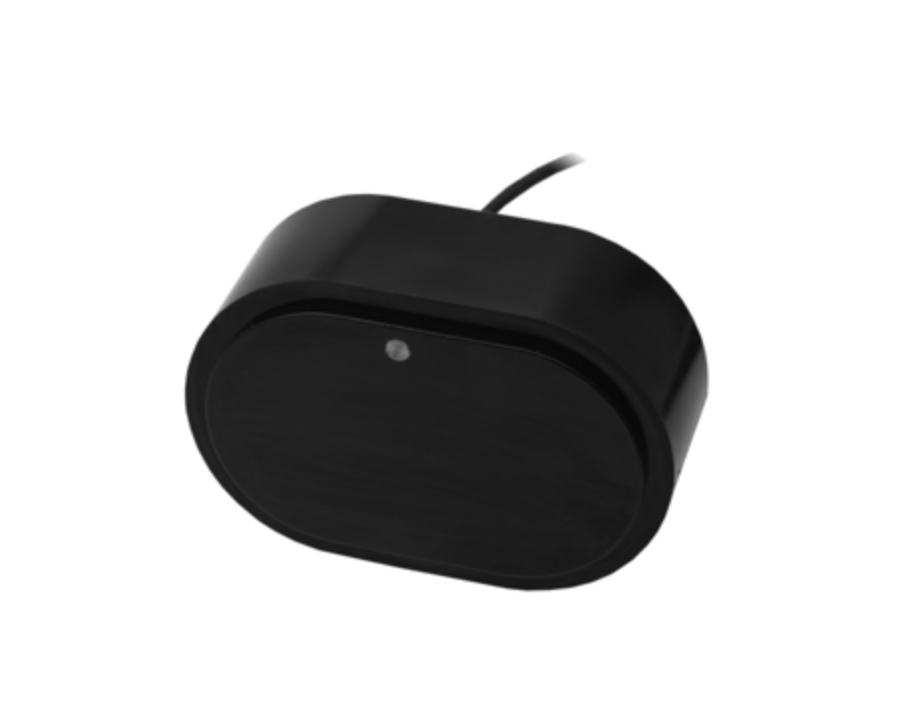

Airmar CM275 Low-High Wide CHIRP, 1kW, Raymarine 11-Pin, DT

SKU: CM275C-LHW-11R

$3,099.00 $3,614.28

Description

Get more coverage under your boat with Airmar's unique wide-beam, dual-frequency, CHIRP-ready CM275LHW. The high band operates across 150–250 kHz with a fixed 25° beam for all frequencies — delivering superior resolution and twice the coverage compared to most high-frequency narrow-beam transducers, with clear fish arches on the display.

The high wide beam is ideal for both inshore and pelagic fishing where resolution and maximum coverage are essential down to 152 m (500'). The low-frequency band and 1 kW of power support great deep-water performance down to 914 m (3,000'). Designed for custom mounting in a cavity or welded tank, with a curved-edge design for wet-box installation. SEALCAST seamless urethane housing for long product life. Available with an OEM connector or as a Mix and Match™ version.

Features

Depth and fast-response water-temperature sensing
1 kW of power
Low frequency: 42–65 kHz | Beamwidth: 25°–16° | Max depth: 914 m (3,000')
High frequency: 150–250 kHz | Beamwidth: 25° constant | Max depth: 152 m (500')
123 kHz total bandwidth from one transducer
Covers popular fishing frequencies of 50 and 200 kHz plus full bandwidth
Superior shallow-water performance, bottom detail, and fish-target separation
Wide high beam yields more coverage for detecting fish in the upper water column

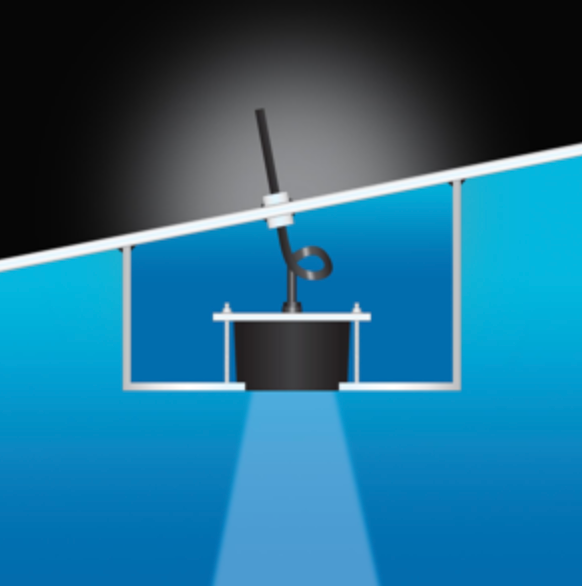

Curved-edge design for wet-box installation

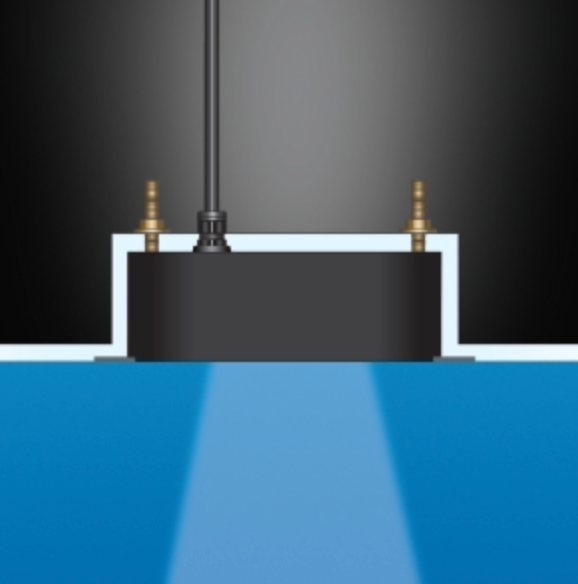

Designed for custom mounting in a cavity or welded tank
SEALCAST seamless urethane housing for long product life
Also available as thru-hull (B275LHW), transom (TM275LHW), and pocket mount (PM275LHW)
Patented Xducer ID technology

Specifications

Frequency Band: Low-High Wide
Power Rating: 1 kW
Low Frequency: 42–65 kHz
Low Frequency Beamwidth: 25°–16°
High Frequency: 150–250 kHz
High-Wide Beamwidth: 25° constant
Single or Dual Frequency: CHIRP-Ready Dual-Band
Functions: Depth, Temperature
Mounting Style: Tank, Cavity, Pocket/Keel Mount
Tilted Element: No
Material: Urethane
Hull Material: Metal
Max Deadrise: Accommodates any deadrise angle based on custom installation
Max Vessel LOA: 8 m (25') and above
Connector: Raymarine 11-Pin
Display Connector: 11R
Sensor Connector: MMC
Mix and Match Series: 12-Pin CHIRP
Cable Length: 10 m (33')
Weight: 5.3 kg (11.6 lb.)
Max Depth: Low 914 m (3,000') | High wide 152 m (500')
Common Use: Fishing, Commercial Fishing
Country of Origin: USA
