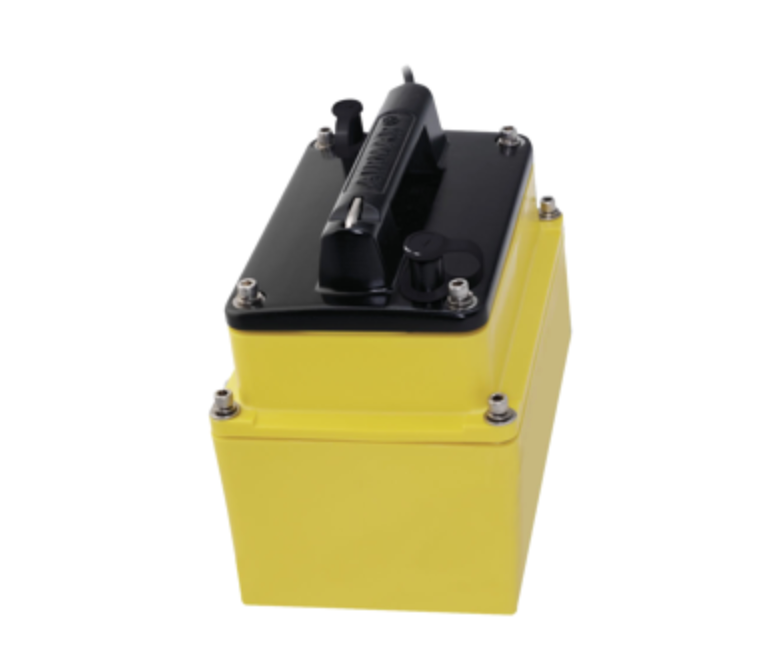

Airmar M260 50/200kHz, 1kW, Raymarine A, DO

SKU: M260-RAYA

$2,029.00 $2,280.23

Description

The performance of Airmar's 1 kW M260 family of transducers is legendary. The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz, the narrow 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs, while the 50 kHz is outstanding for deep-water detection with a wide 19° beam for broad coverage under the boat.

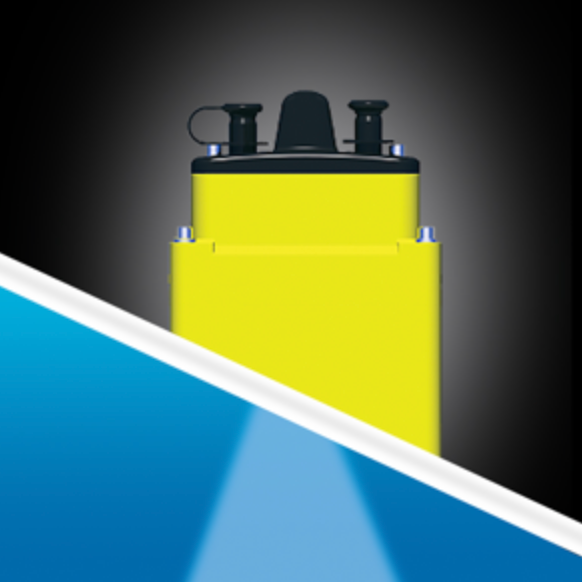

The M260 is an in-hull transducer — no hull penetration required. It is installed in the included tank, which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. A popular choice for customers who don't want to drill a hole in their hull, and ideal for trailered or multi-hulled boats. Solid fibreglass hulls only.

Features

Depth sensing only
1 kW power output
Dual-frequency elements:
- 50 kHz — 19° beamwidth, max depth 762 m (2,500')
- 200 kHz — 6° beamwidth, max depth 305 m (1,000')
Available with diplexer (single transmission line) or without (dual transmission line fishfinders)
Plastic transducer housing and mounting tank
No hull penetration — ideal for trailered or multi-hulled boats
Also available in transom (TM260), bronze thru-hull (B260), and stainless steel thru-hull (SS260) mounts
Patented Xducer ID® technology

Specifications

Power Rating: 1 kW
Frequency: 50 / 200 kHz (Conventional Dual Frequency)
Beamwidth: 19° (50 kHz) / 6° (200 kHz)
Max Depth: 762 m (2,500') at 50 kHz | 305 m (1,000') at 200 kHz
Functions: Depth only
Mounting Style: In-Hull
Deadrise Range: 0° to 22°
Max Deadrise: Up to 30°
Hull Material: Solid fibreglass only
Acoustic Window: Layered Plastic Urethane (LPU)
Housing Material: Plastic
Cable Length: 10 m (33')
Connector: Raymarine 9-Pin (RAYA)
Mix and Match Series: 9-Pin 1000 Watt
Max Vessel LOA: Up to 11 m (36')
Weight: 6.2 kg (13.5 lb)
Common Use: Fishing, Commercial Fishing
Country of Origin: USA
