Airmar P75 Medium CHIRP, 600W, Raymarine 11-Pin, DO

SKU: P75C-M-11R

$559.00 $641.14

Description

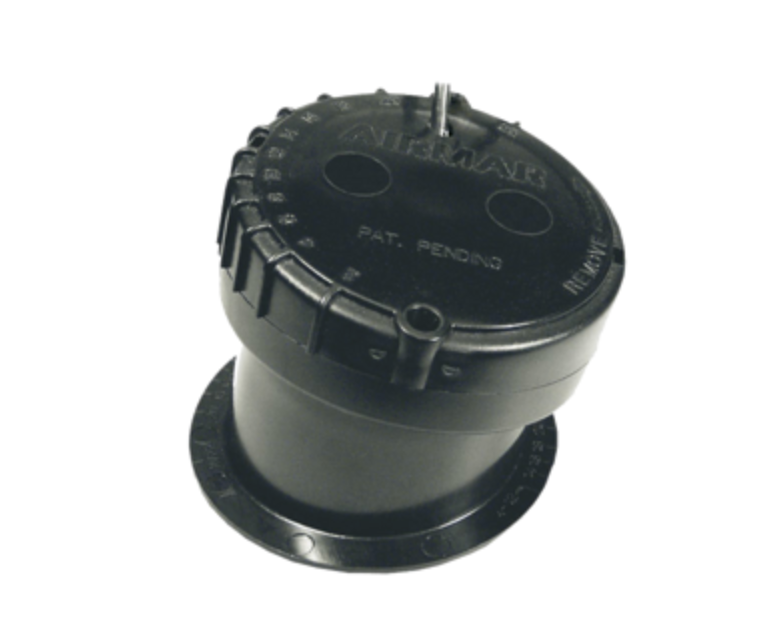

The Airmar P75M is a 600 W, CHIRP-ready in-hull transducer operating in the medium-frequency band (80–130 kHz). Ideal for inshore saltwater, lakes, and coastal fishing, it delivers outstanding target definition down to 274 m (900'). The major benefit of an in-hull installation is no protruding features on the exterior of the hull — making it the perfect choice for trailered or lifted boats up to 8 m (25') with a solid fibreglass hull.

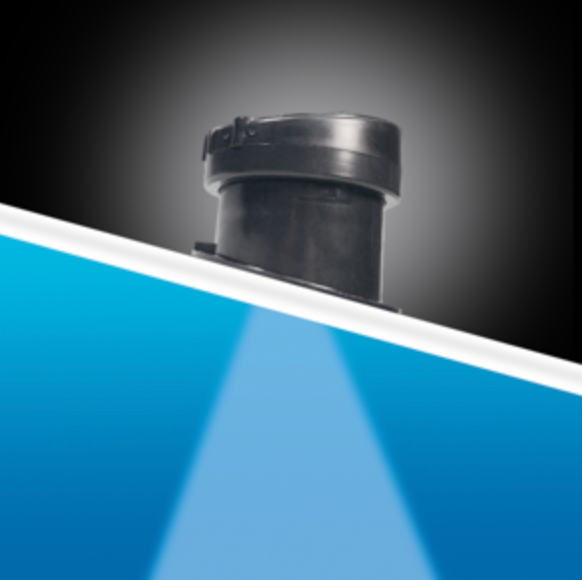

Installation is straightforward: a plastic mounting base is aligned to the centreline and secured inside the hull, then filled with non-toxic antifreeze. The transducer is inserted into the base and adjusted for the correct deadrise offset, ensuring the beam shoots straight down for maximum echo returns. The eco-friendly coolant provides the ideal medium for transmitting through solid fibreglass into the surrounding water.

Available as an OEM connector model or as a Mix and Match™ version (9 m cable with standard connector + 1 m adapter). Ensure you know which connector type your fishfinder requires before ordering.

Features

Depth sensing only
600 W power output — max depth 274 m (900')
Medium frequency: 80–130 kHz | Beamwidth: 24°–16°
50 kHz of total bandwidth from one transducer
Ideal for inshore or coastal fishing in shallow to medium depths
No hull penetration — perfect for trailered or lifted boats
Urethane transducer housing with adjustable plastic mounting base
Suitable for planing or displacement hulls (solid fibreglass only)
Also available as thru-hull (B785M) and Tilted Element™ thru-hull (B75M) mounts
Patented Xducer ID® technology

Specifications

Power Rating: 600 W
Frequency: 80–130 kHz (Medium Band, CHIRP-Ready Single-Band)
Beamwidth: 24°–16°
Max Depth: 274 m (900')
Functions: Depth only
Mounting Style: In-Hull
Deadrise Range: 0° to 22°
Max Deadrise: Up to 22°
Acoustic Window: Urethane
Housing Material: Plastic
Cable Length: 10 m (33')
Connector: Raymarine 11-Pin (11R)
Mix and Match Series: 12-Pin CHIRP
Max Vessel LOA: Up to 8 m (26')
Weight: 4.2 kg (9.2 lb)
Common Use: Fishing, Leisure/Yachting
Country of Origin: USA
