Airmar P79 50/200kHz, 600W, Raymarine, DO

SKU: P79-RAY

$299.95 $307.03

Description

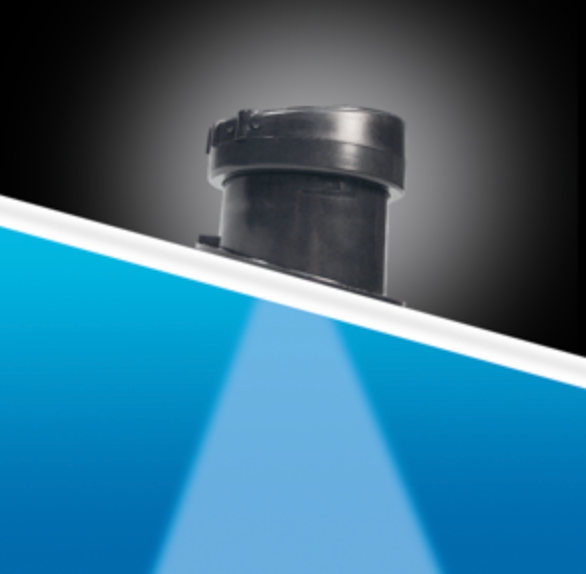

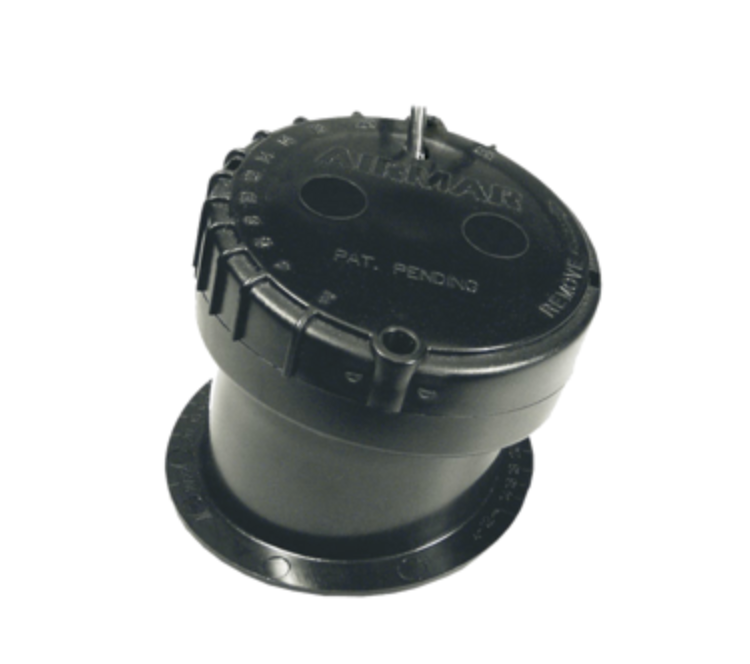

The Airmar P79 is a dual-frequency, depth-only, in-hull transducer that easily adjusts to hull deadrise angles up to 22°. No hull penetration required — the P79 includes a plastic mounting base that is aligned to the centreline and secured inside the hull, then filled with non-toxic antifreeze. The transducer is inserted into the base and adjusted for the correct deadrise offset, ensuring the beam shoots straight down for maximum echo returns. The eco-friendly coolant provides the ideal medium for transmitting through solid fibreglass into the surrounding water.

Designed for smaller boats up to 8 m (25') with a solid fibreglass hull, the P79 is the perfect choice for trailered or lifted boats, planing-hull powerboats, RIBs, and racing sailboats.

Features

Depth sensing only
600 W power output
Dual-frequency elements:
- 50 kHz — 45° beamwidth, max depth 305 m (1,000')
- 200 kHz — 12° beamwidth, max depth 183 m (600')
Adjusts to hull deadrise angles up to 22°
Drill-free installation — no hull protrusion
Urethane transducer housing with adjustable plastic mounting base
Ideal for trailered boats, planing hulls, RIBs, and racing sailboats
Also available in 200 kHz only and Smart™ Sensor version (P79S)

Specifications

Power Rating: 600 W
Frequency: 50 / 200 kHz (Conventional Dual Frequency)
Beamwidth: 45° (50 kHz) / 12° (200 kHz)
Max Depth: 305 m (1,000') at 50 kHz | 183 m (600') at 200 kHz
Functions: Depth only
Mounting Style: In-Hull
Deadrise Range: 0° to 22°
Max Deadrise: Up to 22°
Hull Material: Solid fibreglass only
Acoustic Window: Layered Plastic Urethane (LPU)
Housing Material: Plastic
Cable Length: 10 m (33')
Connector: Raymarine 7-Pin (RAY)
Mix and Match Series: 5-Pin 600 Watt
Max Vessel LOA: Up to 8 m (26')
Weight: 2.3 kg (5 lb)
Common Use: Fishing, Leisure/Yachting
Cross Reference: E66008
Country of Origin: USA
