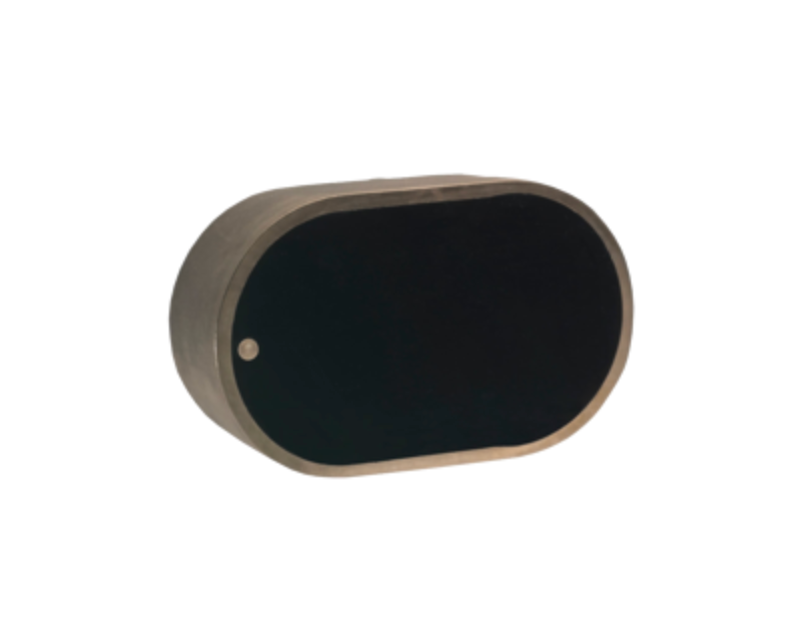

Airmar PM265 Low-Medium CHIRP, 1kW, Raymarine 11-Pin, DT

SKU: PM265C-LM-11R

$3,199.00 $3,642.62

Description

The Airmar PM265LM is a CHIRP-ready, pocket-mount transducer and a perfect mid to deep-depth performer. Its huge dual-band bandwidth covers many of the most popular frequencies for targeting top gamefish — delivering clear target details, bottom discrimination, and bait and gamefish separation at all depths.

The low-frequency band (42–65 kHz) provides deep-water performance down to 914 m (3,000') — ideal for scouting or fishing in deeper water. The medium-frequency band (85–135 kHz) excels at identifying targets suspended close to the bottom, on structure, and within the water column down to 457 m (1,500').

The bronze housing is designed for custom pocket mounting and accommodates any deadrise angle based on installation. Available as an OEM connector model or as a Mix and Match™ version (9 m cable with standard connector + 1 m adapter).

Features

Depth and fast-response water temperature sensing
1 kW power output
Low frequency: 42–65 kHz | Beamwidth: 25°–16° | Max depth: 914 m (3,000')
Medium frequency: 85–135 kHz | Beamwidth: 16°–11° | Max depth: 457 m (1,500')
73 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 50, 88, and 107 kHz plus full bandwidth

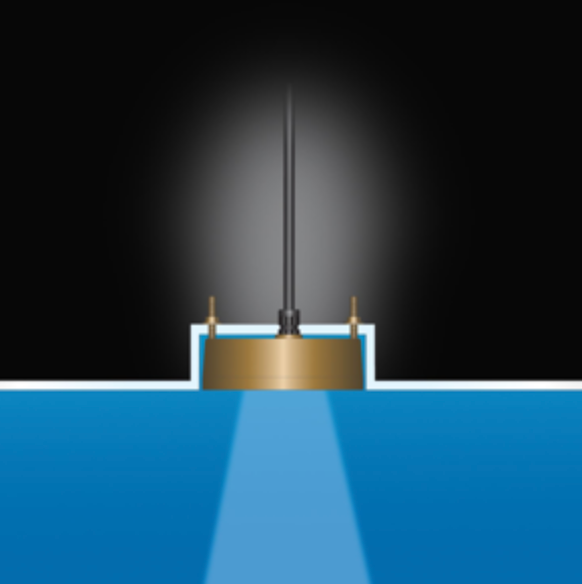

Bronze housing for custom pocket/keel mounting — accommodates any deadrise angle
Solid fibreglass hulls only
Also available as transom (TM265LM), cavity/welded-tank (CM265LM), thru-hull (B265LM), and in-hull (M265LM) mounts
Patented Xducer ID® technology

Specifications

Power Rating: 1 kW
Frequency: 42–65 kHz (Low) / 85–135 kHz (Medium) — CHIRP-Ready Dual-Band
Low Beamwidth: 25°–16° | Medium Beamwidth: 16°–11°
Max Depth: 914 m (3,000') at low | 457 m (1,500') at medium
Functions: Depth, Temperature
Mounting Style: Tank / Cavity / Pocket / Keel Mount
Housing Material: Bronze
Acoustic Window: Urethane
Hull Material: Solid fibreglass only
Max Deadrise: Any (custom installation)
Cable Length: 10 m (33')
Connector: Raymarine 11-Pin (11R)
Mix and Match Series: 12-Pin CHIRP
Max Vessel LOA: 8 m (25') and above
Weight: 5.2 kg (11.5 lb)
Common Use: Fishing, Commercial Fishing
Country of Origin: USA
