Airmar PM275 Low-High Wide CHIRP, 1kW, Raymarine 11-Pin, DT

SKU: PM275C-LHW-11R

$3,199.00 $3,771.43

Description

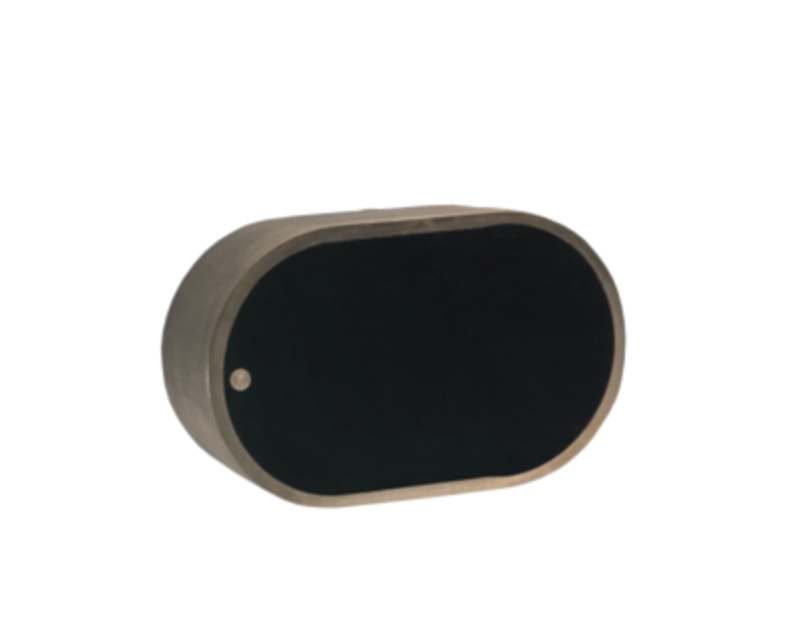

Get more coverage under your boat with the Airmar PM275LHW — a unique wide-beam, dual-band, CHIRP-ready pocket-mount transducer combining low and high-wide frequencies in a single unit. The high-wide band (150–250 kHz) features a constant 25° beam, delivering twice the coverage and clearer fish arches compared to most narrow-beam high-frequency transducers — ideal for inshore and pelagic fishing down to 152 m (500'). The low-frequency band (42–65 kHz) and 1 kW of power provide outstanding deep-water performance down to 914 m (3,000').

The bronze housing is designed for custom pocket/keel mounting and accommodates any deadrise angle based on installation. Available as an OEM connector model or as a Mix and Match™ version (9 m cable with standard connector + 1 m adapter).

Features

Depth and fast-response water temperature sensing
1 kW power output
Low frequency: 42–65 kHz | Beamwidth: 25°–16° | Max depth: 914 m (3,000')
High Wide frequency: 150–250 kHz | Constant 25° beamwidth | Max depth: 152 m (500')
123 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 50 and 200 kHz plus full bandwidth
High wide beamwidth yields twice the coverage for detecting fish in the upper water column

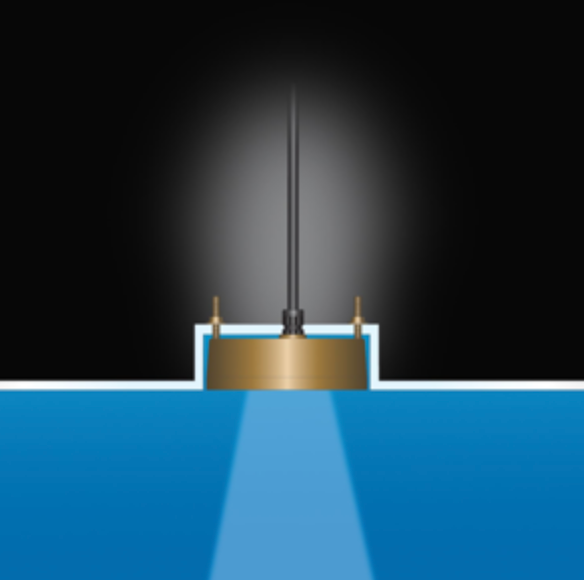

Bronze housing for custom pocket/keel mounting — accommodates any deadrise angle
Solid fibreglass hulls only
Also available as thru-hull (B275LHW) and transom (TM275LHW) mounts
Patented Xducer ID® technology

Specifications

Power Rating: 1 kW
Frequency: 42–65 kHz (Low) / 150–250 kHz (High Wide) — CHIRP-Ready Dual-Band
Low Beamwidth: 25°–16° | High Wide Beamwidth: 25° constant
Max Depth: 914 m (3,000') at low | 152 m (500') at high wide
Functions: Depth, Temperature
Mounting Style: Tank / Cavity / Pocket / Keel Mount
Housing Material: Bronze
Acoustic Window: Urethane
Hull Material: Solid fibreglass only
Max Deadrise: Any (custom installation)
Cable Length: 10 m (33')
Connector: Raymarine 11-Pin (11R)
Mix and Match Series: 12-Pin CHIRP
Max Vessel LOA: 8 m (25') and above
Weight: 5.3 kg (11.6 lb)
Common Use: Fishing, Commercial Fishing
Cross Reference: A80325
Country of Origin: USA
