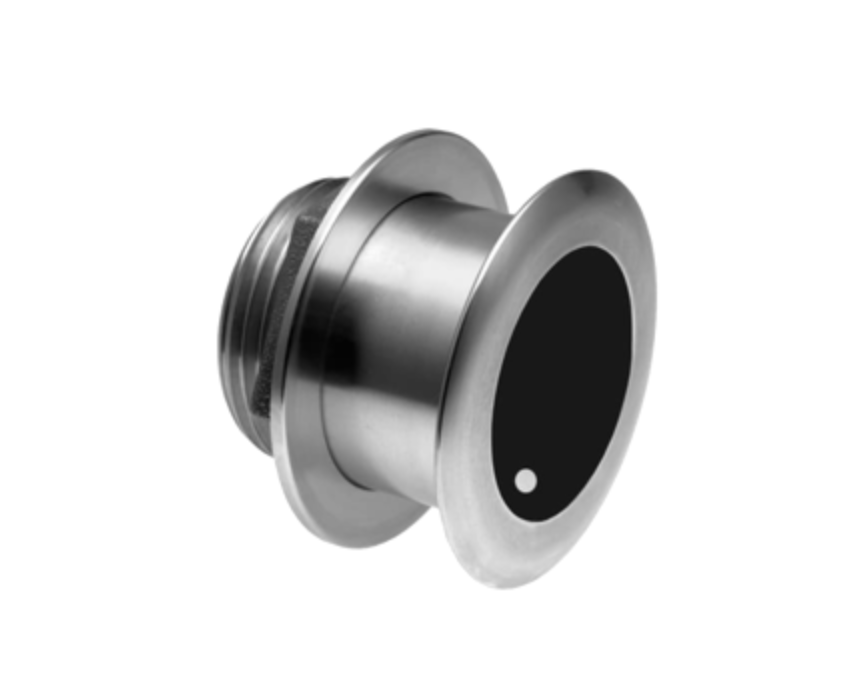

Airmar SS175 High CHIRP, 1kW, 20° Tilted Element, Raymarine 11-Pin Transducer

SKU: SS175C-20-H-11R

$2,099.00 $2,278.57

Description

The Airmar SS175H is a high-power, high-frequency CHIRP thru-hull transducer in a stainless steel housing, compatible with all hull materials. Ideal for centre consoles and smaller vessels up to 11 m (36'), it excels at pinpointing fish holding tight to wrecks, reefs, and structure, with outstanding target separation on baitfish and schooling gamefish.

Operating at 130–210 kHz with 1 kW of power and 80 kHz of total bandwidth, the SS175H delivers superior shallow-water performance, crisp bottom detail, and excellent display resolution at speed.

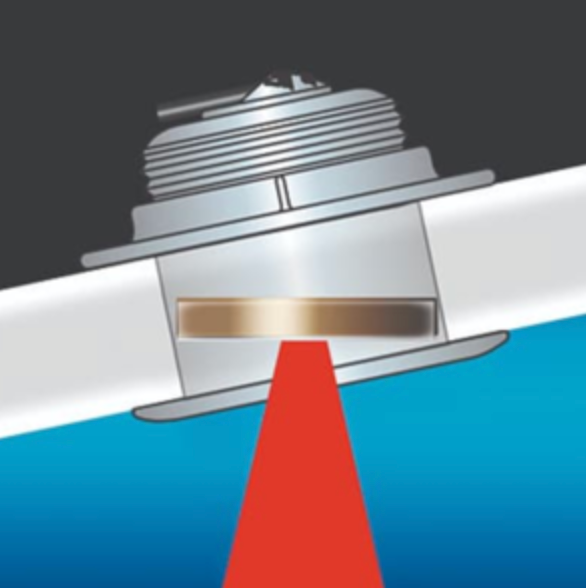

This model features Airmar's Tilted Element™ design — the ceramic element is fixed at a set angle within the housing so the transducer installs nearly flush to the hull while the element remains horizontal, maximising echo returns regardless of hull deadrise.

The SS175H is available in three Tilted Element versions to suit your hull:

0° tilt — for hull deadrise 0° to 7°
12° tilt — for hull deadrise 8° to 15°
20° tilt — for hull deadrise 16° to 24°

Available with an OEM connector matched to your fishfinder, or as a Mix and Match™ version with a 9 m (29.5') cable and standard connector plus a 1 m (3') adapter cable. Also available in bronze housing as the B175H for fiberglass or wood hulls. Confirm your fishfinder's connector type before ordering.

Features

High CHIRP: 130–210 kHz, 80 kHz total bandwidth
1 kW power output
Max depth: 304 m (1,000')
Beamwidth: 10°–6° (narrow beam for precise target identification)
Depth and fast-response water temperature sensing
Tilted Element™ — corrects for hull deadrise without angled installation
Stainless steel housing — compatible with all hull materials
Low-profile thru-hull; good display resolution at speed
Suited to stepped, planing, or displacement hulls
Vessels up to 11 m (36') LOA
Also available: B175H (bronze, fiberglass/wood hulls)
Patented Xducer ID™ technology

Specifications

Frequency Band: High CHIRP
Frequency Range: 130–210 kHz | Beamwidth: 10°–6°
Power Rating: 1 kW
Max Depth: 304 m (1,000')
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Tilt Angle (this model): 20°
Deadrise Range: 16° to 24°
Max Deadrise: 24°
Max Vessel LOA: 11 m (36')
Material: Stainless Steel
Hull Compatibility: All hull materials
Hole Size: 95 mm / 3-3/4" (fiberglass/wood); 105 mm / 4-1/8" (metal)
Connector: Raymarine 11-Pin
Cable Length: 10 m (33')
Mix and Match Series: 12-Pin CHIRP
Acoustic Window: Urethane
Country of Origin: USA
Weight: 2.7 kg (6 lb)
