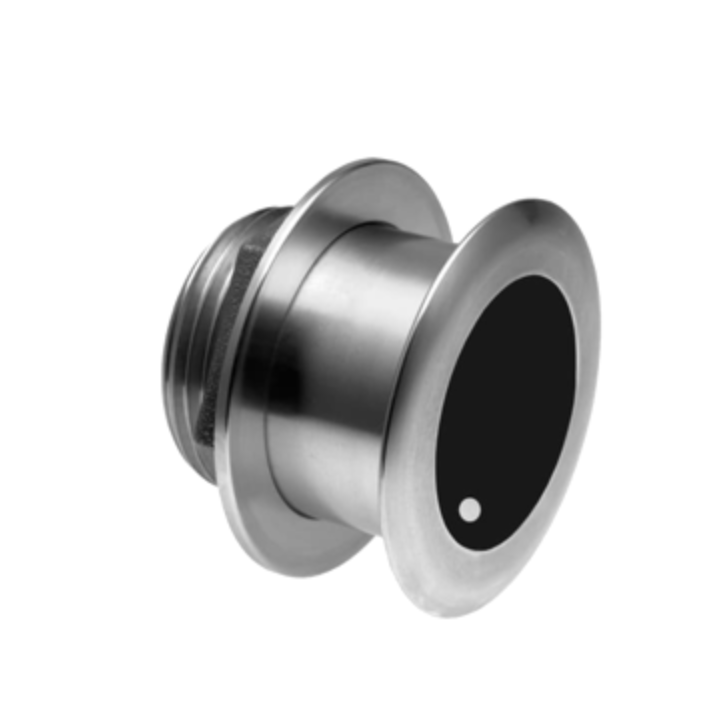

Airmar SS175 High Wide CHIRP, 1kW, 0° Tilted Element™, Raymarine 11-Pin, DT

SKU: SS175C-0-HW-11R

$2,449.00 $2,885.15

Description

Get more coverage under your boat with Airmar's unique wide-beam, high-frequency, CHIRP-ready SS175HW. Operating across 150–250 kHz with a constant 25° beamwidth, it delivers superior bottom detail and fish-target separation — with twice the coverage of most high-frequency narrow-beam transducers for detecting fish in the upper water column and producing clear fish arches on your display. The ideal choice for both inshore and pelagic fishing where resolution and maximum coverage are essential, down to 152 m (500').

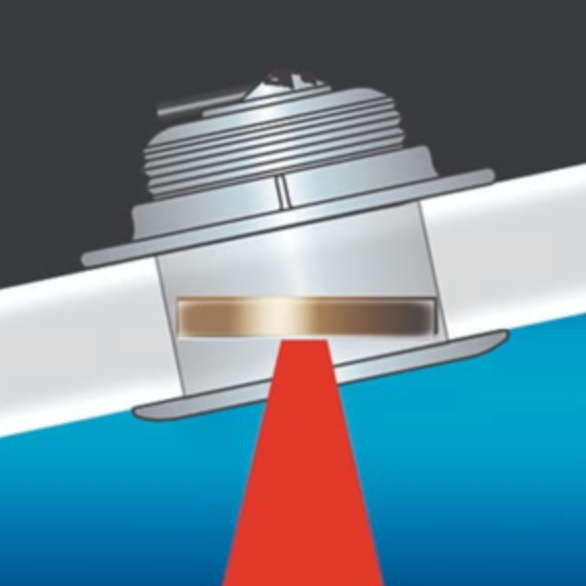

The SS175HW uses Airmar's patented Tilted Element™ technology, with the ceramic element fixed at a set angle within the housing. When installed flush to the hull, the tilt corrects for hull deadrise, orienting the element horizontally for maximum echo returns.

Available in three Tilted Element models:

Fixed 20° — for 16° to 24° hull deadrise angles
Fixed 12° — for 8° to 15° hull deadrise angles
Fixed 0° — for 0° to 7° hull deadrise angles

This listing is for the 0° Tilted Element version with a Raymarine 11-Pin connector. Available as an OEM connector model or as a Mix and Match™ version (9 m cable with standard connector + 1 m adapter). Stainless steel housing — compatible with all hull materials.

Features

Depth and fast-response water temperature sensing
1 kW power output — max depth 152 m (500')
High Wide frequency: 150–250 kHz | Constant 25° beamwidth
100 kHz of total bandwidth from one transducer
Covers the popular 200 kHz fishing frequency plus full bandwidth
Twice the upper-water-column coverage vs. narrow-beam high-frequency transducers
Low-profile thru-hull housing — good display resolution at speed
Suitable for stepped, planing, or displacement hulls
Stainless steel housing — compatible with all hull materials
Also available in bronze housing (B175HW), thru-hull with fairing (B285HW), transom (TM185HW), and in-hull (M285HW) mounts
Patented Xducer ID® technology

Specifications

Power Rating: 1 kW
Frequency: 150–250 kHz (High Wide Band, CHIRP-Ready Dual-Band)
Beamwidth: Constant 25°
Max Depth: 152 m (500')
Tilt Angle: 0°
Deadrise Range: 0° to 7°
Max Deadrise: Up to 24°
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Housing Material: Stainless Steel
Hull Compatibility: All hull materials
Acoustic Window: Urethane
Cable Length: 10 m (33')
Connector: Raymarine 11-Pin (11R)
Mix and Match Series: 12-Pin CHIRP
Hole Size: Fibreglass/wood 95 mm (3-3/4") | Metal 105 mm (4-1/8")
Max Vessel LOA: Up to 11 m (36')
Weight: 2.7 kg (6 lb)
Common Use: Fishing, Commercial Fishing
Country of Origin: USA
