Airmar SS175 High Wide CHIRP, 1kW, 12° Tilted Element, Raymarine 11-Pin Transducer

SKU: SS175C-12-HW-11R

$2,699.00 $2,885.15

Description

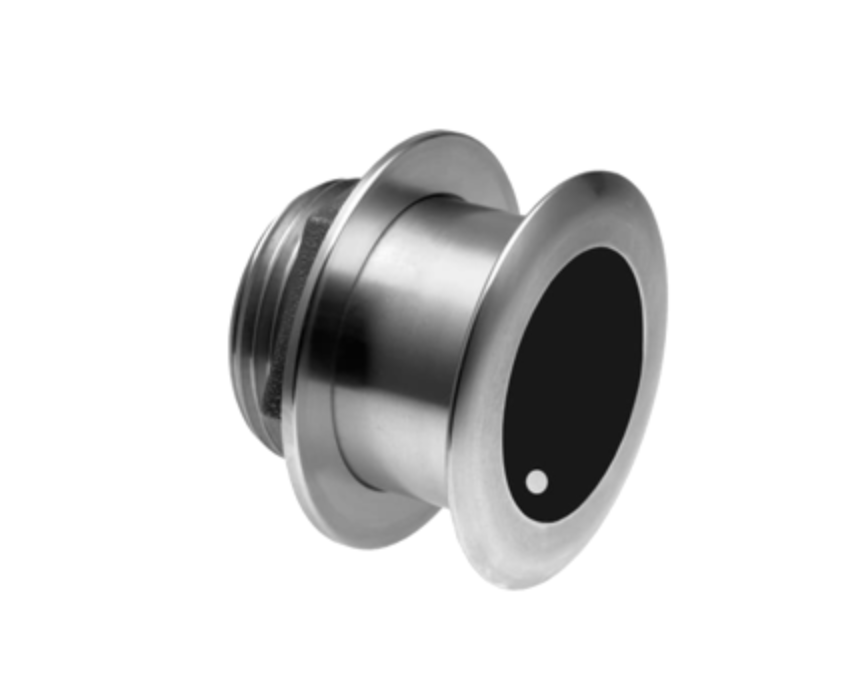

The Airmar SS175HW is a high-power, wide-beam CHIRP thru-hull transducer in a stainless steel housing, compatible with all hull materials. Built for inshore and pelagic fishing where maximum coverage under the boat is critical, its High Wide frequency band (150–250 kHz) maintains a constant 25° beam across all frequencies — delivering roughly twice the coverage of a standard narrow-beam high-frequency transducer for superior fish arch definition and upper water column detection.

With 1 kW of power, 100 kHz of total bandwidth, and a max depth of 152 m (500'), the SS175HW excels at bottom detail, fish-target separation, and covering the popular 200 kHz fishing frequency and beyond. Suited to vessels up to 11 m (36') LOA.

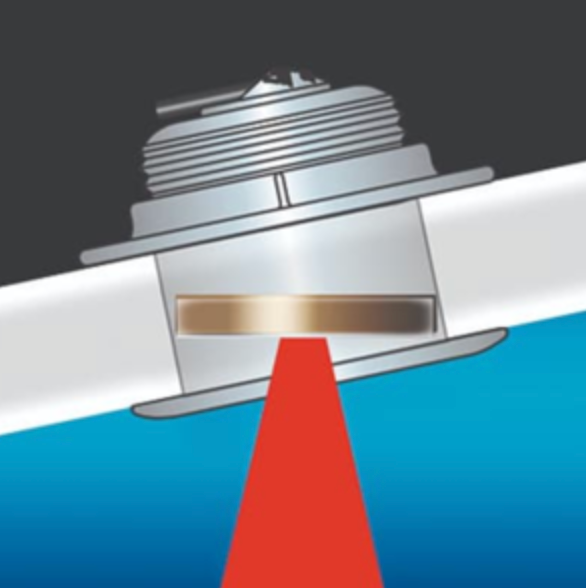

This model features Airmar's Tilted Element™ design — the ceramic element is fixed at a set angle within the housing so the transducer installs nearly flush to the hull while the element remains horizontal, maximising echo returns regardless of hull deadrise.

The SS175HW is available in three Tilted Element versions to suit your hull:

0° tilt — for hull deadrise 0° to 7°
12° tilt — for hull deadrise 8° to 15°
20° tilt — for hull deadrise 16° to 24°

Available with an OEM connector matched to your fishfinder, or as a Mix and Match™ version with a 9 m (29.5') cable and standard connector plus a 1 m (3') adapter cable. Also available: B175HW (bronze, fiberglass/wood hulls), B285HW (thru-hull with fairing), TM185HW (transom), M285HW (in-hull). Confirm your fishfinder's connector type before ordering.

Features

High Wide CHIRP: 150–250 kHz, constant 25° beamwidth, 100 kHz total bandwidth
1 kW power output
Max depth: 152 m (500')
Twice the coverage of standard narrow-beam high-frequency transducers
Superior fish arch definition and upper water column detection
Covers popular 200 kHz fishing frequency and full bandwidth
Depth and fast-response water temperature sensing
Tilted Element™ — corrects for hull deadrise without angled installation
Stainless steel housing — compatible with all hull materials
Low-profile thru-hull; good display resolution at speed
Suited to stepped, planing, or displacement hulls
Vessels up to 11 m (36') LOA
Patented Xducer ID® technology

Specifications

Frequency Band: High Wide CHIRP
Frequency Range: 150–250 kHz | Beamwidth: 25° (constant)
Power Rating: 1 kW
Max Depth: 152 m (500')
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Tilt Angle (this model): 12°
Deadrise Range: 8° to 15°
Max Deadrise: 24°
Max Vessel LOA: 11 m (36')
Material: Stainless Steel
Hull Compatibility: All hull materials
Hole Size: 95 mm / 3-3/4" (fiberglass/wood); 105 mm / 4-1/8" (metal)
Usable Shaft Length: Not specified
Connector: Raymarine 11-Pin
Cable Length: 10 m (33')
Mix and Match Series: 12-Pin CHIRP
Acoustic Window: Urethane
Country of Origin: USA
Weight: 2.7 kg (6 lb)
