Airmar SS60 50/200kHz, 600W, 0° Tilted Element, Raymarine 7-Pin, DT

SKU: SS60-0-RAY

$729.95 $772.63

Description

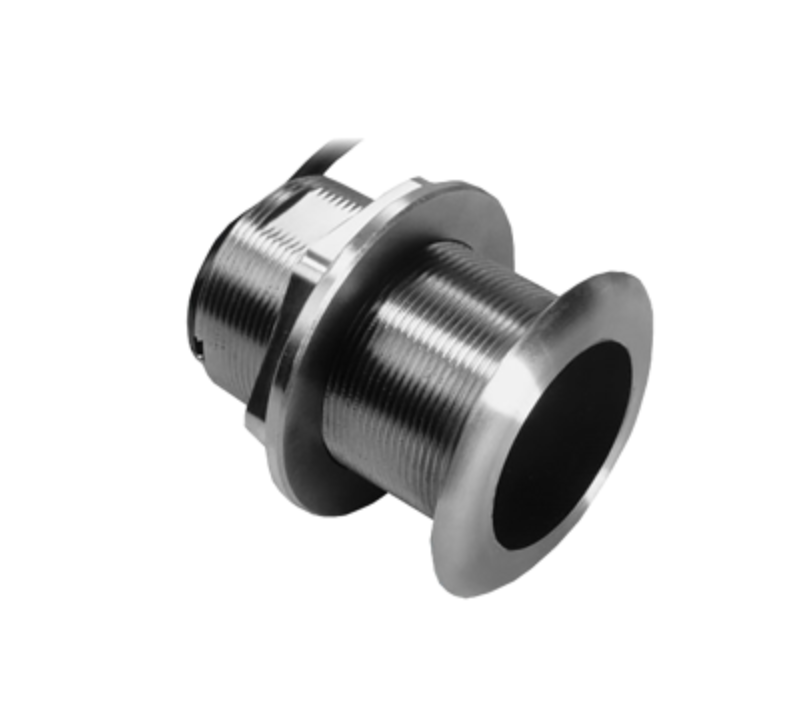

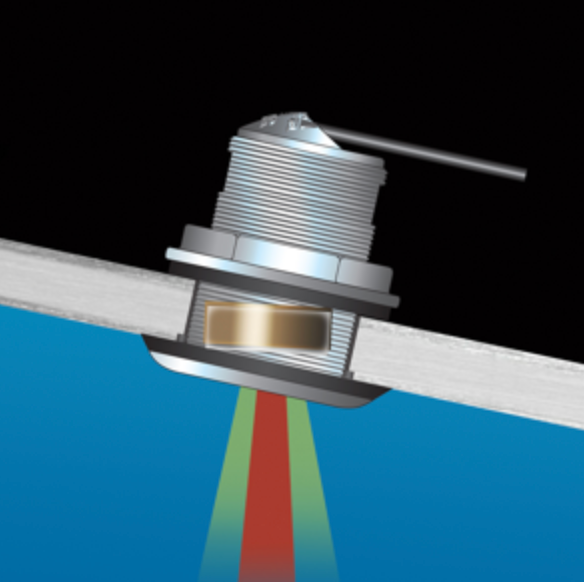

The SS60 is a 600 W, 50/200 kHz thru-hull transducer featuring Airmar's Tilted Element design — ideal for centre-console and trailered boats. The ceramic element is fixed at a set angle within the housing. When installed flush to the hull, the tilt corrects for hull deadrise and orients the beam directly downward, ensuring maximum echo returns for more accurate depth readings. The low-profile stainless steel housing extends only 5 mm (3/16") below the hull with no effect on running performance, and is compatible with all hull materials.

This 0° tilted version suits hull deadrise angles of 0° to 7°. Also available in bronze (B60) for fiberglass or wood hulls.

Features

Depth and fast-response water-temperature sensing
600 W of power
50 kHz: 45° beamwidth | Max depth: 366 m (1,200')
200 kHz: 12° beamwidth | Max depth: 213 m (700')
Perfect for centre-console or trailered boats
Low-profile housing — extends only 5 mm (3/16") below the hull
No effect on boat running performance
Stainless steel housing — compatible with all hull materials
Also available in bronze (B60) for fiberglass or wood hulls

Specifications

Frequency Band: 50/200 kHz
Power Rating: 600 W
Conventional Beam: 45° / 12°
Single or Dual Frequency: Conventional Dual Frequency
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Tilted Element: Yes — 0° tilt
Deadrise Range: 0° to 7°
Max Deadrise: Up to 24°
Material: Stainless Steel
Acoustic Window: Urethane
Hull Material: Compatible with all hull materials
Max Vessel LOA: Up to 8 m (26')
Connector: Raymarine 7-Pin
Display Connector: RAY
Sensor Connector: MM
Mix and Match Series: 5-Pin 600 Watt
Hole Size: Fiberglass/wood 60 mm (2-3/8") | Metal 70 mm (2-3")
Usable Shaft Length: 68.5 mm (2.70")
Cable Length: 10 m (33')
Weight: 1.4 kg (3 lb.)
Max Depth: Low 366 m (1,200') | High 213 m (700')
Common Use: Leisure/Yachting, Fishing
Country of Origin: USA
Cross Reference: A80568
