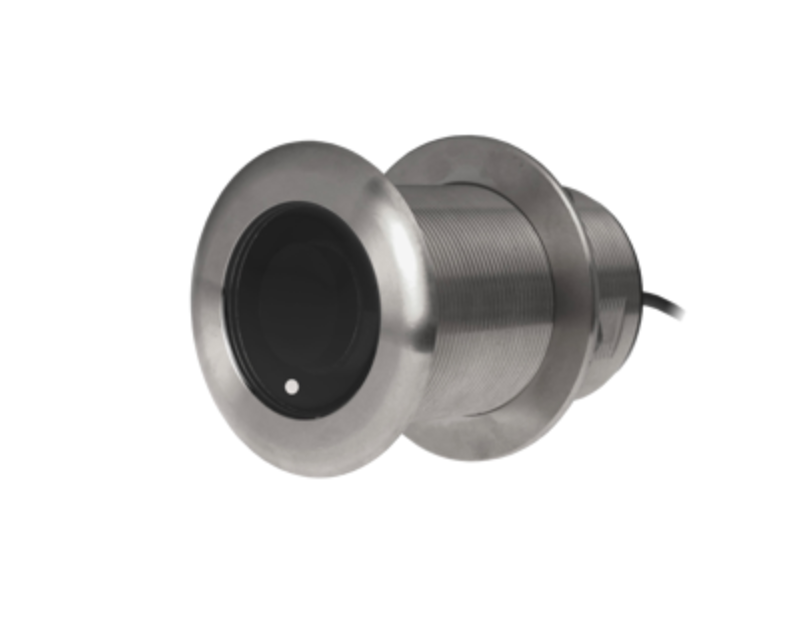

Airmar SS75 Medium CHIRP, 600W, 20° Tilted Element, Raymarine 11-Pin, DT

SKU: SS75C-20-M-11R

$1,329.00 $1,398.57

Description

Airmar's low-profile, CHIRP-ready SS75M is the perfect addition to smaller boats such as centre consoles. Delivering up to 50 kHz of total bandwidth from a single installation, it operates across 80–130 kHz for outstanding bottom detail in shallow and medium depths down to 274 m (900'). Medium frequency provides better shallow-water performance and deeper reach than a high-frequency band.

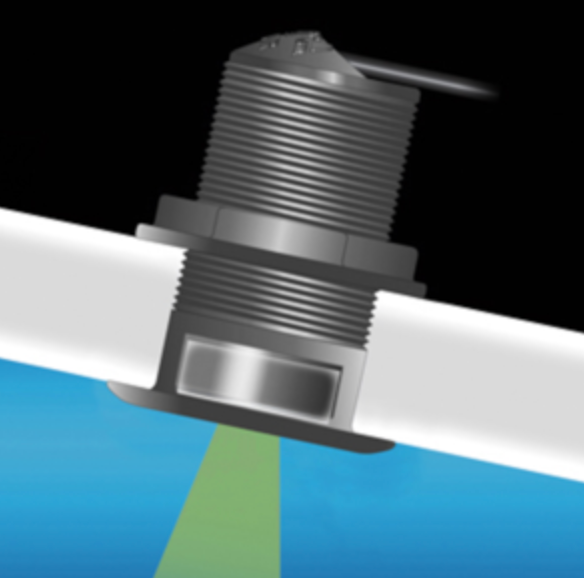

The Tilted Element design fixes the ceramic element at a set angle within the housing. When installed flush to the hull, the tilt corrects for hull deadrise and orients the beam directly downward — maximising echo returns for more accurate depth readings. This 20° tilted version suits hull deadrise angles of 16° to 24°. The stainless steel housing is compatible with all hull materials. Available with an OEM connector or as a Mix and Match™ version.

Features

Depth and fast-response water-temperature sensing
600 W power | Max depth: 274 m (900')
Medium frequency: 80–130 kHz | Beamwidth: 24°–16°
Better shallow-water performance and deeper reach than high-frequency band
Low-profile thru-hull housing — good display resolution at speed when installed correctly
Recommended for stepped, planing, or displacement hulls
Stainless steel housing — compatible with all hull materials
Also available in bronze (B75M) for fiberglass or wood hulls
Patented Xducer ID technology

Specifications

Frequency Band: Medium
Power Rating: 600 W
Medium Frequency: 80–130 kHz
Medium Frequency Beamwidth: 24°–16°
Single or Dual Frequency: CHIRP-Ready Single-Band
Functions: Depth, Temperature
Mounting Style: Tilted Element Thru-Hull
Tilted Element: Yes — 20° tilt
Deadrise Range: 16° to 24°
Max Deadrise: Up to 24°
Material: Stainless Steel
Acoustic Window: Urethane
Hull Material: Compatible with all hull materials
Max Vessel LOA: Up to 8 m (26')
Connector: Raymarine 11-Pin
Display Connector: 11R
Sensor Connector: MMC
Mix and Match Series: 12-Pin CHIRP
Hole Size: Fiberglass/wood 70 mm (2-13/16") | Metal 79 mm (3-1/8")
Cable Length: 10 m (33')
Weight: 1.4 kg (3 lb.)
Max Depth: 274 m (900')
Common Use: Fishing, Commercial Fishing
Country of Origin: USA
