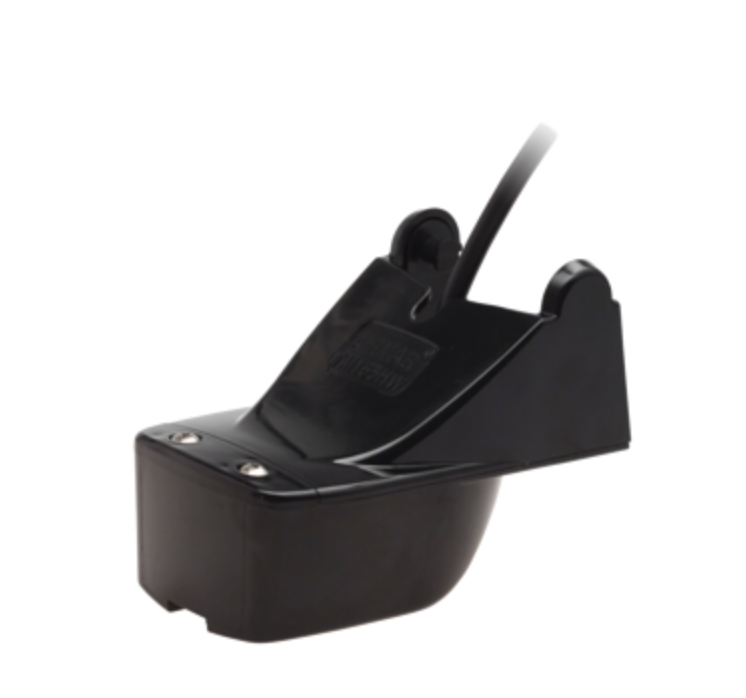

Airmar TM165 High Wide CHIRP, 600W, Raymarine 11-Pin, DT

SKU: TM165C-HW-11R

$869.00 $961.64

Description

Maximise the coverage under your boat with the Airmar TM165HW. Featuring a high-frequency range of 150–250 kHz and a super-wide average beamwidth of 30°, this transom-mounted CHIRP transducer delivers maximum coverage across the frequency band — providing three times the coverage of standard high-frequency CHIRP transducers. High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation, with vast bottom coverage and precise fish detection in the upper water column down to 106 m (350').

The wide-beam format also creates crisper and larger return images on your display, making it ideal for inshore and coastal fishing on planing-hull boats up to 8 m (26').

Available as an OEM connector model or as a Mix and Match™ version (9 m cable with standard connector + 1 m adapter). Ensure you know which connector type your fishfinder requires before ordering.

Features

Depth and fast-response water temperature sensing
600 W power output — max depth 106 m (350')
High Wide frequency: 150–250 kHz | Super-wide 30° average beamwidth
100 kHz of total bandwidth from one transducer
3× the coverage of standard high-frequency CHIRP transducers
Covers the popular 200 kHz fishing frequency plus full bandwidth
Plastic release bracket protects sensor from frontal impact
Chemical and impact-resistant plastic housing
Recommended for planing hulls
Patented Xducer ID® technology

Specifications

Power Rating: 600 W
Frequency: 150–250 kHz (High Wide Band, CHIRP-Ready Single-Band)
Beamwidth: 30° average
Max Depth: 106 m (350')
Functions: Depth, Temperature
Mounting Style: Transom
Transom Angle: 2° to 22°
Housing: Plastic Bracket
Cable Length: 10 m (33')
Connector: Raymarine 11-Pin (11R)
Mix and Match Series: 12-Pin CHIRP
Max Vessel LOA: Up to 8 m (26')
Weight: 0.5 kg (1.1 lb)
Common Use: Fishing, Leisure/Yachting
Country of Origin: USA
