Airmar TM185 Medium CHIRP, 1kW, Raymarine 11-Pin, DT

SKU: TM185C-M-11R

$1,759.00 $1,812.98

Description

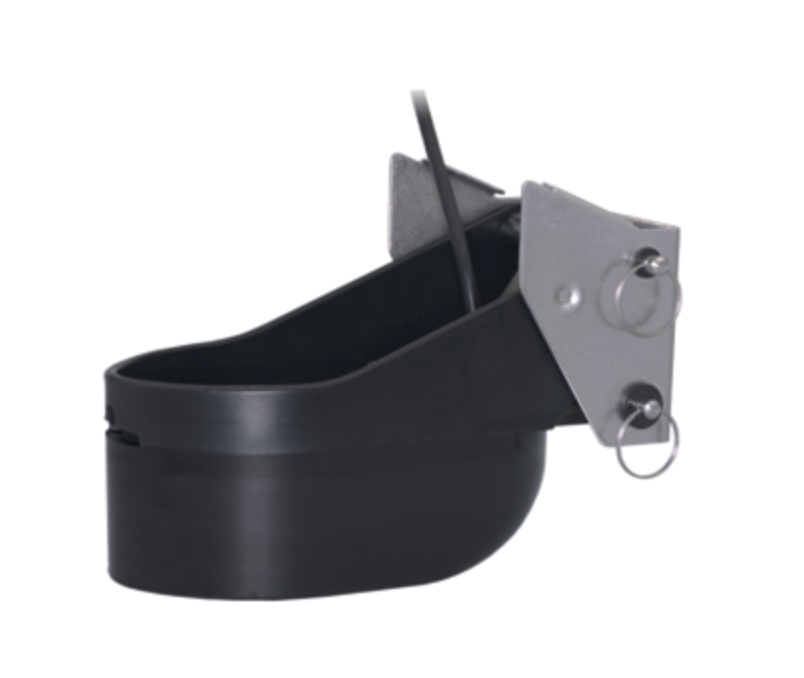

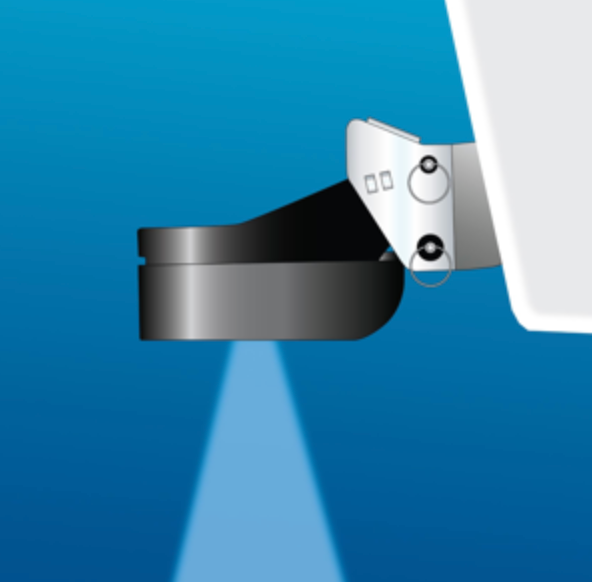

The Airmar TM185M is a transom-mounted, CHIRP-ready transducer designed for offshore fishing and freshwater anglers operating in shallow to mid-range depths. Operating at 85–135 kHz, the medium-frequency band delivers the ideal combination of coverage, extended depth range, and ultra-clear target and structure returns down to 457 m (1,500') — with excellent shallow to mid-depth performance, bottom detail, and fish-target separation.

Featuring Airmar's SEALCAST™ seamless urethane housing and a stainless steel bracket, the TM185M is built for long life in the water and suits outboard or inboard/outboard powered boats up to 10 m (33').

Available as an OEM connector model or as a Mix and Match™ version (9 m cable with standard connector + 1 m adapter). Ensure you know which connector type your fishfinder requires before ordering.

Features

Depth and fast-response water temperature sensing
1 kW power output — max depth 457 m (1,500')
Medium frequency: 85–135 kHz | Beamwidth: 16°–11°
50 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 88 and 107 kHz plus full bandwidth
Stainless steel bracket — suits outboard or inboard/outboard powered boats
SEALCAST™ seamless urethane housing for long-term durability
Compatible with all hull materials
Also available as thru-hull with fairing (B285M), low-profile thru-hull (B175M), and in-hull (M135M) mounts
Patented Xducer ID® technology

Specifications

Power Rating: 1 kW
Frequency: 85–135 kHz (Medium Band, CHIRP-Ready Single-Band)
Beamwidth: 16°–11°
Max Depth: 457 m (1,500')
Functions: Depth, Temperature
Mounting Style: Transom
Transom Angle: 3° to 21°
Housing: Urethane / Stainless Steel Bracket
Hull Compatibility: All hull materials
Cable Length: 10 m (33')
Connector: Raymarine 11-Pin (11R)
Mix and Match Series: 12-Pin CHIRP
Max Vessel LOA: Up to 10 m (33')
Weight: 4.2 kg (9.2 lb)
Common Use: Fishing, Leisure/Yachting
Country of Origin: USA
