Airmar TM260 50/200kHz, 1kW, Raymarine 7-Pin, DT

SKU: TM260-RAY

$2,099.00 $2,207.13

Description

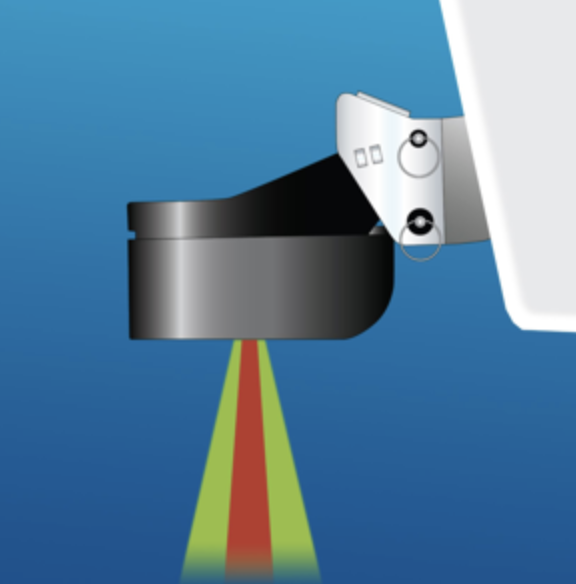

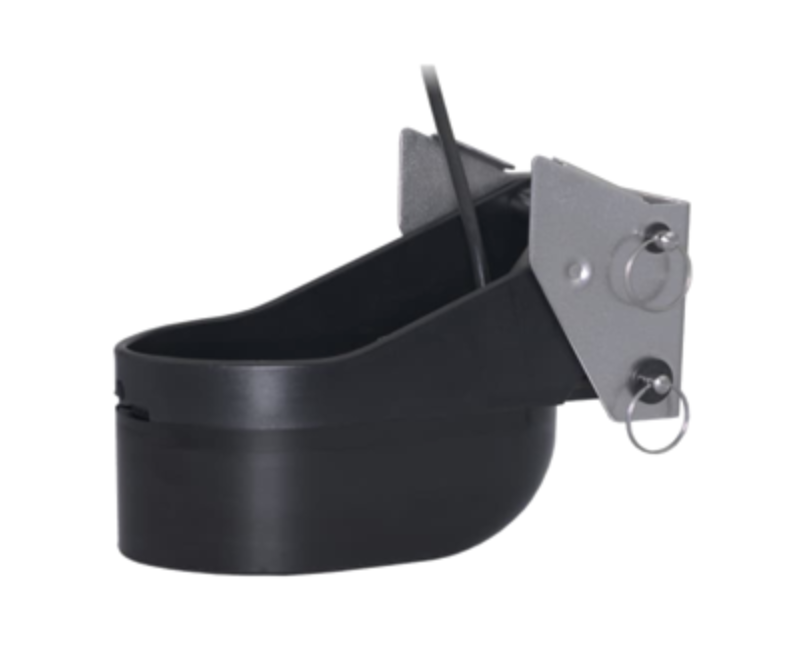

The TM260 is Airmar's legendary 1 kW, 260-family transom mount transducer — a high-performing choice for conventional fishfinders. Operating at 50 and 200 kHz, the narrow 6° beam at 200 kHz delivers excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz wide 19° beam provides broad coverage and outstanding deep-water detection. Fitted with a rugged stainless-steel kick-up bracket that is easy to install and streamlined in profile.

Features

Depth and fast-response water-temperature sensing
1 kW of power
50 kHz: 19° beamwidth, max depth 792 m (2,600')
200 kHz: 6° beamwidth, max depth 305 m (1,000')
Available with or without diplexer for single or dual transmission-line fishfinders
Transom mount — suits outboard or inboard/outboard powered boats
Stainless steel kick-up bracket locks in the up position — won't damage the transom
SEALCAST seamless urethane housing for long life in the water
Also available as bronze thru-hull (B260), stainless steel thru-hull (SS260), and in-hull (M260) mounts
Patented Xducer ID technology

Specifications

Frequency Band: 50/200 kHz
Power Rating: 1 kW
Housing: Urethane / Stainless Bracket
Functions: Depth, Temperature
Mounting Style: Transom
Max Vessel LOA: 10 m (33') and above
Connector: Raymarine 7-Pin
Display Connector: RAY
Sensor Connector: MM1
Mix and Match Series: 9-Pin 1000 Watt
Conventional Beam: 19°/6°
Max Depth: Low 792 m (2,600') | High 305 m (1,000')
Single or Dual Frequency: Conventional Dual Frequency
Transom Angle: Up to 28°
Max Deadrise: Up to 28°
Tilted Element: No
Common Use: Leisure/Yachting, Fishing
Cable Length: 10 m (33')
Weight: 4 kg (8.9 lb.)
Country of Origin: USA
