Airmar TM275 Low-High Wide CHIRP, 1kW, Raymarine 11-Pin, DT

SKU: TM275C-LHW-11R

$3,399.00 $3,564.00

Description

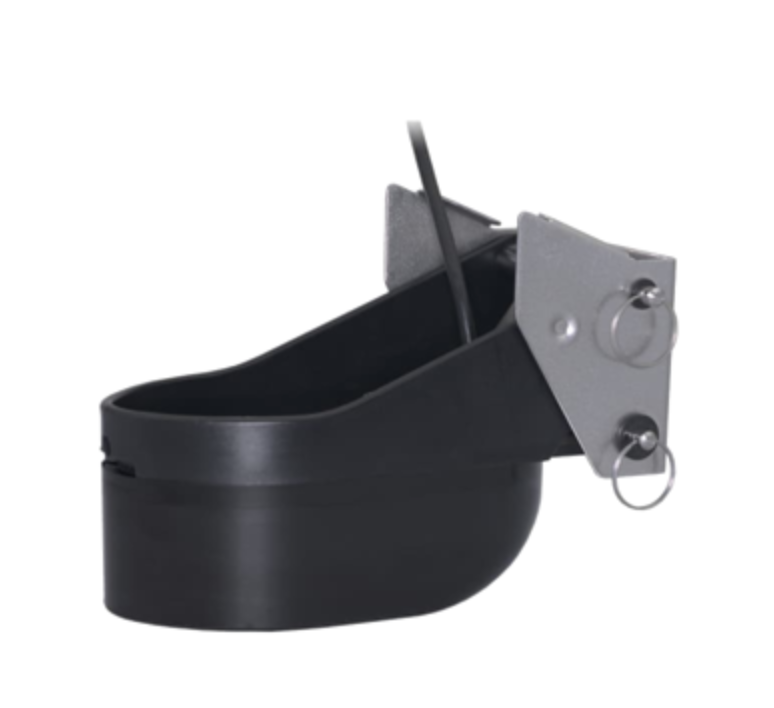

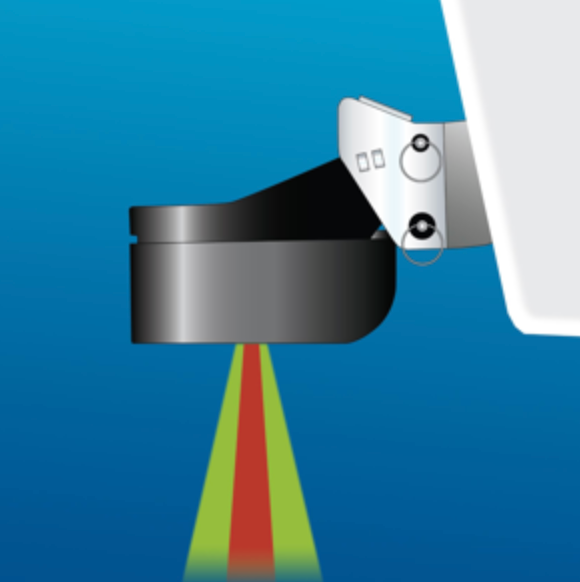

Get more coverage under your boat with Airmar's unique wide-beam, dual-frequency, CHIRP-ready TM275LHW. The high band operates across 150–250 kHz with a fixed 25° beam for superior resolution at all frequencies — delivering twice the coverage and clear fish arches compared to most high-frequency narrow-beam transducers.

The high wide beam is ideal for both inshore and pelagic fishing where resolution and maximum coverage are essential down to 152 m (500'). The low-frequency band and 1 kW of power support excellent deep-water performance down to 914 m (3,000'). Available with an OEM connector for your fishfinder or as a Mix and Match™ version with a standard connector and 1 m adapter cable.

Features

Depth and fast-response water-temperature sensing
1 kW power for great deep-water performance (low frequency)
Low frequency: 42–65 kHz | Beamwidth: 25°–16° | Max depth: 914 m (3,000')
High frequency: 150–250 kHz | Beamwidth: 25° constant | Max depth: 152 m (500')
123 kHz total bandwidth from one transducer
Covers popular fishing frequencies of 50 and 200 kHz plus full bandwidth
Superior shallow-water performance, bottom detail, and fish-target separation
Wide high beam yields more coverage for detecting fish in the upper water column
Stainless steel kick-up bracket locks in the up position — won't damage the transom
SEALCAST seamless urethane housing for long life in the water
Also available as thru-hull (B275LHW) and pocket mount (PM275LHW)
Patented Xducer ID technology

Specifications

Frequency Band: Low-High Wide
Power Rating: 1 kW
Housing: Urethane / Stainless Steel
Functions: Depth, Temperature
Mounting Style: Transom
Max Vessel LOA: 10 m (33') and above
Connector: Raymarine 11-Pin
Display Connector: 11R
Sensor Connector: MMC
Mix and Match Series: 12-Pin CHIRP
High Frequency: 150–250 kHz
High-Wide Beamwidth: 25 degrees
Low Frequency: 42–65 kHz
Low Frequency Beamwidth: 25–16 degrees
Single or Dual Frequency: CHIRP-Ready Dual-Band
Transom Angle: 3 to 21 degrees
Common Use: Leisure/Yachting, Fishing
Tilted Element: No
Cable Length: 10 m (33')
Weight: 4 kg (8.9 lb.)
Country of Origin: USA
Cross Reference: A80318
