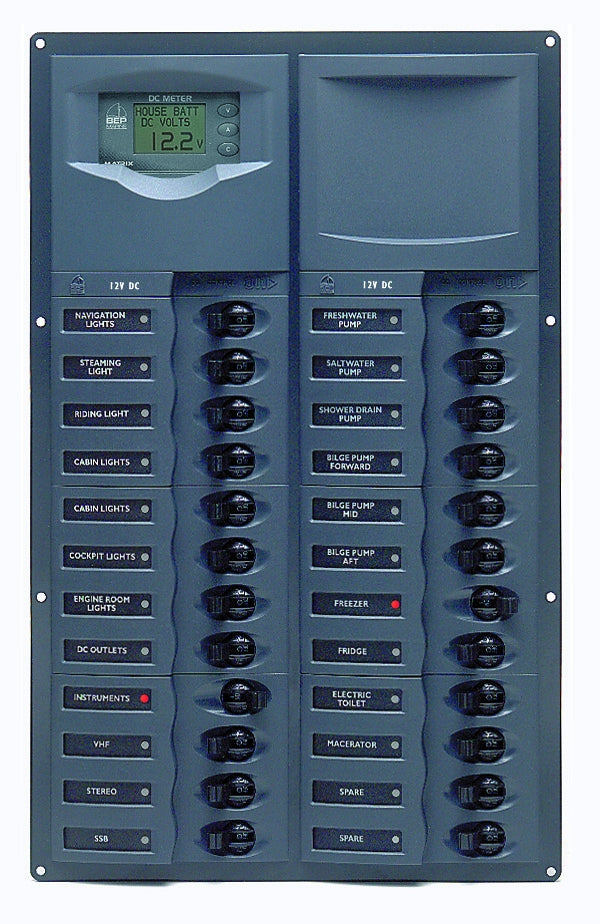

BEP 'CONTOUR' CIRCUIT BREAKER 24 CIRCUIT 239 x 385mm
BEP 'Contour' Circuit Breaker Panels - with Digital Meters
Circuit breaker panels with stylish curved front facia incorporating recesses for circuit breaker toggles preventing them from being switched on accidentally.
Digital panel functions include volts for up to three battery banks and current discharge/charge as well as ampere hours used and remaining for two banks. The digital meter can also be used as a tank monitor.
â€¢ Durable grey powder coated marine grade aluminium base panel
â€¢ Marine quality, magnetic, hydraulic, UL listed trip free breakers
â€¢ Backlit labels supplied, refer page 101
â€¢ Suitable size negative busbar supplied
â€¢ 1x 450A/50mA shunt supplied, refer page 139
â€¢ Red LED indication for circuits â€˜onâ€™
â€¢ Green LED back lighting for meters and labels
â€¢ Double pole configurations available for survey or additional safety
â€¢ DC digital meters - 200 mV sensitivity, 1% accuracy including alarms. 12mm high numerals
With the flexibility of the 'Contour' four way plastic modules, BEP can build panels to custom requirements if requested.
Drop resistors required for LEDs in 24 volt installations.
113462Â SuitsÂ 113147 & 113150
113463Â SuitsÂ 113158
113464Â SuitsÂ 113166
113465Â SuitsÂ 113174 & 113194
113467Â SuitsÂ 113182
