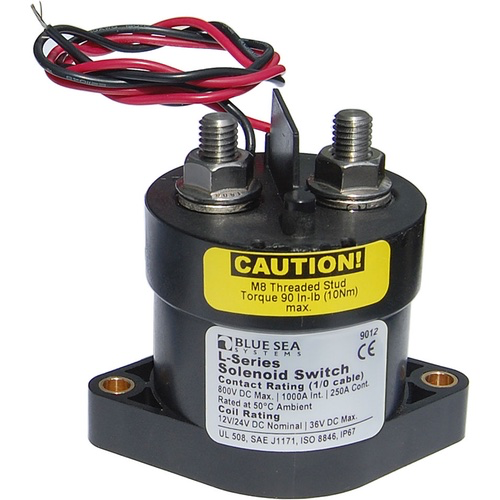

L Solenoid 12/24V DC 250A

SKU: BS-9012B

$383.67 $500.95

Description

Hermetically sealed contacts / vaporproof

Ignition protected - safe for installation aboard gasoline powered boats

Activated by an ON-OFF switch mounted anywhere

integrated coil control minimizes heating and amperage draw

450 Amp Class

Designed for 12 or 24 Volt systems

Ignition protected -- safe for installation aboard gasoline-powered boats

Activated by a low amperage ON-OFF switch mounted anywhere

Specifications:
Control Circuit Connection: 20 AWG Tinned Wire
Nominal Voltage: 12V DC 24V DC
Coil Function: Normally Open
Mounting: #10
Operating Amperage Current: 3.6A when changing state
Amperage Operating Current continuous: 0.13A @ 12 V 0.07A @ 24 V
Terminal Stud Torque: 90 in-lb (10.17 Nm)
Continuous Rating: 250A 300A 400A 450A
Intermittent Rating: 275A (5 min) 400A (5 min) 500A (5 min) 600A (5 min)
Cranking Rating 30 sec: 1,000A 1000A DC
Contact Form: SPST-NO
Input Voltage: 9-36V DC
Inrush Rating: 0.25 sec (10 repeats): 2000A
Switching Cycles: 1,000,000
Terminal Stud: Serrated Flange Nut
Terminal Stud Length: 0.66in (16.76 mm)
Terminal Stud Size: 5/16" (M8)
Weight: 1.00lb (0.45 kg)
