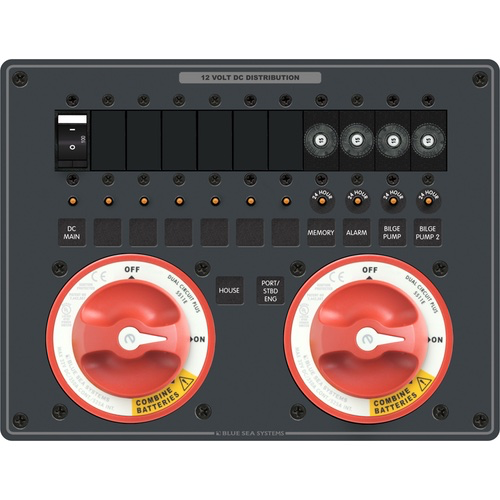

Triple Battery Bank Management Panel

• Includes [2] e-Series, Dual Circuit Plus Battery Switches PN 5511e
• Designed for single engine configurations
• Provides high ampere load protection
• Isolates the Engine circuit from the House circuit
• Allows independent battery control
• Provides 24-hour circuit protection
• Allows emergency cross connect between isolated battery banks
• Protects electronics from sags and spikes caused by engine cranking
• The addition of two Automatic Charging Relays (ACR) automates charging three battery banks
• Ignition protected - Safe for installation aboard gasoline-powered boats
• Includes 4218 - Square Format Labels and 4140 - 24 Hour Round Labels

  Specifications:
  Positions: 11
  Nominal Voltage: 12V DC
  Maximum Voltage: 24V DC
  Continuous Rating: 350A
  Intermittent Rating: 525A (5 min)
  Cranking Rating 10 sec: 1000A
  Cranking Rating 1 min: 750A
  Height: 8.00in (203.2 mm)
  Width: 10.50in (266.7 mm)
  Depth: 3.50in (88.9 mm)
  Weight: 4.42lb (2 kg)
