CZone

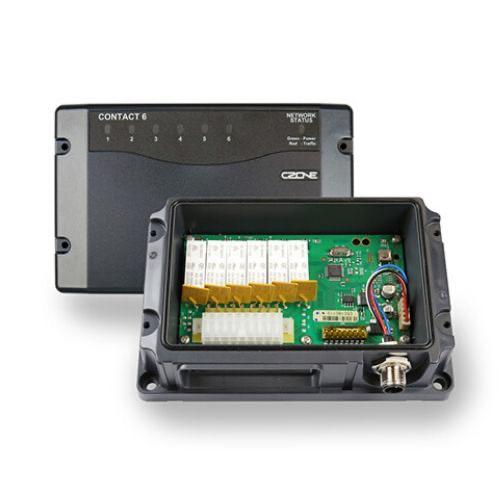

Contact 6

SKU: 112817
$369.53 $379.00
Color
Size
This product is unavailable

Description
The Contact 6 is a digital control and monitoring module that can be networked with other CZone products or a stand alone. The Contact 6 has six independent channels that are positively or negatively switched and is ideal for smaller marine applications or recreational and specialty vehicles.
  • Entry level digital switching module for Marine and RV applications
  • Stand alone or networked with other CZone products
  • Compatible with CZone integrated Multi Function Displays (MFDs)
  • Six independent relay channels with positive and negative switching
  • Uses proven CZone technology
  • Internal auto-resetting PTC fuses (112818,112819 Only)
  • Electronic relay bypass switch
  • Status LEDs/fault codes for all channels
  • Low current draw – 35mA
  • Cost effective Amp connectors
  • IPX5 ingress protection
  • NMEA2000 compliant
    Other Details:
    BLA Code 112817 112818
    Output Channels 6 x Relay
    Output Ratings 7.5A max per channel
    LED Status indication Yes
    Parallel Yes
    Dimming No
    Current Sensing No
    Circuit Protection External
    Overcurrent Alarm No
    Circuit Bypass Yes (electronic)
    Connector Amp 18 Way Connector
    Max Wire Size 16AWG (1mm²)
    Maximum Current 30A Continuous
    Power Consumption 35mA (standby)
    Voltage 12/24V 9-16V
    Ingress Protection IPx5
    Communication NMEA 2000
    Operating Temp -15 °C to +55 °C (5 °F to 131 °F)
    Certification CE, NMEA
