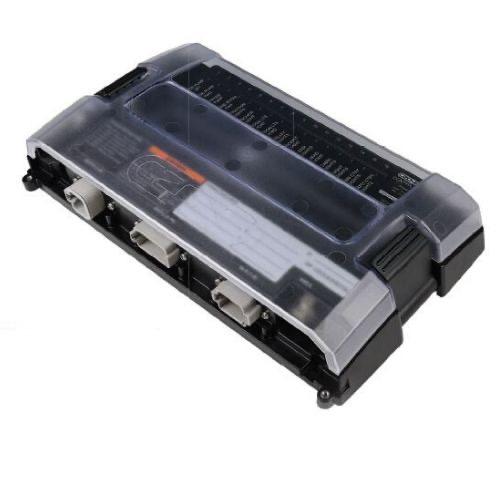

Control 1

SKU: 112918

$1,949.03 $1,999.00

Description

The Control 1 combines multiple input and output devices in to one module, minimizing installation, interconnections and footprint. The Control 1 incorporates many of the core features and benefits of the fully featured Combination Output Interface (COI), but has been re-engineered to offer improved cost-per-channel value. The Control 1 features the same rugged design as the fully featured COI with IPX5 water ingress protection and complete mechanical fuse and bypass on all circuits as required by ABYC/CE. Industry standard Deutsch connectors provide ""plug and play"" installation.

Complete CZone control and monitoring system in a single box

Modular design provides system options for wide range of vessels & RV’s

Compatible with marine Multi Function Displays

Equipped with advanced core CZone feature set

Competitive price point for cost sensitive applications

ABYC compliant ATC fusing and mechanical bypass for redundancy

PWM light dimming capability & smooth start

Monitor tank levels, battery volts, temperature and pressure using industry standard sensors

‘Bilge Pump running detection’ allows pump control and monitoring from a single wire

Status LED’s for all outputs, DC supply & NMEA2000

Additional volt monitoring on main DC connection and N2K

In-built load shedding allows non-necessary loads to be turned off to preserve battery life

USB port allows full system firmware & config updates (no PC or adapters required)
Other Details:

BLA Code	112918
Communication protocol	NMEA 2000
Channels	16
Output Channels High	4x 25A
Output Channels Low	12x 10A (dimmable- PWM)
Analogue Inputs	8 (positive or negative switching, 0-32V 4-20mA, 0-1000ohm
Additional monitoring	2 Voltage Sensors (on main positive stud and NMEA 2000 Powe
Circuit protection	ATC Fuse with Fuse Tripped & fuse in bypass alarms
NMEA 2000 PGN Output Fluid Level	Pressure, Temperature, Battery Fluid level
Max. continuous current	150A
Connectors	deutsch
Power supply	M8 (5/16") stud positive, M6 (1/4") stud negative
Voltage	9-32V ( with Power available LED and Voltage Monitoring)
Circuit Bypass	Mechanical Protection/ Bypass all output channels
Bilge Pump Circuits	4 high current channels: integrated manual control and ‘pump running’ detection
Protection degree	IPx5 (mounted at 0° +/-90°)
Dimensions, H x W x D (incl. optional cable cover)	13.3" x 9.3" x 2.4" 338 x 235 x 62 mm
