CZone COI with Connectors

SKU: 80-911-0119-00

$2,618.85 $2,686.00

Description

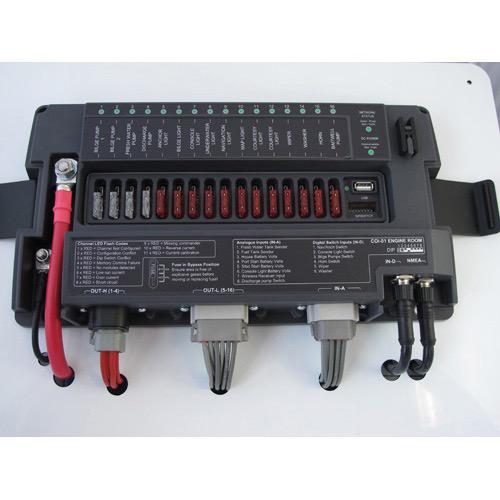

The Combination Output Interface (COI) combines multiple input and output devices in to one module, providing a high density 30 channel module which minimizes installation, interconnections and footprint, while delivering best value per circuit. The COI features the same proven, rugged CZone design including IPX5 water ingress protection and complete mechanical fuse plus bypass on all circuits as required by ABYC/CE. Industry standard Deutsch connectors provide "plug and play" installation.

16 x Output Channels (4 x 25A, 12 x 10A Dimmable)
8 x Analogue Inputs: Positive or Negative Switching, 0-32Volt, 0-1000 ohms resistance and 4-20mA Current
6 x Digital Inputs w Systems On/Backlighting via breakout harness
150A Maximum current
Programmable software 'fuse' sizes, plus backup mechanical fuse and bypass on all circuits as required by ABYC/CE

Specifications:
Each in Package Height (in): 5.000
Each in Package Width (in): 14.000
Each in Package Length/Depth (in): 8.500
Each in Package Weight (oz): 72.000
