VETUS WATERLOCK/MUFFLER TYPE NLP (Various Sizes)

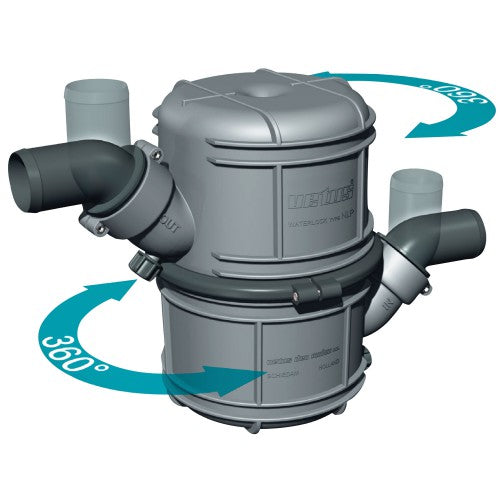

The NLP Waterlocks/Mufflers are of dual stage construction, featuring upper and lower chambers with a horizontal partition plate and a riser tube through the centre. Compared with single stage Waterlocks using only one chamber, these NLP Waterlocks offer superior silencing of exhaust noise with minimal back pressure. Since the top chamber may be rotated through 360° and both the inlet and the outlet connectors can rotate through 360°, installation of the exhaust assembly even in confined engine spaces is greatly simplified.
The rotatable inlet of the Waterlock is connected to the engine exhaust manifold, using VETUS exhaust hose. The exhaust gases, mixed with cooling water are forced from the lower chamber into the upper one, via the central riser tube and then through the (also rotatable) outlet connector at the top. This outlet connector is coupled to the transom connector, again by means of VETUS exhaust hose.
Provided with drain plugs (for winter storage). Straps to secure the Waterlock to the boat are supplied as standard.

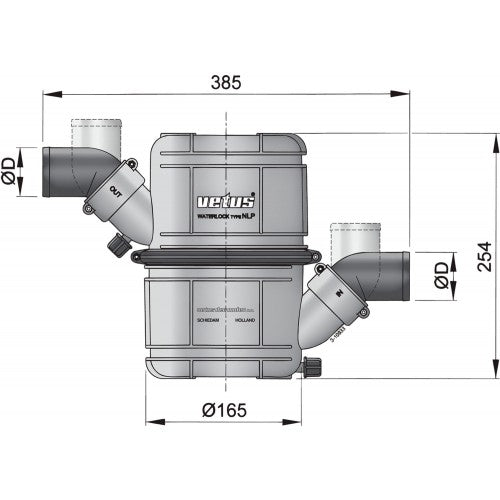

Hose Sizes: 40/45/50 have 4.5 Litre Capacity

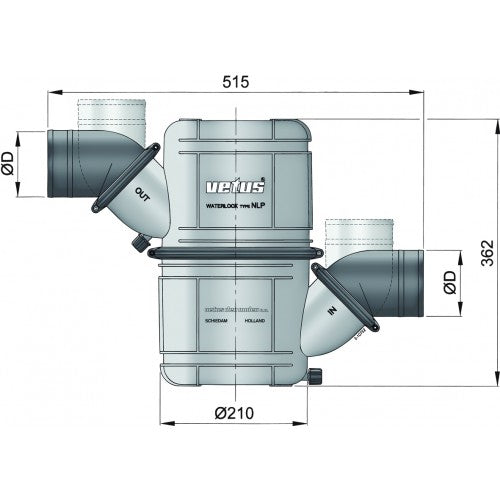

Hose Sizes: 60/75/90 have 10 Litre Capacity (Picture showing larger dimensions fits these hose sizes and hence the price increase)
Note; There is a NLP50S (50mm hose fitting) in a 10 Litre Capacity. (listed seperate)
40mm, 45mm, 51mm, 60mm, 75mm, 90mm
