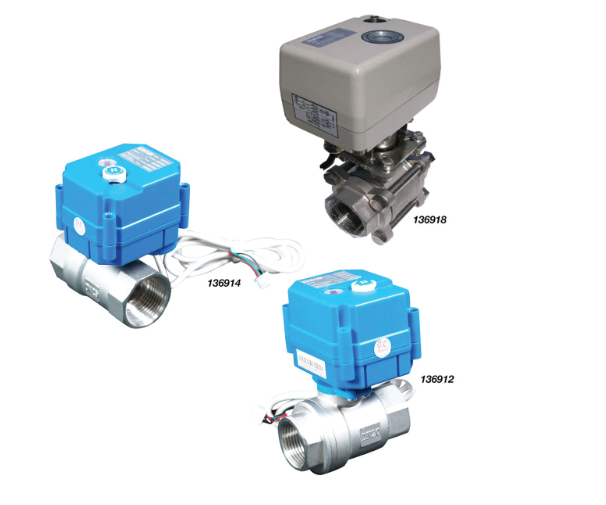

Electrical Actuated Ball Valves

SKU: 136912
$239.95 $279.90

BSP thread size
12v or 24 v
Description

A range of convenient electric actuators combined with 304 grade stainless steel two way ball valves to provide remote operation allowing the ball valve to be opened or closed electronically from a single position.


The electric actuators are operated via a standard three-position electrical switch (not supplied). For added safety a simple yet efficient built in manual override function is standard for use in the event of a power failure (valve accessibility required). An easy to view ball position window is recessed into the top housing ensuring total valve closure.


For ¾" and 1" valves the actuator mechanisms are housed in a tough heavy duty polyamide shell, providing excellent corrosion resistance and protection against accidental knocks. The 1½" actuator mechanism is enclosed in a heavy-duty die-cast aluminium housing providing excellent protection. All actuators are fully sealed to IP67 specifications to prevent water ingress. With a quick open and closing time of less than 12 seconds per direction these actuators have been manufactured with a long service life in mind, typically 70,000 to 100,000 life cycles.



Other Details:

BLA Code Thread BSP Volts Max Torque
Nm
Operating
time in Sec
Max Power
Watts
Max Pressure
Mpa
136912 3⁄4" 12

2


5-7


4


1.6
136913 3⁄4" 24
136914 1" 12
136915 1" 24
136918 11⁄2" 12 20 10-12 40 2.5
