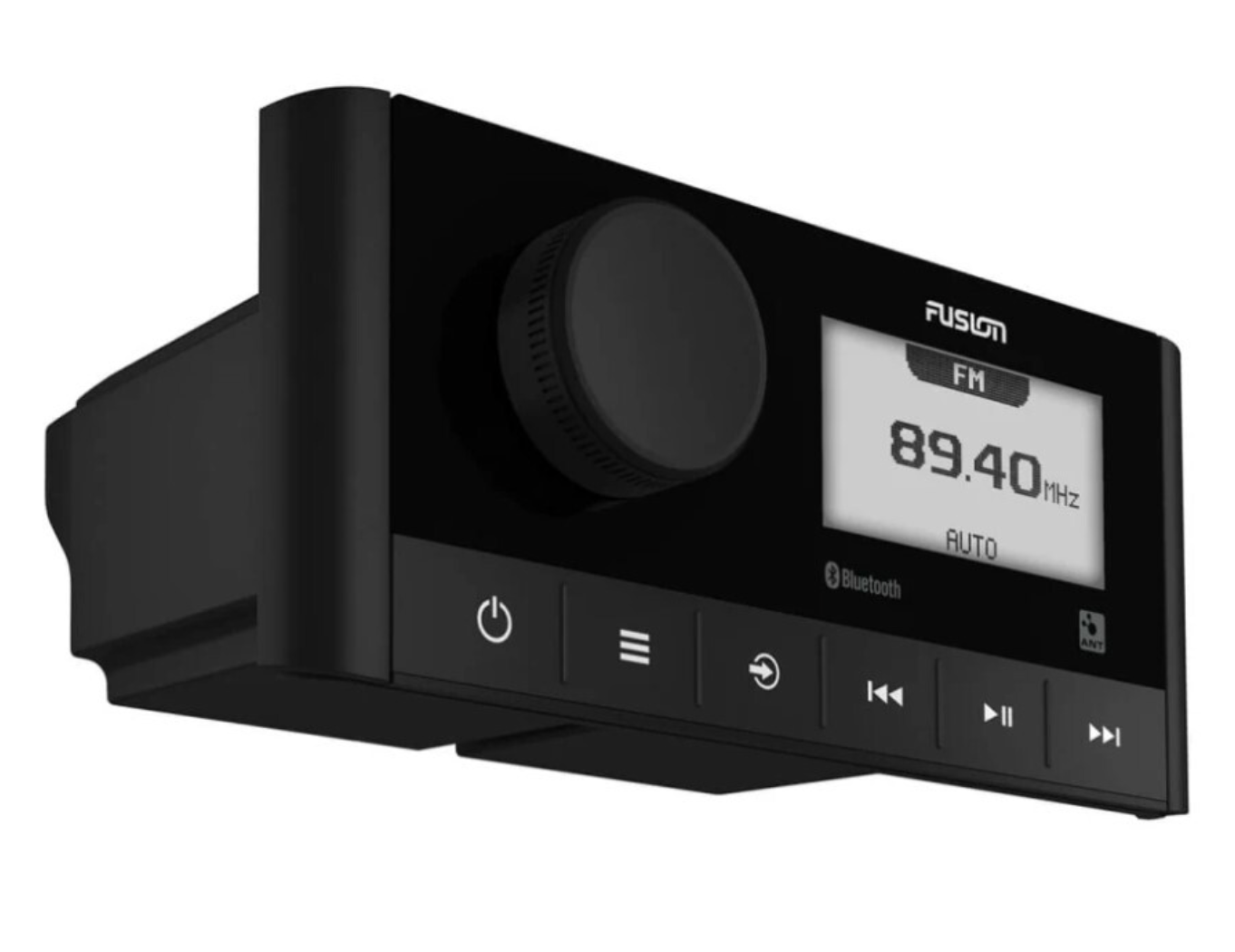

Garmin Fusion MS-RA60 Marine Stereo

Built in Bluetooth

FUSION'S brand new stereo system is their most compact yet. The MS-RA60 system is built specifically for the harshness of maritime use, and the compact low profile is perfect in environments where space is limited. The built in Bluetooth means no wires are necessary to stream favourite tracks from your compatible device. The low footprint, shallow-mount case design and smart engineering allows for easy installation on small boats, tenders and personal watercraft, bringing the highest quality sound to vessels that previously lacked the space to for a full feature audio system.

IPX6 AND IPX7 INGRESS PROTECTION

Designed and engineered for the harsh marine environment, the MS-RA60 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS

Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

RETROFITTABLE

The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.

MULTIPLE SOURCE OPTIONS

Take advantage of the multiple source options available, including Bluetooth technology, DAB+ radio, AM/FM radio and AUX connection.

BUILT-IN DAB TUNER

The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported.

Features:

• Physical dimensions (H x W x D): 68 x 156.90 x 103.20 mm (2.68? x 6.18? x 4.06?)
• Weight: 11.10 oz (316 g)
• Water rating: IPX6 and IPX7 (front panel only, when properly installed)
• Power input: 10.80-16 VDC
• Operating temperature range: 32° to 122° F (0° to 50° C)
• Current (max.): 15 A
• Bluetooth wireless range: Up to 30 ft (10 m)
• ANT wireless range: Up to 10 ft (3 m)
• Wireless frequencies/protocols: Bluetooth 2.40 GHz @ 12 dBm nominal
• Compass-safe distance: 5.90? (150 mm)

Stereo features:

• Display: 2.30? perimeter bonded monochrome dot matrix LCD
• Built-in amplifier: Class-D (minimum 4 ohm impedance)
• Peak power: 180 W
• Rated power output (4 Ohm): 22 W rms x 4 @ 14.40 V input, 4 ohm, 10 % THD
• Fusion-Link™ control: Yes (with compatible Apple and Android devices)
• Fusion-Link Lite control: Yes (with compatible Garmin watch)
• Multi-Zone™ technology: 2 zones
• Bluetooth wireless technology: Yes
• ANT wireless technology: Yes
• DAB+: Yes (DAB tuner built in)
• Multi-language interface: Dutch/English/French/German/Italian/Spanish
• Software updates: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app
• Warranty: 1 year

Sources:

• AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)

Connectivity:

• Auxiliary input: One RCA input (AUX)
• AM/FM radio: One Motorola antenna connector port
• Speaker: 4 x speaker connections (2 amplified zones)
• RCA Pre-out (left, right and subwoofer): 1 zone (requires external amplification)
• Line out: Zone 1: L + R (requires external amplification)
• Subwoofer out: Zone 1 (requires external amplification)
