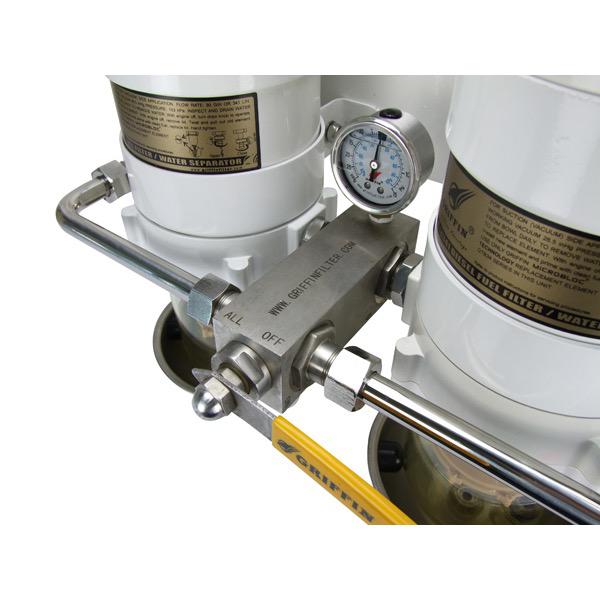

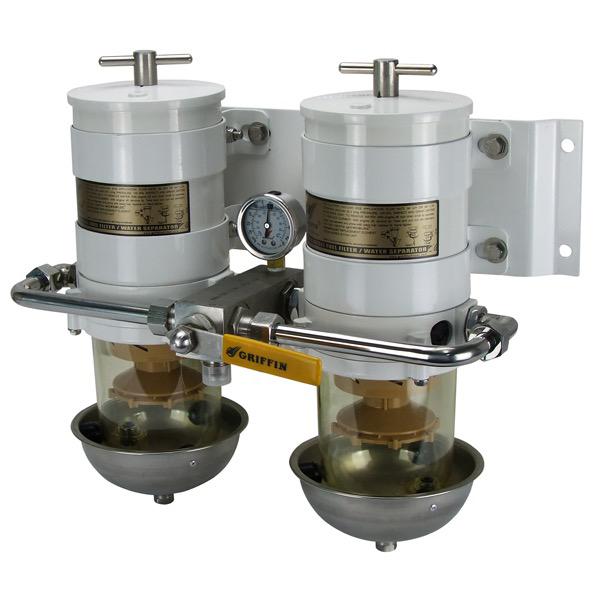

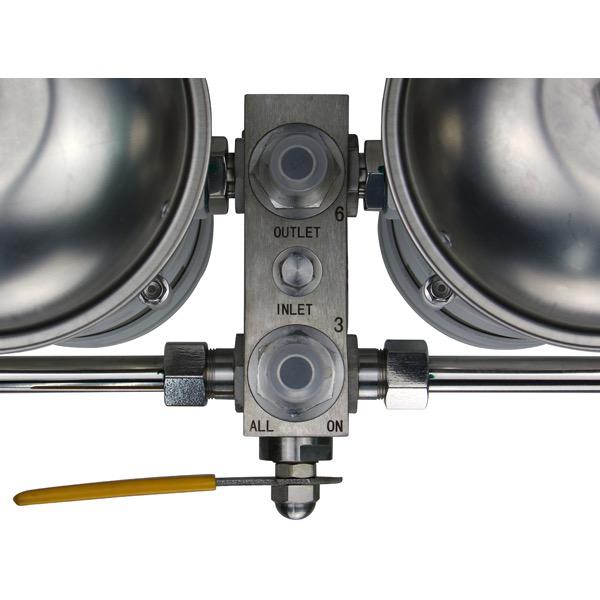

Griffin GTB341DM Turbine Diesel Filter Double Manifold

SKU: 374122

$1,959.00 $2,417.60

Description

Provides unsurpassed fuel filtration and water separation and is a direct replacement or substitution for the Racor 75/900MAX.

Uses genuine MICROBLOC® replacement elements.

MICROBLOC® Multigrade Filtration Media Elements have tested to be 99.8% effective in separating water from diesel and biodiesel fuels and can remove solid contaminants as small as 2 microns in size, also in 10 and 30 micron sizes.

Comes standard with a 10 micron GRIFFIN® MICROBLOC® element.

Clear bowl made from GRIFFIN® proprietary virgin USA plastic.

NOTE: Hose fittings are sold separately.

Other Details:

Specifications	GTB341DM
Port Size	7/8-14" UNF
Flow Rate (LPH / GPH)	681 / 180
Service Clearance (mm)	127
Dimensions H x W x D (mm)	412 x 476 x 279
Temperature (°C)	-20˚C / +121˚C
Clean Pressure Drop (kPa)	11.7
Max. Operating Pressure (kPa)	103
Cross Ref.	75/900MAX / G900DMS4-MA
Micron Elements	374124 / 374125 / 374126
Clear Bowl for Gasoline Use	374138
Heat Deflector Shield	PHDS36MA
Net Weight (kg)	10.6
